Upgrading or scaling botanical and Traditional Chinese Medicine (TCM) extraction requires crucial decisions. Manufacturers must continuously balance solvent efficiency, active compound preservation, and strict regulatory compliance. Unfortunately, generic processing equipment often looks great on paper but falls short during actual operations. These standard systems frequently fail when handling dense, fibrous botanical matrices in real-world environments. The gap between lab-scale promises and production-scale realities causes significant bottlenecks, leading to ruined batches and wasted labor.
This guide provides a structured, engineering-focused framework to solve these exact challenges. We will help you evaluate, shortlist, and procure commercial extraction equipment confidently. You will discover exactly how to guarantee repeatable yields while avoiding common setup pitfalls. Ultimately, you will learn how to integrate these heavy-duty systems smoothly into your existing facility architecture.
To build a reliable facility, you must first understand your raw materials. You cannot use generic chemical reactors for complex organic matrices. They simply cannot handle the physical demands of natural plants.
Botanical materials behave unpredictably under heat and pressure. TCM roots, barks, and whole-plant botanicals possess distinct physical densities. They are highly viscous and notably fibrous. These traits directly determine your necessary agitator torque. They also dictate the required tank geometry. For example, processing dense roots requires a different height-to-diameter ratio than processing light leaves. If you use the wrong geometry, herbs will float or pack tightly at the bottom. This packing prevents solvent penetration. Furthermore, processing items like Radix Astragali releases starches. These starches thicken the fluid rapidly. If your motor lacks torque, the agitator stalls entirely, ruining the batch.
Best Practice: Always test the bulk density of your heaviest botanical mixture. Use this data to specify a heavy-duty agitator motor.
Your equipment must align seamlessly with your chosen chemistry. Facilities typically use water-based decoction or ethanol extraction. Some advanced processes require multi-solvent percolation. Each solvent demands specific seal materials and pressure ratings. Ethanol systems require explosion-proof (EX) motors and sealed vapor environments. Water decoction often needs higher heating capacities. You must ensure your system design supports both primary and secondary extraction methods safely.
Many buyers miscalculate their true working volume. You must factor in specific solvent-to-herb ratios. Maceration times and turnaround intervals also consume valuable production hours. A 1,000-liter tank does not yield 1,000 liters of active product. Foaming and vapor expansion require at least 20% to 30% empty headspace.
Common Mistake: Failing to account for loading and unloading times. Always calculate your daily throughput based on full cycle times, not just active boiling minutes.
Procuring a commercial stainless steel extractor requires deep technical scrutiny. You must look far beyond basic liquid capacities.
Temperature precision prevents the thermal degradation of sensitive active pharmaceutical ingredients (APIs). Engineers evaluate two primary jacket designs. Dimple jackets provide excellent heat transfer for low-pressure steam or chilled water. Half-pipe coil jackets handle high-pressure heating fluids much better. They distribute temperatures evenly across the vessel walls, eliminating dangerous hot spots.
Here is a structural chart comparing heating jacket options:
| Jacket Design | Best Suited For | Pressure Tolerance | Heat Transfer Uniformity |
|---|---|---|---|
| Dimple Jacket | Low-pressure steam, chilled water | Moderate | Excellent |
| Half-Pipe Coil | Thermal oil, high-pressure steam | High | Very Good |
| Conventional (Full) | Small vessels, atmospheric heating | Low | Fair |
You must select the correct impeller type. Standard options include anchor, paddle, or custom scraping blades. Scraping blades actively wipe the inner walls. They prevent sticky resins from carbonizing. Burned resins ruin product flavor and create a thermal barrier. Anchor agitators sweep the bottom curve effectively. Your goal is ensuring uniform mass transfer. However, you must achieve this without destroying the delicate botanical matrix. Pulverizing herbs creates ultra-fine particulates. These fine particles will clog your downstream filters instantly.

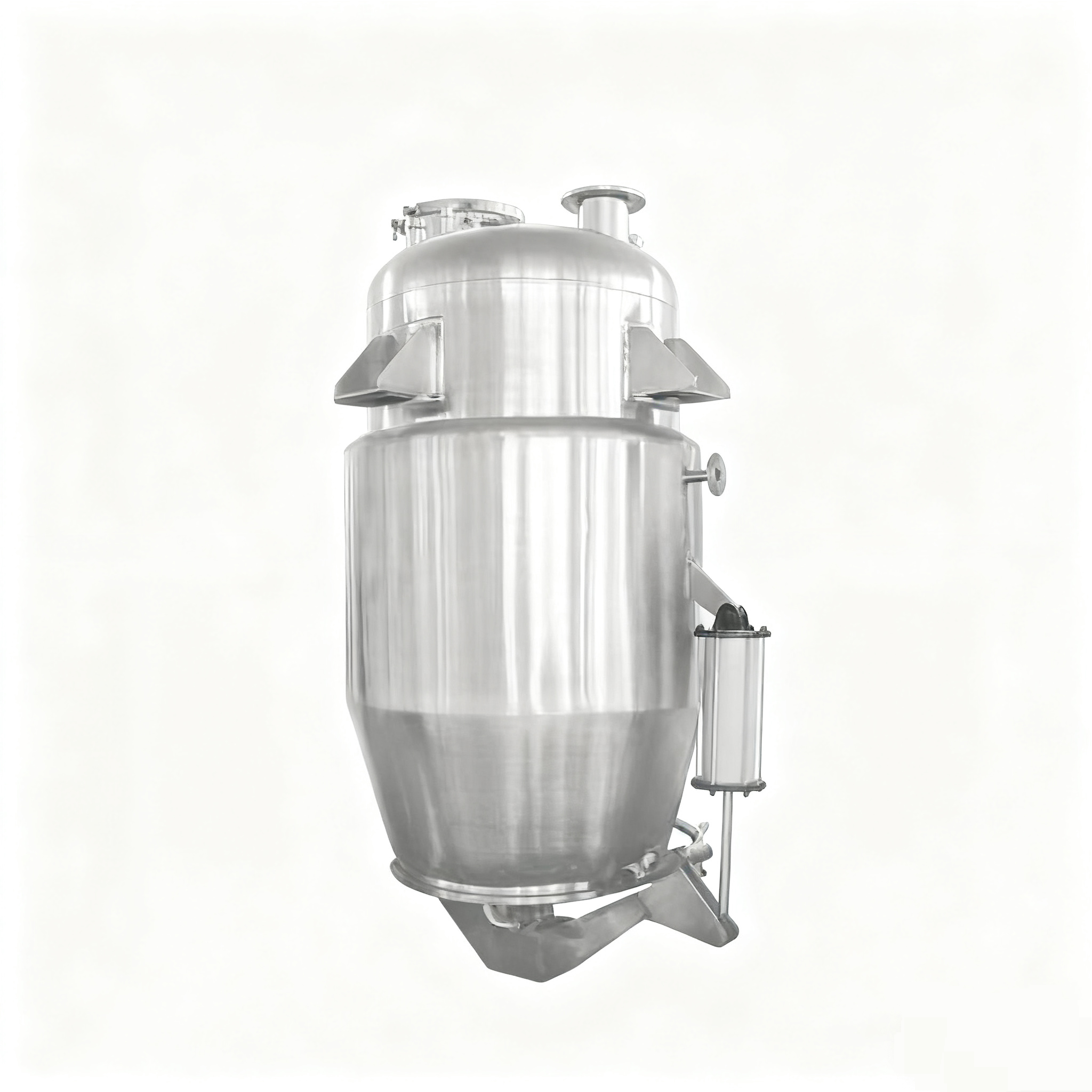

Slag refers to the spent biomass left behind after processing. Analyzing bottom-discharge valve designs is vital. Pneumatic slag doors minimize grueling manual labor. They also reduce batch-to-batch cross-contamination risks significantly. A large, automated bottom door allows rapid dumping of wet, heavy roots. Residual liquid draining mechanisms recover trapped solvents safely. This crucial step improves overall yield percentages.
Assess the internal screen meshes closely. A robust stainless steel extraction tank incorporates continuous filtration loops. Wedge wire screens resist blinding much better than woven meshes. Proper internal filtration prevents pipeline blockages downstream. It guarantees a clean fluid handoff to your secondary processing stages.
Equipment isolation creates terrible inefficiencies. You must design a unified, interconnected processing suite.
Evaluating the extraction unit and the concentrator as a unified system is highly beneficial. A closed-loop architecture captures evaporating solvents continuously. It routes them directly into a recovery phase. This design reduces solvent loss drastically. It also lowers total energy consumption. You recycle heat generated during evaporation straight back into the main system.
Many botanical compounds are heat-labile. High temperatures destroy these valuable molecules rapidly. Pairing vacuum concentration and low-temperature extraction solves this problem. A vacuum lowers the boiling point of your solvent. A standard water ring vacuum pump pulls the internal pressure down. At -0.08 MPa, water boils at roughly 60 degrees Celsius. This dramatic drop preserves fragile flavonoids. It protects essential oils from evaporating away into the atmosphere.
Fluid transfer between units requires precise engineering. You must ensure sanitary piping connections exist throughout the facility. Flow meters and pump specifications must match your exact transfer rates.
Follow these sequential steps for a flawless automation handoff:
Regulatory agencies heavily scrutinize botanical manufacturing facilities. You must maintain strict, verifiable sanitary conditions.
Mandating the correct steel grade is non-negotiable. Specify 316L stainless steel for all wetted parts. You can use standard 304 stainless steel for structural components like legs or outer cladding. The interior surface finish matters immensely. Require mechanical polishing to a roughness average (Ra) of ≤ 0.4 µm. Electropolishing provides an even smoother, mirror-like finish. This physical smoothness prevents microbial buildup and makes cleaning highly effective.
Manual cleaning is slow and dangerous. Implement an automated CIP or SIP architecture immediately. You must validate the placement and coverage of internal spray balls. Rotating spray balls offer better kinetic cleaning energy than static ones. Inspect the spray ball mapping using riboflavin coverage tests. You coat the interior using a UV-fluorescent dye. After a single CIP cycle runs, you inspect the dark tank using a UV light. Any glowing spots reveal dangerous blind spots. You must eliminate all dead legs within the tank and valve assemblies. Trapped fluids breed dangerous bacteria.
Never buy uncertified equipment. Ensure the manufacturer provides complete material test reports (MTRs). These reports prove the steel grade is authentic. Require ASME or CE pressure vessel certifications for heated or vacuum-rated tanks. Finally, request GMP-compliant documentation packages. These must include Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) templates.
Choosing a reliable supplier minimizes installation headaches. Look far beyond the initial purchase price.
Assess the supplier's engineering capability thoroughly. They must adapt standard designs to fit your specific facility constraints. For example, older buildings often have strict ceiling height limits. The vendor might need to design a wider, shorter tank. They must also match your existing boiler capacities. If your steam generator is small, the heating jacket must reflect that exact limit.
You must evaluate overseas manufacturers securely. Focus closely on their past installation references. Ask for case studies from similar botanical producers. Check their spare parts availability. Request a live video tour of their fabrication floor. Look for dedicated polishing rooms. True sanitary vessels are never polished next to carbon steel welding stations. Cross-contamination causes microscopic rust spots on brand-new equipment. Communication transparency is a massive indicator of reliability. If they dodge technical questions, walk away immediately.
Never skip testing protocols. You must define exact performance metrics beforehand. A Factory Acceptance Test (FAT) occurs at the vendor's facility. A Site Acceptance Test (SAT) happens after installation at your plant.
Here is a structured breakdown of critical testing phases:
| Test Category | FAT Objective (At Factory) | SAT Objective (At Your Site) |
|---|---|---|
| Pressure & Vacuum | Verify jacket holds specified PSI without leaking. | Ensure facility utility connections hold pressure. |
| Thermal Precision | Confirm heating valves open and close accurately. | Validate temperature hold times using live steam. |
| Automation & Sequences | Run dry sequences on the PLC control panel. | Test automated slag discharge using actual wet material. |
Procuring commercial botanical processing systems is a complex engineering task. You must prioritize quality and integration to succeed.
Here are the core takeaways and your next steps:
Your immediate next action is compiling a detailed User Requirement Specification (URS). Gather your procurement and engineering teams today. Outline your exact throughput needs, solvent types, and facility constraints. Send this comprehensive URS to manufacturers before requesting any official quotes. This vital step ensures you receive accurate, comparable proposals.
A: A high-quality vessel built from 316L stainless steel easily lasts 15 to 20 years. Proper maintenance is crucial. You must perform regular passivations. Inspecting vessel jackets, replacing valve seals, and servicing agitator motors prevents premature equipment failure. Facilities ignoring routine cleaning procedures often face severe corrosion much sooner.
A: Automated pneumatic discharge doors eliminate hours of strenuous manual labor. Workers safely evacuate dense, wet biomass in minutes rather than hours. This rapid turnaround significantly increases the total batches you process daily. It also minimizes worker exposure to volatile solvents and dangerous steam clouds.
A: Yes, provided the system is engineered specifically for dual use. Ethanol extraction requires explosion-proof motors, sealed vapor loops, and lower temperature set points. Water decoction demands higher heat capacities. You must specify these dual requirements early in your initial design phase to ensure compliant operations.
A: Custom systems typically require 12 to 20 weeks from initial design approval to final delivery. Complex automated setups or exceptionally large capacities push this timeline longer. You should always factor in an additional two to four weeks for rigorous factory testing, international shipping logistics, and site installation.
