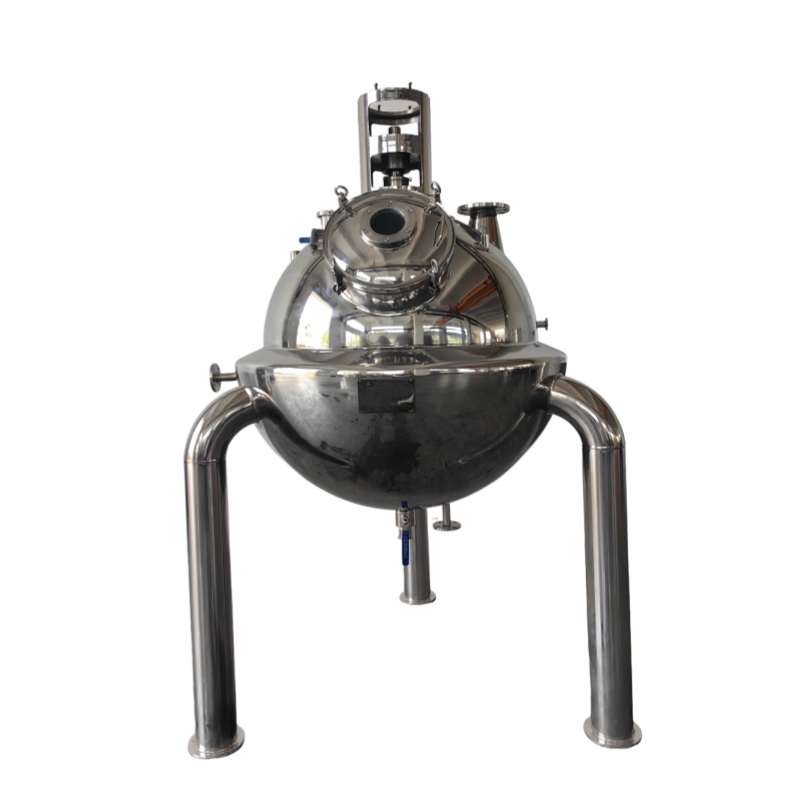

Vacuum Spherical Concentrator for Pharma

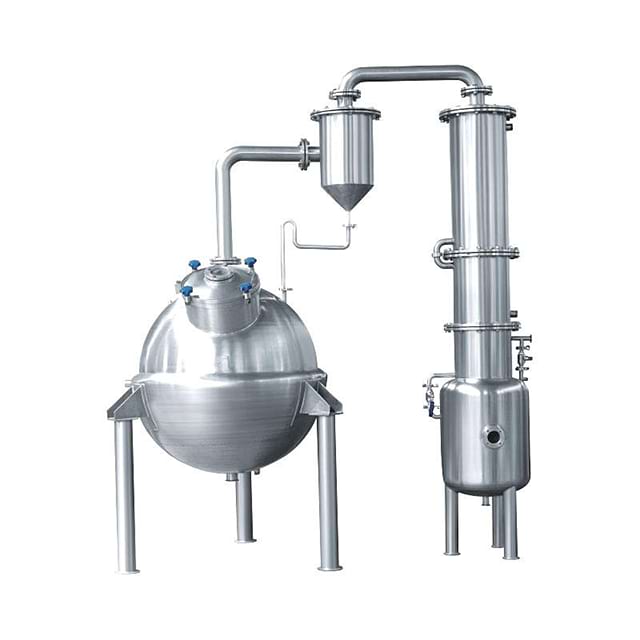

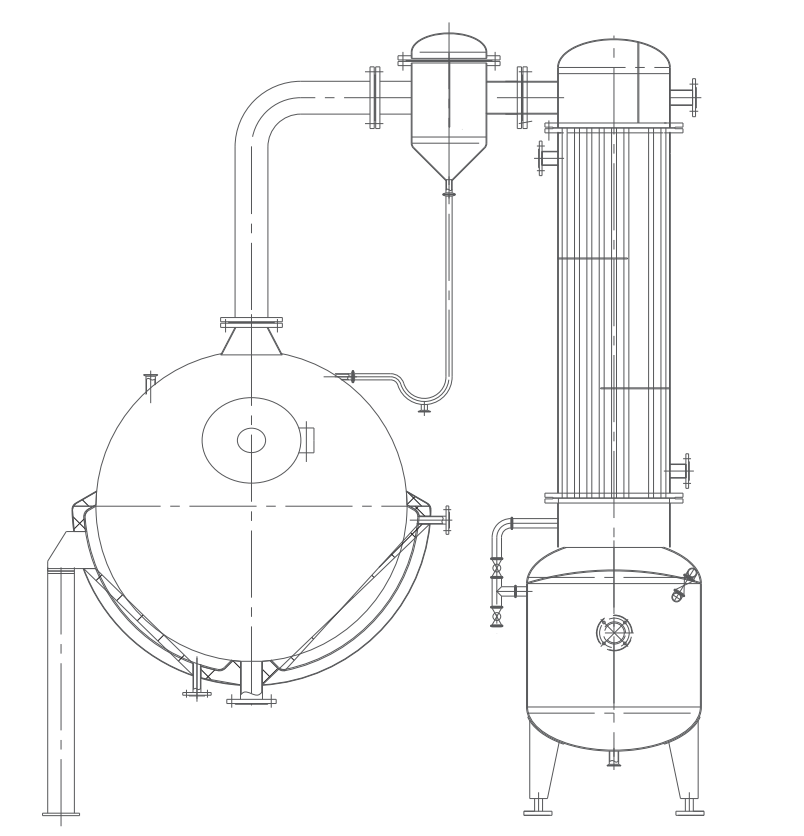

Spherical Concentrator consisting of main body, condensator, gas- liquid separator and liquid receiving barrel , serves to concentrate, distil the material liquid and reclaim organic menstruum in the pharmacy, foodstuff and chemistry. The concentration under reduced pressure brings short time of concentration and prevent the destruction of the effective content in the thermal sensitive material. The fact that the part in contact with the material is made with stainless steel brings qualified anti-corrosion performance, meeting with the GMP Standard.
| Quantity: | |
|---|---|
Product Description
Technical Parameters
Specification model | QN-300 | QN-500 | QN-700 | QN-1000 |
Evaporation quantity (kgh) | 70 | 120 | 145 | 195 |
Nominal volume (L) | 300 | 500 | 700 | 1000 |
Inside diameter of ball (mm) | 800 | 990 | 1115 | 1250 |
Steam pressure(MPa) | 0.098 | |||
Vacuum degree | 0.06-0.07MPa | |||
Heating area(m²) | 1.1 | 1.6 | 2 | 2.5 |
Condensing area(m²) | 2.4 | 3.2 | 3.5 | 4.5 |
Outline dimension | 1900×1100×2300 | 2030×1200×2500 | 2100×1300×2500 | 2335×1520×2765 |
Equipment weight(kg) | 380 | 450 | 630 | 950 |
Steam consumption(Kg/h) | 77 | 132 | 159 | 214 |
Water consumption (t/h) | 2 | 4 | 6 | 7 |
Steam inlet(m/m) | 25 | 25 | 40 | 40 |
Water inlet and outlet(m/m) | 30 | 30 | 40 | 40 |
-
