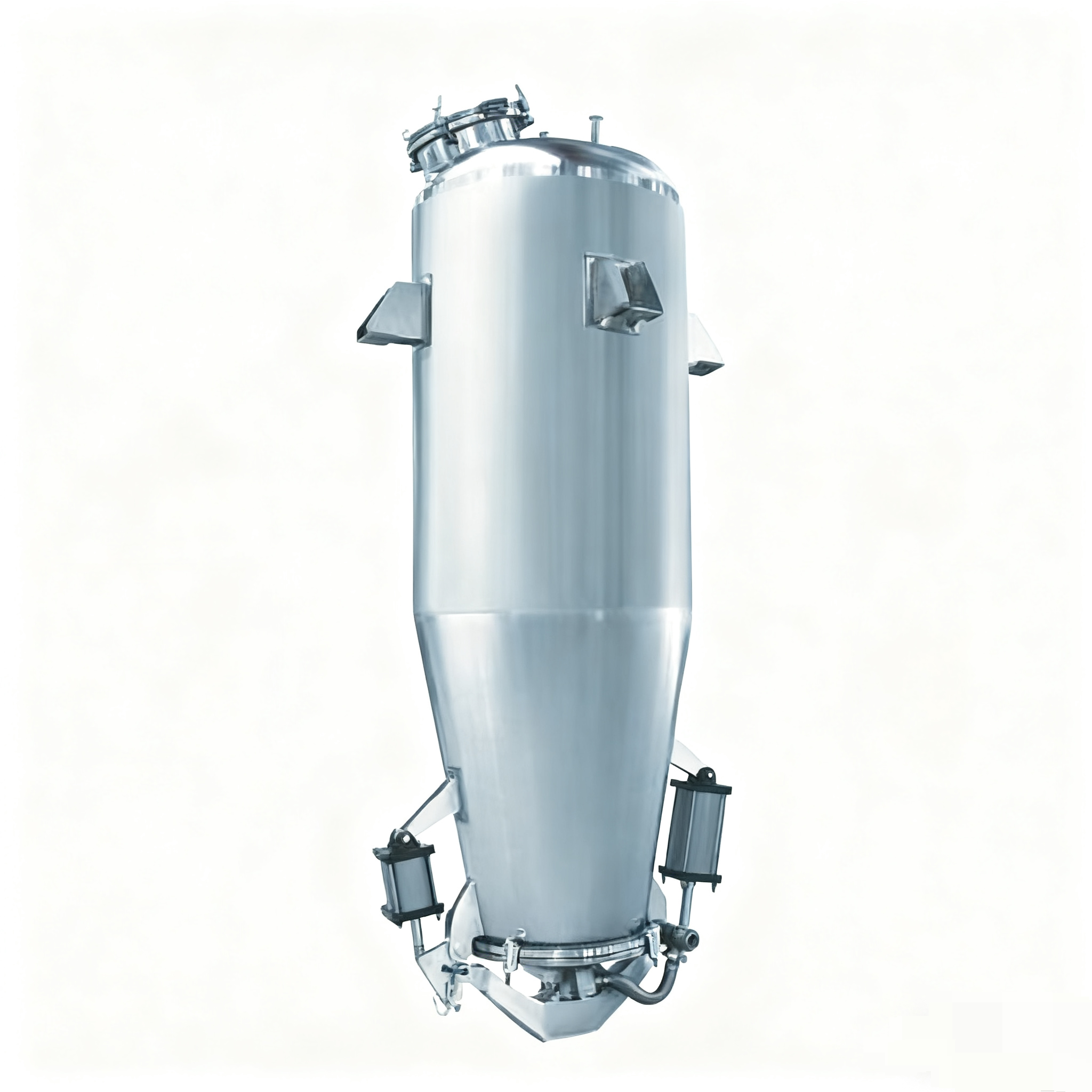

2000L Stainless Steel Extractor for Herbal Medicine

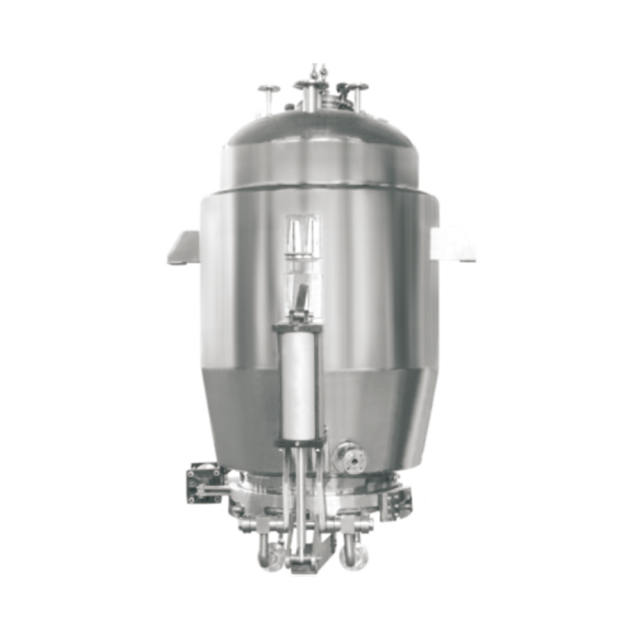

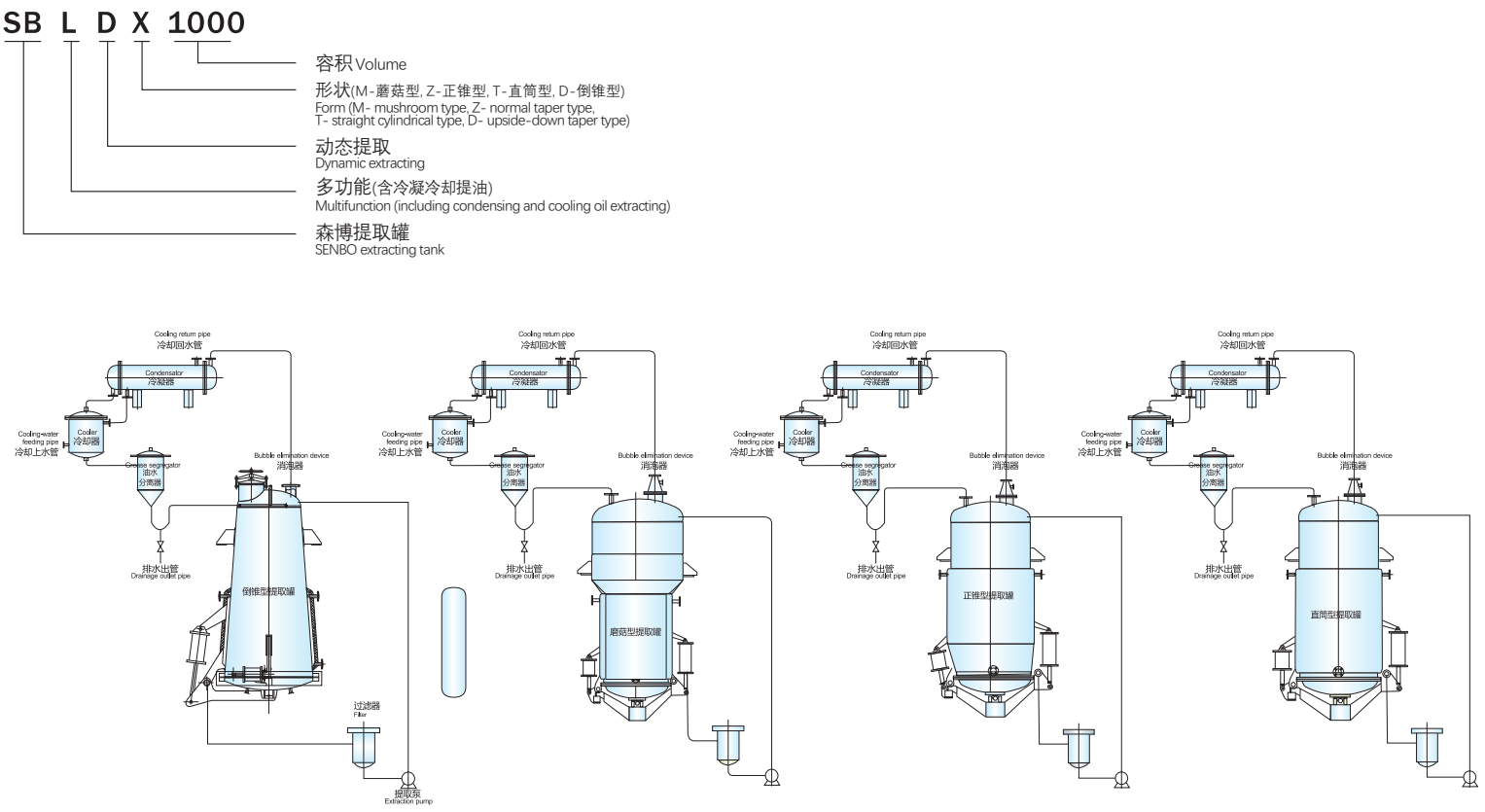

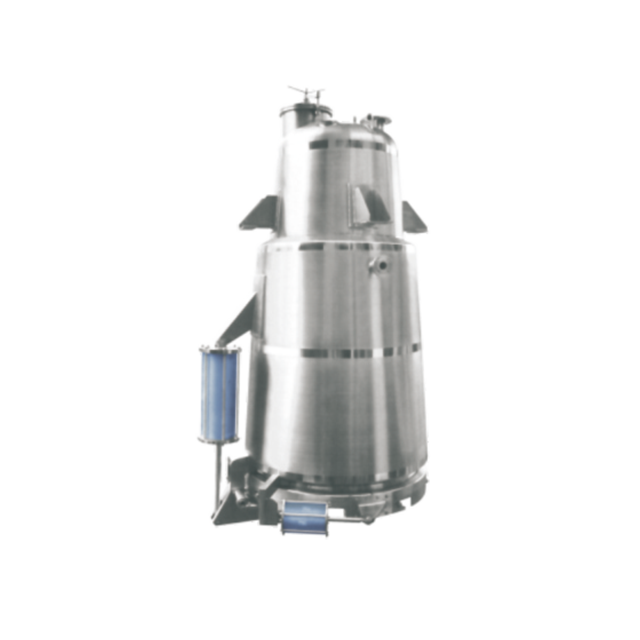

Upside-down taper type extracting tank The appearance is small at the top and big at the bottom, with the shape of upside-down taper.The most prominent features are convenient residue discharging and lower construction space.	Normal taper type extracting tank (traditional type) It takes smaller space, so it is widely used in extracting workshops. Bottom heating is provided on the residue discharging door, which makes the extraction of medicine materials more complete.

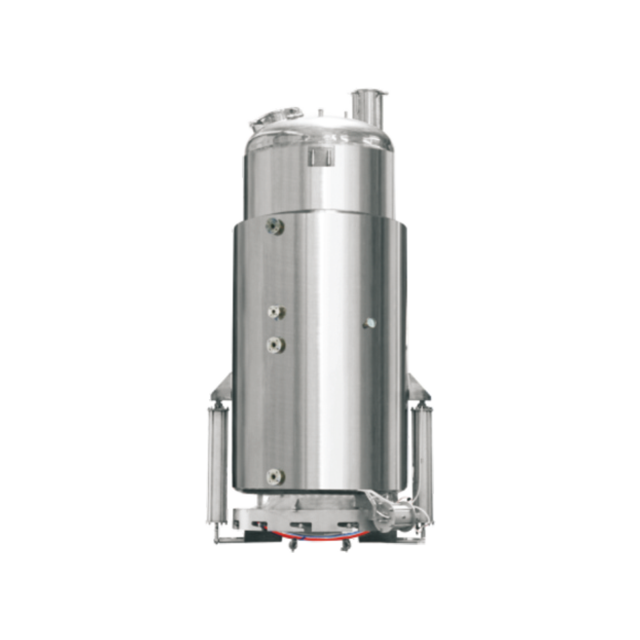

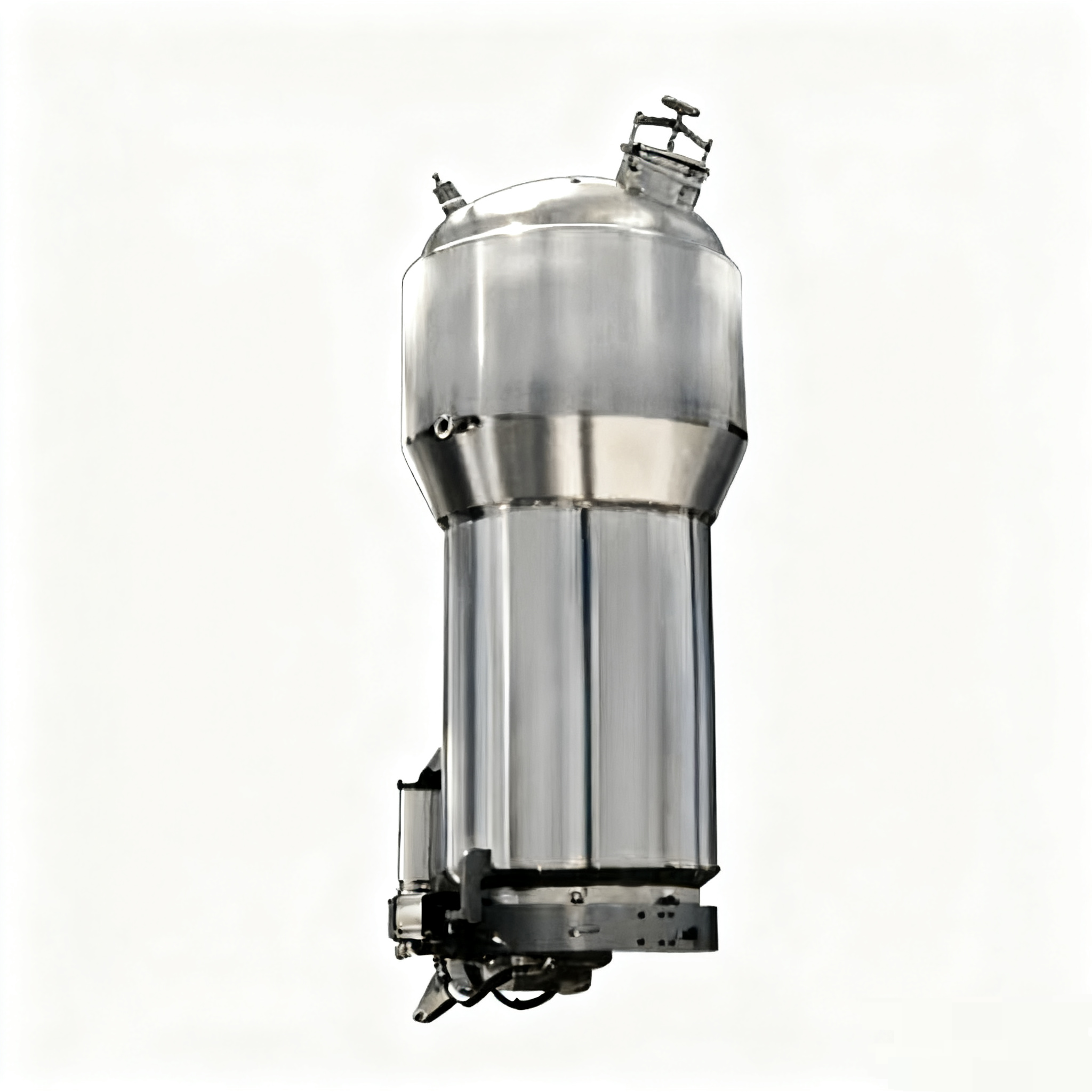

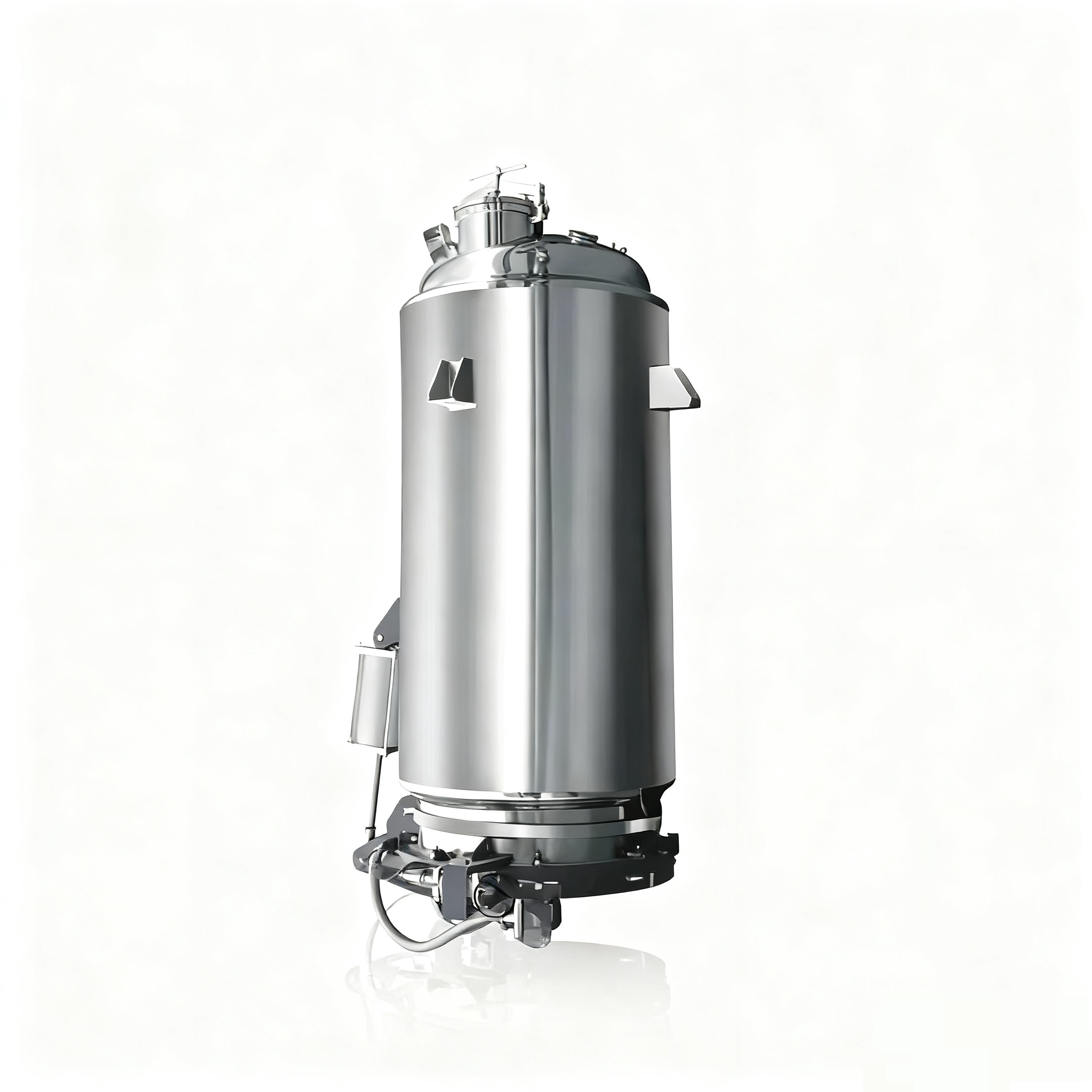

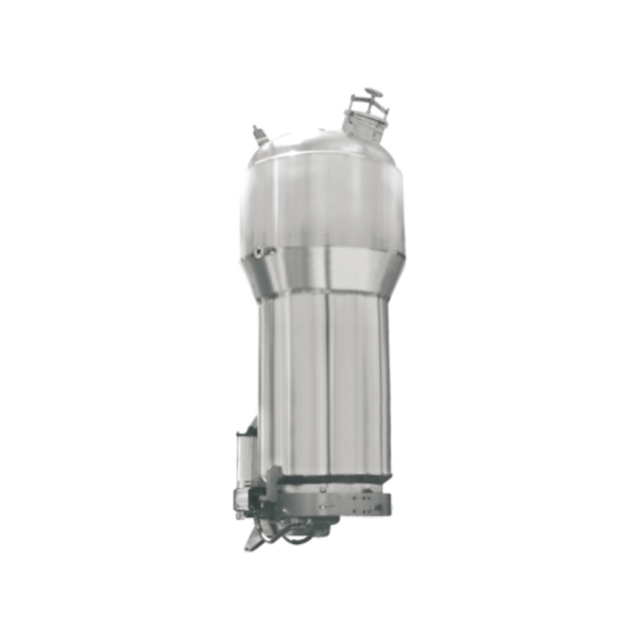

Straight cylindrical type extracting tank With long and thin appearance, it takes larger space, which benefits heat transfer and medium transfer,so that the leaching and heating time is shortened, and the extraction efficiency is enhanced. It is suitable for alcohol extraction and percolation systems.	Mushroom type extracting tank The appearance is big at the top and small at the bottom, with the shape of mushroom. The top is big so that the boiling has large buffering space without running away of materials. The bottom is small so that the heat transfer of medicine liquid is rapid, the heating time is short and the extraction efficiency is higher.

Product Overview

The 2000L Stainless Steel Extractor for Herbal Medicine sets a new benchmark in natural product extraction, combining traditional herbal processing wisdom with advanced engineering technology. This industrial-scale extraction vessel is constructed with 316L stainless steel throughout all product contact surfaces, featuring a Ra 1.6μm sanitary polish that ensures purity while resisting corrosion from botanical acids and solvents. With a nominal capacity of 2000L and working volume of 1600L, it efficiently processes large batches of medicinal herbs while maintaining 95%+ active ingredient retention – a 20% improvement over conventional extraction methods. The system integrates multiple extraction technologies including reflux, decoction, and ultrasonic-assisted extraction, controlled via a PLC system with recipe storage for different herbal formulations. Fully compliant with EU 2025/351 regulations and FDA CFR 21 Part 177 standards, it meets global requirements for herbal medicinal product manufacturing.

Product Features

Multi-Mode Extraction Technology

• Hybrid extraction system combining reflux extraction (60-95°C) and ultrasonic assistance (20-40kHz)

• Adjustable extraction pressure (0.1-0.3MPa) to enhance solubility of lipophilic components

• Dual agitation system with variable speed control (10-60 rpm) and directional mixing

• Solvent-to-herb ratio programming (1:3 to 1:10) with automatic dosing precision

Precision Temperature Regulation

• Jacketed heating system with ±1°C temperature control accuracy

• Multi-zone heating with programmable ramp rates (1-5°C per minute)

• Overheat protection with automatic shutdown at 100°C for aqueous extraction

• Integrated cooling coil for rapid temperature reduction post-extraction

Efficient Solvent Recovery

• Built-in solvent recycling system with 90%+ recovery efficiency

• Condenser capacity of 50L/hour for ethanol and similar solvents

• Vacuum-assisted evaporation capability (-0.06 to -0.09MPa)

• Solvent loss monitoring with automatic alerts for process optimization

Hygienic & Safe Operation

• 316L stainless steel construction with sanitary welds and polished surfaces

• CIP-compatible design with rotating spray balls and dedicated cleaning cycles

• Explosion-proof motor and electrical components (ATEX Zone 2 certification)

• Pressure relief valves and emergency stop functionality

Applications

Traditional Chinese Medicine Processing

• Root and rhizome extraction (ginseng, astragalus, ginger)

• Bark and woody material processing (cinnamon, magnolia)

• Leaf and flower extraction (chamomile, mint, ginkgo)

• Seed and fruit processing (schisandra, jujube)

Phytopharmaceutical Production

• Standardized herbal extract manufacturing

• Active pharmaceutical ingredient (API) isolation from botanicals

• Nutraceutical concentrate production

• Cosmeceutical ingredient extraction (green tea, aloe)

Natural Product Manufacturing

• Essential oil extraction from aromatic herbs

• Polyphenol and antioxidant recovery

• Polysaccharide extraction from medicinal fungi

• Plant-based pigment production

The extractor's versatility allows processing of various herbal materials including dried powders, cut pieces, and whole herbs, with customizable cycles to optimize yield for different active compounds.

FAQ

What extraction efficiency can be expected?

The system typically achieves 90-95% extraction efficiency for targeted compounds, depending on material type. This represents a 15-20% improvement over conventional extraction methods due to the combined ultrasonic and reflux technology.

How long does a typical extraction cycle take?

Cycle times vary by material but generally range from:

• 2-3 hours for leaves and flowers

• 3-5 hours for roots and rhizomes

• 4-6 hours for woody materials

The PLC system stores optimized recipes for common herbs to minimize setup time.

What solvents are compatible with the extractor?

The 316L stainless steel construction is compatible with:

• Aqueous solvents (water, glycerin, propylene glycol)

• Ethanol and other alcohols (up to 95% concentration)

• Hydroalcoholic mixtures

• Food-grade organic solvents (hexane, ethyl acetate)

Specialized seals are available for stronger solvents on request.

How is cleaning performed between batches?

The integrated CIP system performs automated cleaning cycles:

• Pre-rinse with purified water

• Alkaline wash (80°C, 2% NaOH solution)

• Acidic rinse (0.5% nitric acid)

• Final rinse with WFI (Water for Injection)

Complete cleaning validation documentation is provided.

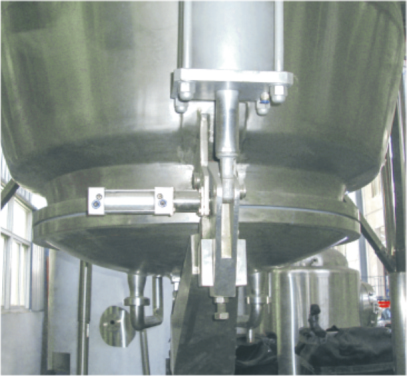

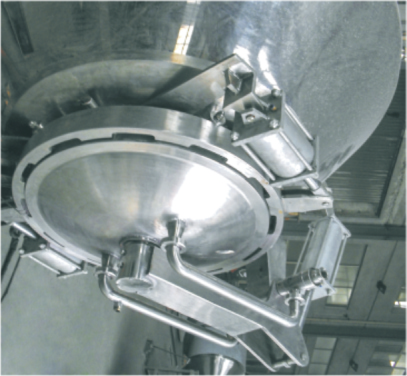

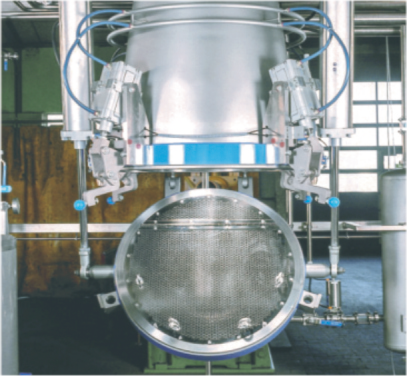

The tank cover can be automatically opened and closed. High temperature and high pressure extraction can be realized, and more than 3Bar can be achieved in the swivel type product. It provides more selection for extracting technology. It can also meet some special technological requirements. With good safety and reliability, it has sufficient safety guarantee functions and the has no leakage.	The tank cover can be automatically opened and closed. It adopts cylinder control and is provided with safety device to avoid accidental operation and provide high safety factor. It is suitable for use in small and medium- sized reside discharging vent.	The tank cover can be automatically opened and closed. High temperature and high pressure extraction can be realized to provide more selection for extracting technology. With high safety factor, the residue discharging door is suitable for residue discharging of large-diameter upside-down taper type extracting tank.
