Improperly sizing a sanitary heat exchanger introduces severe operational risks to your facility. You face rapid product degradation, biological contamination, and excessive energy consumption when equipment fails to meet process demands. Balancing maximum thermal efficiency with strict hygienic standards remains a primary engineering challenge on the plant floor. Food, pharmaceutical, and chemical processes demand equipment that prevents dead legs while ensuring complete cleanability. This guide provides a technical framework for sizing these critical components accurately. You will learn how to evaluate vendor proposals, understand complex sizing variables, and select the correct heat exchanger topology. We explore how specific process conditions dictate equipment choices and material selection. By mastering these principles, you ensure regulatory compliance and safeguard product integrity. You can optimize thermal transfer without compromising sanitary design requirements.
Accurate sizing requires balancing thermal duty with fluid rheology; over-sizing can lead to low velocities that compromise Clean-in-Place (CIP) effectiveness.
Choosing between a plate heat exchanger for pharma applications and a tubular heat exchanger depends heavily on pressure drop limits, particulate presence, and required sanitary certifications (ASME BPE, 3-A).
Proactive mitigation of heat exchanger fouling through optimal flow velocity, material selection, and surface finish specification drastically reduces long-term operational costs and downtime.
Accurate sizing begins with precise foundational inputs. You must define mass flow rates, specific heat capacities, and target temperatures. Both the product and utility sides require detailed temperature profiles. The heating or cooling medium directly impacts the overall heat transfer coefficient. Chilled water, steam, and glycol each behave differently under thermal load. Steam provides high latent heat transfer, while glycol mixtures reduce thermal conductivity. You must source highly accurate physical property data to prevent baseline sizing errors. Rely on validated chemical databases or empirical testing for density, specific heat, and thermal conductivity. Guessing these values leads to catastrophic sizing failures.
Engineers must follow a strict sequence when establishing the thermal duty for any sanitary application. Skipping steps results in equipment that either bottlenecks production or fails to reach pasteurization temperatures.
Calculate the total heat load (Q) using the mass flow rate, specific heat, and required temperature change of the product.
Determine the available utility temperatures and flow rates to ensure they can satisfy the calculated heat load.
Establish the maximum allowable pressure drop for both the product and utility sides based on existing pump curves.
Identify the required temperature approach, which is the difference between the product outlet and utility inlet temperatures.
Process Fluid | Typical Specific Heat (kJ/kg·K) | Thermal Conductivity (W/m·K) | Sizing Consideration |
|---|---|---|---|
Water for Injection (WFI) | 4.18 | 0.60 | High heat transfer, low resistance |
Milk (Whole) | 3.93 | 0.53 | Prone to protein fouling at high temps |
50% Sugar Syrup | 2.95 | 0.42 | High viscosity requires larger flow channels |
Heavy Cream (40% Fat) | 3.10 | 0.38 | Shear-sensitive, requires low pressure drop |
Fluid behavior changes drastically under processing conditions. Non-Newtonian fluids alter their viscosity under shear stress. Shear-thinning fluids like yogurt flow easier as velocity increases. Shear-thickening fluids become more viscous under pressure. This directly impacts heat transfer rates and pressure drop calculations. You must establish strict criteria for handling particulates, fibers, or pulps. Sizing must account for these solids to prevent blockages. Proper gap selection prevents mechanical damage to the exchanger internals. Fruit pulps and pharmaceutical suspensions require specific channel geometries to maintain physical integrity.
When dealing with complex rheology, apparent viscosity becomes the critical metric. You cannot rely on a single viscosity measurement taken at room temperature. You must plot a rheogram showing how the fluid behaves across the entire temperature gradient of the heat exchanger. As a product cools, its viscosity typically increases, which thickens the boundary layer against the heat transfer surface. This thickened layer acts as insulation, severely degrading the overall heat transfer coefficient. If you fail to account for this cold-end viscosity spike, the unit will underperform during winter months or when utility temperatures fluctuate.
Industry standards dictate specific design requirements for sanitary applications. You must follow 3-A Sanitary Standards, EHEDG guidelines, and FDA material compliance rules. Pharmaceutical applications require exceptionally strict surface finishes. Specify a roughness average (Ra) below 0.8 µm. Require electropolishing for high-purity chemical processes to remove microscopic burrs. Material of Construction (MoC) is equally critical for longevity. Establish 316L stainless steel as your baseline material. Upgrade to AL-6XN, Titanium, or Hastelloy for high-chloride environments. These premium alloys prevent chloride stress corrosion cracking and pitting in aggressive chemical processes.
The choice of material directly influences the thermal conductivity of the heat transfer wall. While 316L stainless steel offers excellent baseline corrosion resistance, its thermal conductivity is relatively low compared to carbon steel. When you upgrade to higher alloys like Hastelloy or Titanium to handle aggressive CIP chemicals, the thermal conductivity drops even further. You must compensate for this increased wall resistance by adding more surface area. Failing to adjust the U-value for the specific alloy will result in a unit that falls short of its thermal duty.

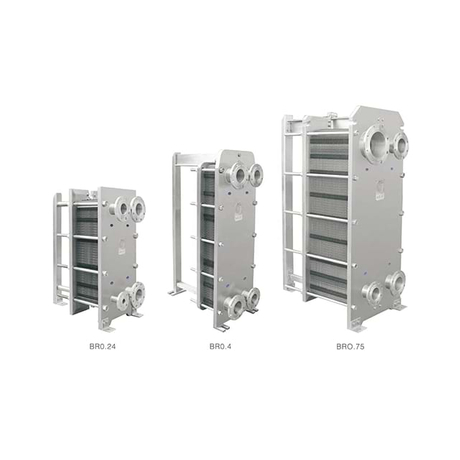

Sanitary plate-and-frame designs offer high thermal efficiency and a compact footprint. Their modularity allows you to add plates as process demands increase. A plate heat exchanger for pharma excels in regenerative heat recovery. Multi-section configurations enable product-to-product heat exchange. This drastically lowers energy consumption in processes like milk pasteurization. However, they have distinct mechanical limitations. High-viscosity fluids, large particulates, and extreme operating pressures can cause gasket failures. They remain ideal for Water for Injection (WFI) cooling, pasteurization, and low-viscosity chemical processing.
The internal geometry of the plates dictates performance. Manufacturers press plates with specific chevron patterns. High-theta plates create intense turbulence, yielding high heat transfer rates at the cost of high pressure drop. Low-theta plates offer lower resistance to flow but require more surface area to achieve the same thermal duty. You must mix these plate types strategically to match your exact pressure drop limitations while maximizing the overall heat transfer coefficient. This thermal length optimization separates a well-engineered system from an off-the-shelf failure.
Shell-and-tube, double-tube, and multi-tube configurations handle demanding processing conditions. A tubular heat exchanger easily manages high pressures, elevated temperatures, and complex fluid matrices. These designs accommodate thermal expansion during high-temperature Sterilize-in-Place (SIP) cycles. Manufacturers use floating tube sheets or integrated expansion joints to manage thermal stress. You must choose between corrugated and smooth tubes. Corrugated tubes increase turbulence and heat transfer efficiency. Smooth tubes offer superior cleanability and lower pressure drops. Tubular designs serve as the standard for high-particulate food processing and aseptic applications.
When sizing tubular units, tube velocity is the primary constraint. You must maintain a velocity high enough to ensure turbulent flow (Reynolds number > 4000) but low enough to prevent erosion of the tube walls. For most sanitary applications, engineers target a tube-side velocity between 1.5 and 2.5 meters per second. If the velocity drops below 1.5 m/s, the risk of particulate settling and localized fouling increases exponentially. You must carefully select the tube diameter and the number of passes to hit this velocity sweet spot.
Some products destroy standard heat transfer equipment. Scraped surface designs use continuous mechanical scraping to remove product from the heat transfer area. A rotating shaft drives blades against the inner cylinder wall. This prevents burning and maintains consistent thermal transfer. Specify this technology for extreme viscosities like peanut butter or thick chemical pastes. It also handles products prone to rapid crystallization and severe fouling. The mechanical action keeps the boundary layer constantly refreshed. This ensures reliable temperature control for highly challenging materials.
The sizing of a scraped surface unit relies heavily on residence time and dasher speed. The dasher is the internal rotating shaft that holds the scraper blades. If the dasher spins too slowly, the product will burn onto the cylinder wall before the blade can remove it. If it spins too fast, the mechanical shear can destroy the texture of sensitive food products or degrade pharmaceutical polymers. You must calculate the exact internal volume of the cylinder and match the pump flow rate to achieve the required residence time for complete thermal penetration.
The Log Mean Temperature Difference (LMTD) acts as the driving force for heat transfer. Temperature cross occurs when the cold fluid outlet temperature exceeds the hot fluid outlet temperature. This condition dictates the required surface area and flow configuration. The Overall Heat Transfer Coefficient (U-Value) measures system efficiency. Material thermal conductivity, wall thickness, and boundary layer conditions directly influence this value. Convective heat transfer coefficients on both the product and utility sides determine the final U-Value. Accurate calculation prevents under-sizing the equipment.
To maximize the LMTD, you must configure the heat exchanger for counter-current flow. In this arrangement, the hottest product meets the hottest utility fluid, and the coldest product meets the coldest utility fluid. This maintains a consistent temperature driving force across the entire length of the unit. Co-current flow, where both fluids enter at the same end, severely limits the LMTD and makes it physically impossible to achieve a temperature cross. Always verify the flow arrangement in the vendor's thermal data sheet.
Heat transfer efficiency correlates directly with pressure drop. Higher turbulence improves heat transfer but increases hydraulic resistance. Designing for higher turbulence reduces surface area requirements. However, this necessitates larger, more energy-intensive sanitary pumps. You must balance thermal efficiency against hydraulic limitations. Excessive pressure drop causes shear damage to sensitive pharmaceutical proteins and dairy emulsions. Engineers must calculate the Reynolds number to ensure flow remains in the optimal turbulent regime without exceeding pump capacities.
You must account for the pressure drop of the entire system, not just the heat exchanger. The interconnecting sanitary piping, valves, and instrumentation all contribute to the total dynamic head required from the pump. If you allocate too much of the available pressure drop to the heat exchanger, you will starve the rest of the process line. Establish a strict pressure drop budget during the initial design phase and force the heat exchanger manufacturer to design within those boundaries.
Over-specifying surface area introduces significant operational risks. It leads to low product velocities, poor heat transfer, and inadequate CIP performance. You must establish minimum velocity thresholds to maintain turbulent flow. This ensures hygienic self-cleaning during operation. Installation geometry also matters during the sizing phase. The calculated surface area must fit within your facility footprint. You must also allow for the mandatory pitch required for complete gravity drainability. Horizontal installations require specific sloping to prevent liquid pooling.
When floor space is limited, engineers often push for multi-pass configurations to pack more surface area into a smaller footprint. While this solves the geometry problem, it creates complex internal flow paths that are harder to clean and inspect. Every U-bend or turnaround in a multi-pass design adds significant pressure drop and creates a potential dead zone for particulate accumulation. You must weigh the physical footprint constraints against the long-term maintainability of the equipment.
Process fluids naturally degrade heat transfer surfaces over time. Primary fouling mechanisms include protein denaturation, mineral scaling, crystallization, and biological buildup. You must incorporate fouling factors into your sizing calculations. Avoid excessively over-sizing the unit to compensate for fouling. Paradoxically, an oversized sanitary heat exchanger worsens fouling due to lowered fluid velocities. Proactive management of heat exchanger fouling requires precise velocity control and appropriate surface finishes. Higher velocities create shear forces that naturally scour the heat transfer surface.
In dairy and food applications, the Maillard reaction and calcium phosphate precipitation are the primary culprits for rapid fouling. As the product touches the hot metal wall, proteins denature and bake onto the surface. To combat this, you must strictly control the wall temperature. Do not use high-pressure steam to heat a delicate product. Instead, use a secondary water loop to provide gentle, controlled heating. Keeping the temperature difference between the heating medium and the product as small as possible drastically reduces the rate of burn-on.
Cleaning protocols dictate equipment design from the ground up. You must outline specific flow rates and temperatures for effective CIP and SIP cycles. The heat exchanger design must eliminate dead legs entirely. Full drainability is mandatory to meet validation protocols. If cleaning fluids pool inside the unit, biological contamination will occur. CIP flow rates must achieve a minimum velocity of 1.5 meters per second. This guarantees sufficient mechanical action to remove stubborn product residues from the plates or tubes.
Effective CIP relies on the four T's: Time, Temperature, Titration (chemical concentration), and Turbulence. The heat exchanger sizing directly controls the turbulence factor. If you size a unit with massive flow channels to minimize pressure drop during production, you will struggle to generate enough velocity during the CIP cycle to clean those channels. You must calculate the required CIP flow rate and ensure your utility pumps can deliver that volume. Never assume that production flow rates are sufficient for cleaning.
Elastomers degrade under chemical and thermal stress over time. You must evaluate the material compatibility of EPDM, FKM, and Silicone. These seals must withstand both the process fluid and aggressive CIP chemicals like caustic and acid. Consider the maintenance realities of your chosen design. Replacing gaskets in plate heat exchangers requires regular planned downtime. Compression set causes gaskets to lose their elasticity, leading to external leaks. Welded tubular designs eliminate gasket maintenance but require more complex internal inspection methods.
High-temperature SIP cycles are particularly brutal on elastomers. When steam hits a cold gasket, the rapid thermal expansion stresses the polymer chains. Over multiple cycles, the gasket becomes brittle and cracks. If your process requires frequent SIP, you must specify high-performance elastomers designed specifically for steam service. Furthermore, the frame of a plate heat exchanger must be robust enough to handle the thermal expansion of the plate pack without warping or losing compression on the seals.
Never accept vendor calculations at face value. Interrogate their sizing assumptions thoroughly before issuing a purchase order. Verify the assumed viscosity at the actual operating temperature. Question overly optimistic U-values that seem disconnected from physical realities. Confirm they use industry-standard sizing software like HTRI or Aspen. Ask for the specific fouling factors applied to the calculation. Ensure the pressure drop calculations account for the entire piping run, not just the heat exchanger itself.
When reviewing the thermal data sheet, pay close attention to the shear rate and velocity profiles. A vendor might show a high overall U-value, but if you look closely at the velocity, it might be dangerously close to the erosion limit of the material. Conversely, they might show a very low pressure drop, but the velocity is so low that the unit will foul within hours of operation. You must balance these metrics against your specific process realities.
Strict documentation separates reliable vendors from poor ones. Emphasize the importance of requiring thermal performance guarantees. Demand complete Material Test Reports (MTRs) for all wetted parts to verify alloy composition. Factory Acceptance Testing (FAT) documentation proves the equipment meets your exact specifications before shipment. The FAT should include riboflavin testing for cleanability and hydrostatic testing for pressure integrity. Verify surface roughness measurements using a calibrated profilometer during the inspection.
Do not allow the equipment to ship without a complete weld log and borescope inspection report for tubular units. Every sanitary weld must be documented, inspected, and passivated to prevent rouge formation. For plate units, demand a clear layout drawing showing the exact plate arrangement and gasket materials. This documentation is not just for regulatory compliance; it is your baseline for future maintenance and troubleshooting.
Optimal sizing requires balancing thermal duty, fluid mechanics, and strict hygienic compliance. Default to plate designs for clean, low-viscosity fluids and heat recovery. Choose tubular designs for particulates, high pressures, and thermal stress. Specify scraped surface units for extreme viscosities.
Compile a comprehensive process data sheet including fluid rheology curves and precise physical properties.
Define exact CIP and SIP protocols before requesting vendor quotes.
Verify all material test reports and surface finish certifications during the FAT.
Calculate minimum flow velocities to ensure self-cleaning and prevent premature fouling.
A: Maximum allowable pressure drop depends on your specific pump capacity and process limits. Generally, engineers aim for a pressure drop between 5 and 15 psi across the heat exchanger. Exceeding these limits requires larger pumps, which increases energy consumption and potential shear stress on sensitive products.
A: Higher fluid viscosity increases resistance to flow, which lowers turbulence and reduces the overall heat transfer coefficient. To compensate, engineers must increase the surface area or utilize corrugated tubes to induce artificial turbulence. Accurate viscosity data at operating temperatures is critical for correct sizing.
A: Sanitary models feature crevice-free designs, polished surface finishes (Ra < 0.8 µm), and FDA-compliant gaskets. They are designed for complete drainability and effective Clean-in-Place (CIP). Industrial models prioritize thermal efficiency over cleanability and often contain dead legs where bacteria can accumulate.
A: Fouling factors are determined through empirical testing or historical data for specific fluids. They represent the thermal resistance added by scale or product buildup over time. Engineers add this margin to the baseline surface area calculation to ensure the unit performs adequately between cleaning cycles.
A: Yes, provided it is equipped with high-temperature gaskets like specialized EPDM or FKM. The frame must also be designed to accommodate the thermal expansion that occurs during high-temperature steam sterilization cycles without compromising seal integrity.
A: A smoother surface finish minimizes microscopic crevices where bacteria, proteins, and minerals can adhere. An Ra value below 0.8 µm ensures that CIP chemicals can effectively sweep the surface clean, preventing cross-contamination and biofilm formation.
A: Prevent dead legs by ensuring all piping connections are short and properly sloped. The heat exchanger itself must be installed at the correct pitch to allow complete gravity draining. Avoid unused ports or instrumentation tees that extend beyond standard sanitary guidelines.
