Concentrating heat-sensitive materials presents a strict engineering challenge. You must remove solvents efficiently without inducing thermal degradation, altering flavor profiles, or compromising active pharmaceutical ingredients (APIs). Operating under negative pressure solves the temperature problem. However, scaling production introduces a sharp conflict between operational expenditures—specifically steam and cooling water consumption—and initial capital expenditures. Facility engineers constantly balance utility constraints with product integrity requirements. The decision between single-effect and double-effect configurations serves as the primary lever for managing energy efficiency, physical footprint, and thermodynamic limits in specialized industrial applications. Selecting the correct system requires analyzing feed viscosity, target concentration levels, and facility infrastructure. We will explore how these configurations impact continuous, stable operation and dictate the final quality of your processed materials.
Thermodynamic Efficiency: Double-effect systems utilize vapor from the first stage to heat the second, effectively cutting steam consumption by up to 50% compared to single-effect systems.
Application Specificity: A single-effect evaporator remains the standard for low-volume, highly viscous, or highly sensitive pharmaceutical batches, while double-effect systems are essential for high-throughput juice concentration.
Viscosity & Boiling Point Elevation (BPE): As product concentration increases, the boiling point rises. This thermodynamic reality limits the practical number of effects, making system selection highly dependent on the final target Brix or solids percentage.
Compliance & Design: Pharmaceutical applications require stringent GMP compliance and CIP/SIP integration, heavily influencing the complexity and cost of multi-effect designs.
The fundamental operation of a vacuum evaporator relies on manipulating atmospheric pressure to alter the boiling point of liquids. Under standard atmospheric pressure, water boils at 100°C. This temperature rapidly degrades vitamins, denatures proteins, and destroys delicate volatile compounds. By introducing a vacuum pump to lower the internal pressure of the evaporation chamber, the boiling point of solvents drops significantly. Evaporation can occur at temperatures between 40°C and 60°C. This low-temperature phase change is the baseline requirement for processing any heat-sensitive material.
To understand the relationship between pressure and boiling point, review the standard thermodynamic behavior of water under vacuum conditions. Lowering the pressure directly correlates to a lower required heating temperature.
Absolute Pressure (mbar) | Water Boiling Point (°C) | Typical Application |
|---|---|---|
1013 (Atmospheric) | 100.0 | Standard boiling (Not suitable for heat-sensitive products) |
300 | 69.1 | First effect in multi-stage systems |
200 | 60.0 | Standard juice concentration |
100 | 45.8 | Delicate botanical extracts |
50 | 32.9 | Highly sensitive pharmaceutical APIs |
In the beverage sector, concentration removes excess water for storage and transport. The process must not damage the raw material. Success is measured by the retention of organoleptic properties, including color, taste, and aroma. High temperatures cause caramelization and Maillard reactions. These reactions turn bright fruit juices dark and introduce burnt flavor notes. The system must achieve precise Brix levels consistently. Modern setups integrate volatile flavor recovery units. These units capture the aromatic compounds that flash off during the initial evaporation stages. Operators then blend these captured aromatics back into the final product.
Pharmaceutical processing demands absolute stability of Active Pharmaceutical Ingredients (APIs). Thermal degradation in this sector results in failed batches and compromised patient safety. Success requires strict adherence to thermal residence time limits. The product must spend the absolute minimum time exposed to heat transfer surfaces. Prevention of cross-contamination is non-negotiable. This necessitates sanitary designs with zero dead legs. Efficient solvent recovery is also mandatory. Many pharmaceutical extraction processes utilize expensive or hazardous solvents. You must condense, collect, and reuse these solvents efficiently.

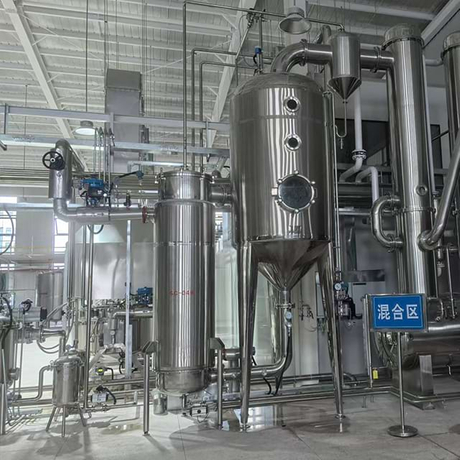

A single-effect evaporator utilizes a straightforward thermodynamic cycle. Utility steam enters the heating jacket or calandria. It transfers latent heat to the product. The solvent boils, producing vapor that travels to a condenser. The concentrated product is then discharged. The vapor generated by the boiling product is not reused for heating. It is simply condensed and removed.
Equipment variations accommodate different material properties. Falling film designs distribute liquid evenly down the inside of vertical tubes. This creates a thin, fast-moving film ideal for low-viscosity juices requiring minimal residence time. For highly viscous pharmaceutical slurries or botanical extracts, wiped-film or forced circulation designs are utilized. Wiped-film units use internal rotating blades. These blades physically spread the viscous material against the heated wall. This mechanical action prevents fouling and ensures consistent heat transfer.
Ideal scenarios for single-effect configurations include pilot plants and small-batch pharmaceutical production. In these settings, volume does not justify complex energy recovery systems. They are also the standard for products requiring extremely low residence times. The material passes through the heating zone only once. Facilities with abundant, low-cost utility steam often default to single-effect systems due to their operational simplicity.
A double-effect vacuum concentrator introduces a cascading pressure and temperature mechanic. This maximizes thermal efficiency. The system consists of two evaporation vessels connected in series. The first effect operates at a higher pressure and temperature than the second. Utility steam heats the first effect. The vapor generated from the boiling product in the first effect is not sent to a condenser. Instead, it is routed to the heating jacket of the second effect.
Because the second effect is held at a deeper vacuum, its boiling point is lower. This creates a temperature difference between the vapor from the first effect and the boiling liquid in the second effect. The latent heat of the vapor acts as the heating medium. This reuse of vapor drastically reduces the demand for fresh utility steam.
The operational sequence of a double-effect system follows a strict thermodynamic path:
Fresh utility steam enters the calandria of the first effect.
The feed material enters the first effect and boils at a moderate vacuum (e.g., 300 mbar).
The generated vapor from the first effect is piped into the heating jacket of the second effect.
The partially concentrated product is transferred from the first effect to the second effect.
The second effect operates at a deeper vacuum (e.g., 100 mbar), lowering the boiling point of the liquid.
The vapor from the first effect condenses, transferring its heat to boil the liquid in the second effect.
The final concentrated product is discharged, and the vapor from the second effect goes to the main condenser.
Steam economy defines the efficiency of an evaporation system. It is measured as the kilograms of solvent evaporated per kilogram of utility steam consumed. A single-effect system typically achieves a steam economy of approximately 0.9. This means slightly more than one kilogram of steam is required to evaporate one kilogram of water, accounting for thermal losses. In contrast, a double-effect system approaches a steam economy of 1.8 to 2.0. By reusing the vapor, the system effectively doubles the work output of the initial steam input.
This efficiency extends to the cooling infrastructure. In a single-effect system, all generated vapor must be collapsed by the final condenser. This requires massive volumes of cooling water. In a double-effect system, the first effect's vapor is condensed inside the heating jacket of the second effect. Only the vapor generated by the final effect reaches the main condenser. This cuts the cooling water requirement by roughly half.
Parameter | Single-Effect System | Double-Effect System |
|---|---|---|
Steam Economy | ~0.9 | ~1.8 - 2.0 |
Cooling Water Demand | High (100% vapor condensed) | Low (~50% vapor condensed) |
Residence Time | Short (Single pass) | Medium (Two passes) |
Footprint | Compact | Large (Requires vertical clearance) |
Control Complexity | Low (Basic PLC) | High (Cascading PID loops) |
Adding a second effect increases the overall thermal residence time. The product must travel through two distinct heating zones before final discharge. For highly sensitive APIs or delicate fruit juices, this prolonged exposure can induce thermal degradation. The cascading temperature profile means the first effect operates at a higher temperature than the second. You must carefully calculate this against the product's degradation threshold.
Mitigation strategies focus on fluid dynamics. Utilizing falling film designs in both effects ensures rapid transit times. These times are often measured in seconds per pass. Precise vacuum control is necessary to keep the boiling point in the first effect as low as possible while still maintaining enough temperature difference to drive the second effect. If residence time cannot be managed within acceptable limits, a single-effect system remains the only viable choice.
As water is removed, the concentration of solids increases. High-sugar juices and dense pharmaceutical suspensions experience a sharp increase in viscosity. High viscosity thickens the boundary layer of the fluid against the heat exchanger wall. This severely reduces the heat transfer coefficient. The fluid moves slower, absorbs more heat, and risks burn-on.
Simultaneously, the system must account for Boiling Point Elevation (BPE). As the concentration of dissolved solids rises, the boiling point of the solution becomes higher than that of the pure solvent at the same pressure. BPE reduces the available temperature driving force in the second effect. If the product reaches a high Brix level, the BPE may become so significant that the vapor from the first effect is no longer hot enough to boil the liquid in the second effect. This thermodynamic limit often necessitates switching to a single-effect forced circulation finisher for the final concentration stage.
When specifying an industrial concentrator, physical footprint dictates installation feasibility. Double-effect falling film systems require significant vertical clearance. They often exceed 10 meters to accommodate the long heat exchange tubes required for proper film formation. Single-effect systems, particularly wiped-film or short-path designs, offer a much more compact footprint.
Automation requirements scale with complexity. Single-effect systems operate with simpler PLC controls. They manage a single vacuum setpoint, steam valve, and feed pump. Double-effect systems require complex, dynamic balancing. The PLC must continuously monitor and adjust the pressure, temperature, and flow rates between the two stages. A fluctuation in the feed rate to the first effect immediately impacts the vapor generation. This subsequently alters the heating capacity of the second effect. Advanced PID loops are mandatory for stable operation.
Pharmaceutical evaporation equipment must comply with strict regulatory frameworks. Construction adheres to ASME BPE (Bioprocessing Equipment) standards. Contact surfaces are fabricated from 316L stainless steel or highly corrosion-resistant alloys like Alloy 22 for aggressive solvents. Internal surface finishes require mechanical polishing and electropolishing to achieve Ra values below 0.4 µm. This eliminates microscopic crevices where biofilms or API residues could accumulate.
Implementing Clean-in-Place (CIP) and Sterilize-in-Place (SIP) protocols is highly complex in multi-effect configurations. The automated cleaning cycles must guarantee complete coverage of all calandria tubes, vapor ducts, and transfer pumps without requiring manual disassembly. Material traceability, explosion-proof (ATEX) ratings for solvent recovery environments, and rigorous FDA/cGMP validation documentation (IQ/OQ/PQ) are mandatory. These requirements heavily influence the engineering timeline.
Food-grade applications follow sanitary design requirements outlined by 3-A Sanitary Standards or EHEDG (European Hygienic Engineering & Design Group). While surface finish requirements are slightly less stringent than pharmaceutical grades, the prevention of bacterial growth remains paramount. Welds must be ground smooth, and dead legs must be eliminated from the piping layout.
A major design consideration for juice processing is the integration of aroma recovery units. During the initial flash evaporation, volatile flavor compounds vaporize alongside the water. An essence recovery column is integrated into the vacuum loop to fractionate and condense these specific volatiles. This allows them to be captured and reintroduced to the concentrate. Additionally, the heat exchanger design must account for pectin fouling and sugar burn-on. This often requires higher tube velocities or specific flow distribution plates to keep the heat transfer surfaces clean during long production runs.
To bridge the efficiency gap without adding a complete second effect, Thermal Vapor Recompression (TVR) is frequently deployed. A TVR system uses a steam thermocompressor to capture a portion of the vapor generated by the boiling product. High-pressure motive steam is injected through a nozzle. This creates a low-pressure zone that draws in the product vapor. The two streams mix and are discharged at an intermediate pressure. This mixed steam is then routed back into the heating jacket of the same effect. This configuration improves the steam economy of a single-effect system from 0.9 to approximately 1.3. It offers a practical middle ground for energy efficiency.
Mechanical Vapor Recompression (MVR) replaces utility steam almost entirely. An MVR system routes all the vapor generated by the product into a high-speed centrifugal compressor or positive displacement blower. The mechanical compression increases the pressure and temperature of the vapor. This allows it to be used as the sole heating medium for the evaporator. While MVR requires a substantial electrical load to drive the compressor, it eliminates the need for massive boiler infrastructure and cooling towers. This makes it highly effective for continuous, large-scale concentration.
A common failure point in deployment is a mismatch between the evaporator's requirements and the facility's existing utility infrastructure. Boiler capacity may be insufficient to handle the startup load of a large system. Steam pressure stability is equally critical. Fluctuating steam pressure will cause the boiling temperatures to swing, disrupting the delicate balance of a double-effect system. Furthermore, the cooling tower infrastructure must be capable of handling the vapor load of the final condenser, particularly during peak summer months when cooling water temperatures rise.
Mitigation requires a comprehensive utility audit prior to equipment specification. Engineers must verify the maximum continuous rating (MCR) of the boilers. You must install pressure reducing stations (PRS) to ensure stable steam delivery. Finally, calculate the exact approach temperatures of the cooling water system to guarantee condensation under deep vacuum.
Process instability frequently occurs in double-effect systems due to operator inexperience. Cascading vacuum controls and feed rate fluctuations require a deep understanding of thermodynamics. If an operator manually overrides a valve without understanding the downstream impact, the system can lose vacuum. This causes the product to stop boiling and bake onto the tubes.
Mitigation relies on robust HMI (Human-Machine Interface) design featuring automated startup, steady-state, and shutdown sequences. Facilities should mandate vendor-supplied simulator training for all operators. Phased commissioning ensures the control loops are properly tuned and the staff is familiar with the system's dynamic responses.
A standard phased commissioning sequence includes:
Dry testing of all vacuum pumps and mechanical seals.
Cold water trials to verify pump flow rates and CIP spray ball coverage.
Hot water trials to tune PID loops for steam valves and vacuum controllers.
Dilute product trials to establish baseline boiling point elevation data.
Full concentration trials to verify final Brix levels and discharge pump performance.
Conduct a pilot-scale evaporation test with the exact feed material to determine boiling point elevation (BPE) limits and observe fouling rates on heat transfer surfaces.
Perform a comprehensive site utility audit, measuring exact boiler capacity, steam pressure stability, and cooling tower approach temperatures.
Define the maximum allowable thermal residence time for the specific API or juice profile to establish a hard limit on the number of effects.
Request detailed mass and energy balance models from equipment manufacturers based on your specific feed flow rates and target concentration levels.
A: Steam economy measures kilograms of water evaporated per kilogram of steam used. A single-effect system has an economy of roughly 0.9. A double-effect system reuses vapor from the first stage to heat the second, increasing the steam economy to approximately 1.8 to 2.0. This effectively halves your steam consumption.
A: It is generally not recommended for the final concentration stage. High viscosity severely reduces heat transfer efficiency and increases Boiling Point Elevation (BPE). Double-effect systems are better suited for the initial concentration, often paired with a single-effect wiped-film finisher for the highly viscous final stage.
A: As solids concentration increases, the liquid's boiling point rises above that of pure water. This BPE reduces the temperature difference available to drive evaporation in the subsequent effect. If BPE is too high, the vapor from the first effect won't be hot enough to boil the liquid in the second.
A: By operating under negative pressure, the boiling point of water is artificially lowered from 100°C to between 40°C and 60°C. This low-temperature evaporation removes water rapidly without triggering Maillard reactions, caramelization, or the destruction of heat-sensitive vitamins and flavor compounds.
A: Multi-effect systems have significantly more piping, transfer pumps, and heat exchange surface area. Ensuring adequate flow velocity and chemical coverage across all interconnected vessels without manual intervention requires highly complex automated valving and larger CIP supply skids.
A: Volatile flavor compounds evaporate alongside water during the initial flashing process. An essence recovery unit, consisting of a fractional distillation column and partial condensers, is integrated into the vapor line. It separates the aromatic volatiles from the water vapor, condensing them into a concentrated liquid essence for re-blending.
