316L Sanitary Piping: Surface Finish, Welding, and Material Traceability

Failing a system validation audit due to improper piping specifications carries severe financial and regulatory consequences. Biofilm buildup and undocumented materials routinely trigger FDA warning letters, forcing facilities to discard entire production batches. Engineers and procurement teams face a continuous challenge. You must balance upfront material and installation considerations against long-term cleanability. High-purity environments demand strict regulatory compliance and exceptional corrosion resistance.

Let us clarify the terminology before proceeding. Field teams often use terms interchangeably. However, precise dimensional language remains vital for procurement and orbital weld fit-up. "Sanitary pipe" is typically sized by Nominal Pipe Size (NPS). Conversely, "sanitary tubing" is sized by Outside Diameter (OD). A two-inch pipe and a two-inch tube possess different physical dimensions. You must specify the exact sizing standard to ensure proper system integration. We will evaluate a structured framework for specifying high-purity stainless steel systems.

• Material Selection: The "L" in 316L (low carbon) is non-negotiable for sanitary applications, as it prevents carbide precipitation and sensitization during welding, ensuring long-term corrosion resistance.

• Surface Finish: Specifying the correct Roughness Average (Ra) and choosing between mechanical polishing and electropolishing directly dictates the system's susceptibility to bacterial adhesion and clean-in-place (CIP) efficacy.

• Weld Integrity: The core principle of a sanitary weld is that it must be effortlessly cleanable. This requires precise internal purging, zero inclusions or crevices, and rigorous boroscopic inspection to guarantee a smooth, continuous fluid path.

• Traceability: Complete sanitary pipe material traceability—driven by permanent heat numbers and corresponding Material Test Reports (MTRs)—is a mandatory requirement for FDA and ASME BPE compliance.

The Role of 316L in Hygienic Process Piping

Pharmaceutical, biotech, and food manufacturing facilities demand strict baseline success criteria. You must guarantee zero contamination across all fluid paths. Systems require broad chemical compatibility to withstand aggressive cleaning agents. High thermal stability is necessary for sterilization cycles. hygienic process piping must meet these stringent operational demands without degradation over decades of continuous use. Any compromise in material selection directly threatens product viability and patient safety.

Metallurgical differences dictate application limits. Engineers constantly evaluate the decision matrix between 304 and 316L stainless steel. Standard 304 stainless steel contains chromium and nickel. It provides adequate baseline corrosion resistance for general industrial use. However, it lacks the specific alloying elements required for severe chemical environments. 304 suits only non-critical, moderate-hygiene utility lines. You might use it for chilled water, compressed air distribution, or basic glycol cooling loops. Exposing 304 to high-temperature chlorides or aggressive sanitizers leads to rapid pitting and system failure.

High-purity systems mandate a superior alloy. 316L contains a maximum of 0.03% carbon. This low carbon content serves a vital metallurgical function. It mitigates sensitization during the welding process. Sensitization occurs when chromium carbide precipitates in the heat-affected zone (HAZ). When welding temperatures hit the 800°F to 1500°F range, high heat draws chromium away from the grain boundaries. This leaves the metal vulnerable to rapid localized corrosion. The "L" designation guarantees this low carbon threshold. It ensures the weld zone remains as corrosion-resistant as the base metal.

Aggressive Clean-in-Place (CIP) and Sterilize-in-Place (SIP) chemicals attack metal surfaces daily. Sodium hydroxide and nitric acid strip away organic residues. These chemicals also test the limits of the passive oxide layer. 316L contains between 2% and 3% molybdenum. This specific element significantly boosts resistance against pitting. It prevents crevice corrosion from chloride exposure. Chlorides exist in many process fluids, municipal water feeds, and cleaning solutions. Molybdenum fortifies the passive layer, making 316L the undisputed standard for critical process lines.

Evaluating Surface Finish Requirements for 316L Sanitary Pipe

Surface roughness directly controls cleanability. We measure this microscopic topography using Roughness Average (Ra). Profilometers drag a diamond stylus across the metal to calculate Ra values. We express these values in micro-inches or micrometers. Lower Ra values eliminate microscopic peaks and valleys. Pathogens hide in these tiny crevices. A smoother surface prevents bacterial adhesion. It allows CIP fluids to sweep away contaminants effortlessly. You cannot rely on visual inspection to determine surface roughness; a mirror-like finish can still harbor microscopic defects.

Surface finishes impact hygiene, corrosion resistance, and visual inspection capabilities. Standard mill finishes look shiny to the naked eye. Finishes like 2B or Bright Annealed (BA) serve general industrial purposes well. However, they lack the microscopic smoothness required for true sanitary applications. A shiny surface does not guarantee a hygienic surface. You must evaluate the actual Ra measurement rather than relying on visual aesthetics. Mill finishes retain the directional rolling marks from the manufacturing process, which act as traps for organic material.

Mechanical polishing utilizes abrasives to smooth the metal. Common finishes include the No. 4 polish. This typically achieves a 20 Ra to 32 Ra finish. Mechanical polishing physically tears and smears the surface metal. It leaves microscopic directional lines and creates a disturbed layer of metal known as the Beilby layer. These finishes suit moderate hygiene expectations. Dairy, brewing, and cosmetics facilities rely heavily on mechanically polished 316L sanitary pipe. The process removes macro-defects but leaves a microscopically disturbed layer that can still trap stubborn residues.

Pharmaceutical water-for-injection (WFI) systems require electropolishing (EP). This electrochemical process removes surface material entirely. The pipe acts as an anode in an electrolytic bath of phosphoric and sulfuric acid. Current flows through the chemical solution. The process dissolves microscopic peaks faster than valleys. It removes the smeared Beilby layer completely. More importantly, it enriches the chromium-to-iron ratio on the surface. The result is an ultra-smooth, passive, and featureless surface. Electropolishing reduces the total surface area. It significantly improves corrosion resistance and cleanability.

Engineers face implementation risks during the specification phase. Over-specifying drives up unnecessary project costs. You do not need electropolished piping for a basic glycol cooling loop. Under-specifying invites biofilm formation. It increases product recall risks. Standard mill finishes fail validation in true sanitary applications. You must match the surface finish precisely to the process requirements.

1. Determine the fluid characteristics and required cleanability level for the specific process line.

2. Specify the maximum allowable Ra value in the engineering design documents.

3. Select the appropriate finishing method (mechanical vs. electropolishing) based on the Ra requirement and corrosion resistance needs.

4. Require the supplier to provide certified profilometer readings for all delivered pipe batches.

5. Perform random on-site profilometer testing during material receiving to verify supplier claims.

Sanitary Welding Standards and Execution

Cleanability defines a sanitary weld. The joint must be perfectly smooth and flush with the base material. It must remain entirely free from inclusions, voids, or crevices. Bacteria colonize these defects rapidly. A single pit can ruin an entire production batch. The core principle dictates that the fluid path must remain continuous. Any disruption in the flow dynamics creates a potential harbor for contamination. A sanitary weld should be virtually indistinguishable from the base pipe when inspected internally.

Installers utilize two primary solution categories for high-purity systems. Orbital welding provides automated, highly repeatable results. The weld head clamps around the joint. A tungsten electrode rotates around the seam. The machine controls current, travel speed, and shielding gas automatically. This method is the absolute standard for pharmaceutical installations. Manual TIG welding remains necessary for complex spool pieces. Welders use manual techniques for tight clearances where orbital heads cannot fit. Manual welding requires exceptional skill to maintain the required internal flushness without adding filler wire.

The physical criteria for a passing weld are strict. You need 100% penetration through the wall thickness. The interior profile must remain flush, with maximum allowable convexity or concavity strictly defined by ASME BPE standards. Inspectors tolerate zero porosity. There must be a complete lack of oxidation. The industry calls this internal oxidation "sugaring." Sugaring creates a rough, porous surface that traps bacteria immediately. Pits, cracks, and incomplete fusion result in automatic inspection failures.

Back-purging with high-purity argon (99.999%) is mandatory. Oxygen inside the pipe causes sugaring during the welding process. Field crews often use a dual flowmeter setup. This allows simultaneous control of torch shielding gas and internal purge gas. Welders cap the pipe ends using purge dams. They flow argon through the system to displace atmospheric air. Oxygen analyzers ensure the internal atmosphere is completely free of oxygen. Welders only strike an arc when oxygen levels drop below 10 parts per million (ppm).

Weld integrity evaluation utilizes visual inspection, boroscopy, and radiography. Boroscopy involves internal video inspection. Inspectors snake a high-resolution camera through the piping network. They record the condition of every internal weld seam. Radiography uses X-rays to detect internal voids or lack of fusion. Projects balance the cost of 100% boroscopic logging against percentage-based sampling. Critical pharmaceutical lines demand 100% inspection logs for validation packages. You cannot validate a WFI system without complete video evidence of every orbital weld.

Sanitary Pipe Material Traceability and Compliance

Regulatory bodies enforce stringent documentation requirements. ASME BPE (Bioprocessing Equipment) and FDA cGMP guidelines mandate complete transparency. You must prove the exact chemical composition of every wetted component. sanitary pipe material traceability ensures system integrity. Facilities cannot pass validation audits without unbroken documentation chains. Missing paperwork renders physical piping useless in a regulated environment. If you cannot prove what the metal is, the FDA assumes it is non-compliant.

Material Test Reports (MTRs) form the foundation of this compliance. An MTR contains the exact chemical composition of the steel heat. It lists the percentages of carbon, chromium, nickel, molybdenum, sulfur, and phosphorus. It details mechanical properties like tensile strength, yield strength, and elongation. The report includes specific heat treatment data. You must verify its authenticity against the physical pipe upon delivery. The numbers on the paperwork must perfectly match the numbers on the metal.

1. Receive the physical material and isolate it in a designated quarantine area.

2. Locate the permanent heat number etched or stamped on the component.

3. Cross-reference the physical heat number with the provided Material Test Report (MTR).

4. Verify that the chemical composition listed on the MTR meets the strict requirements for 316L (e.g., Carbon < 0.03%).

5. Release the material to the active construction staging area only after full documentation verification.

Mills permanently etch or stamp heat numbers on every stick of pipe. They mark every single fitting and valve. This creates a direct, unbroken link from the steel mill to the final installed system. Field crews log these heat numbers during installation. They map every component on isometric drawings. This weld mapping process proves exactly where each piece of metal resides in the facility. If a specific heat of steel is later recalled by the mill, the facility can pinpoint exactly which spool pieces need replacement.

Sourcing from unverified mills introduces severe implementation risks. Counterfeit materials plague the global supply chain. Falsified MTRs hide substandard alloy compositions. A supplier might substitute 304 for 316L. They might provide metal with high carbon content. These substitutions lead to catastrophic system rouging. Rouging is a form of surface corrosion that contaminates high-purity water systems with iron oxide particulates. It requires expensive chemical passivation to remediate. Strict traceability prevents these costly failures by keeping substandard metal out of the facility entirely.

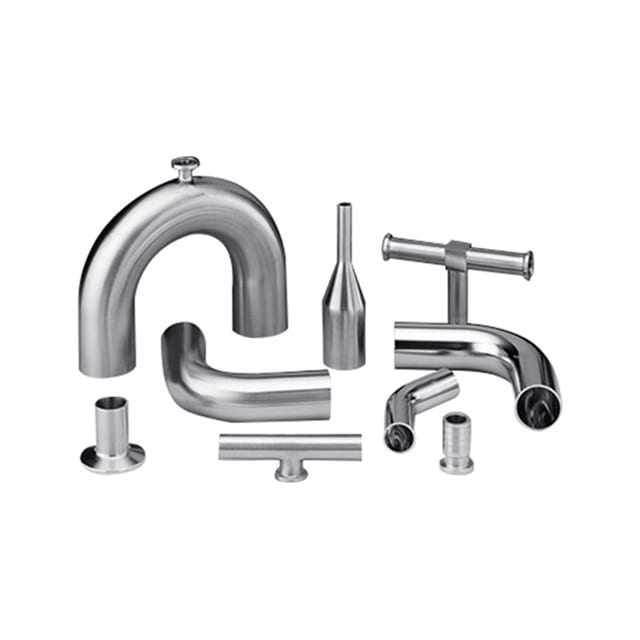

Sourcing Sanitary Pipe Fittings for Pharma and Biotech

Procurement teams must audit suppliers using a strict evaluation framework. You cannot treat high-purity components as generic commodities. Key criteria include ISO 9001 certification. Suppliers must demonstrate robust quality management systems. In-house passivation capabilities ensure components arrive ready for installation. Cleanroom packaging protocols prevent contamination during transit. Digital MTR management systems streamline compliance documentation for your validation team. A supplier's ability to produce paperwork quickly is just as important as their ability to produce the metal.

Dimensional consistency is paramount for system integration. Ovality and wall thickness must align perfectly. You must maintain strict tolerances across pipes, valves, and sanitary pipe fittings for pharma. Inconsistent wall thickness causes orbital weld failures. The automated welder assumes a uniform metal thickness. If a fitting is too thin, the arc burns through. If it is too thick, you get incomplete penetration. Precise fit-up dictates the success of the entire welding operation. Even a few thousandths of an inch in wall thickness variation will force the welding operator to abandon the automated program and attempt a manual repair.

Evaluate the long-term operational impacts when selecting vendors. Contrast the initial savings of commodity fittings against lifecycle validation efforts. Cheap fittings often possess poor surface finishes. They cause extensive weld rework due to dimensional inaccuracies. Rework extends validation timelines significantly. Poor quality components introduce potential batch contamination risks. Investing in certified, high-tolerance components ensures smooth installation and rapid regulatory approval. The cost of a single failed pharmaceutical batch dwarfs the savings gained from buying substandard elbows and tees.

Packaging protocols matter immensely. Premium suppliers cap the ends of every fitting. They seal components in heavy-gauge plastic sleeving. This prevents dust, moisture, and scratches during shipping. Field crews only open the packaging immediately before fit-up. This maintains the integrity of the electropolished surface. Substandard packaging leads to surface damage. Scratches require manual polishing in the field, which destroys the certified Ra value and introduces foreign abrasive particles into the fluid path.

Vendor responsiveness directly impacts project schedules. You need immediate access to documentation. Missing MTRs halt installation progress. Quality suppliers maintain searchable digital databases. They provide documentation packages alongside physical deliveries. This alignment between physical goods and digital records accelerates the turnover process. It allows validation engineers to compile their final reports without delay. When a project nears completion, the speed of documentation turnover dictates the facility's time-to-market.

Conclusion

• Audit your current piping specifications against the latest ASME BPE standards to identify compliance gaps.

• Request sample Material Test Reports (MTRs) from potential vendors to verify their traceability and documentation practices.

• Implement mandatory dual flowmeter setups and oxygen analyzer testing for all field welding operations.

• Establish a digital weld mapping protocol to track heat numbers and boroscope logs during installation.

FAQ

Q: What is the acceptable Ra value for pharmaceutical hygienic process piping?

A: Pharmaceutical systems typically require a Roughness Average (Ra) of 15 micro-inches or lower. Water-for-Injection (WFI) systems often mandate electropolished finishes achieving 10 to 15 Ra. This ultra-smooth surface prevents bacterial adhesion and ensures effective clean-in-place (CIP) operations.

Q: Why is electropolishing preferred over mechanical polishing for 316L sanitary pipe?

A: Electropolishing removes microscopic peaks and valleys entirely through electrochemical dissolution. Mechanical polishing merely smears the metal, leaving microscopic directional lines. Electropolishing also enriches the chromium oxide layer. This creates a passive, highly corrosion-resistant surface ideal for critical pharmaceutical applications.

Q: What is the difference between sanitary pipe and sanitary tubing?

A: Sanitary pipe is measured by Nominal Pipe Size (NPS), which relates to the internal diameter and schedule (wall thickness). Sanitary tubing is measured by its exact Outside Diameter (OD). High-purity systems predominantly use OD-sized tubing to ensure precise fit-up for orbital welding.

Q: How do you verify sanitary pipe material traceability during installation?

A: Field crews verify traceability by matching the permanent heat number etched on every pipe and fitting to the corresponding Material Test Report (MTR). Installers log these heat numbers on isometric drawings. This creates a comprehensive weld map for final system validation.

Q: What causes rouging in 316L stainless steel systems, and how is it prevented?

A: Rouging is surface corrosion caused by iron contamination, poor passivation, or aggressive high-temperature fluids degrading the passive layer. You prevent it by specifying low-carbon 316L, ensuring high-quality electropolished finishes, maintaining strict welding purge protocols, and performing regular chemical passivation.

Q: Can 304L stainless steel be used instead of 316L for sanitary applications?

A: 304L lacks molybdenum, making it highly susceptible to pitting and chloride corrosion from aggressive cleaning chemicals. It is generally unacceptable for critical product-contact lines. 304L is only suitable for non-critical utility lines, such as chilled water or compressed air distribution.

Q: What specific defects will cause a sanitary weld to fail inspection?

A: A sanitary weld fails if inspectors find incomplete penetration, internal porosity, pits, cracks, or misalignment. Any internal oxidation, commonly known as sugaring, results in an automatic failure. The internal weld profile must remain perfectly flush and smooth to pass boroscopic inspection.
