A single batch failure, product recall, or failed compliance audit due to microbial contamination costs far more than specifying the correct fluid control components upfront. Engineers and plant managers face a constant balancing act. You must meet strict hygienic regulatory standards like 3-A, FDA, ASME BPE, and EHEDG while maintaining operational throughput. Clean-in-place (CIP) compatibility and minimizing unplanned downtime remain top priorities on the plant floor. Selecting the optimal fluid control mechanism requires a rigorous evaluation of valve topologies, material compatibility, connection standards, and actuation methods. This guide breaks down the technical specifications, application-specific trade-offs, and implementation realities for specifying sanitary valves in food, beverage, and pharmaceutical environments.
Valve selection must strictly align with specific fluid rheology (viscosity, particulates, shear sensitivity) and sterilization protocols (CIP/SIP) to prevent dead legs and cross-contamination.
Different valve topologies—such as the sanitary butterfly valve or sanitary diaphragm valve—offer distinct, non-interchangeable trade-offs between flow capacity, precision throttling, and pressure ratings.
Integrating an automated sanitary valve system reduces human error and optimizes batch consistency, but requires precise actuator sizing and compatible feedback networks.
Establishing a reliable hygienic processing line begins with strict adherence to baseline engineering criteria. Fluid control components must meet rigorous standards to prevent microbial growth and ensure product safety. You cannot compromise on material metallurgy or surface finish in these environments. Standard industrial components will fail swab tests and harbor bacteria.
Navigating the regulatory requirements demands a deep understanding of industry-specific mandates. Evaluating requirements for FDA CFR Title 21 ensures that all wetted elastomers and plastics remain safe for food contact without leaching toxins. Facilities must also adhere to 3-A Sanitary Standards (SSI) for dairy and food processing, which dictate specific radii for internal corners to ensure cleanability. EHEDG guidelines provide strict design criteria for European markets, focusing heavily on self-draining geometries.
Biopharmaceutical applications demand compliance with ASME BPE (Bioprocessing Equipment) standards and USP Class VI certifications. These frameworks dictate everything from drainability to polymer toxicity. Traceability remains a non-negotiable aspect of regulatory compliance. You must secure Material Test Reports (MTRs) for all wetted metal parts. MTRs verify the exact chemical composition of the stainless steel—typically 316L—proving the molybdenum content is sufficient to resist pitting from chloride-heavy CIP fluids. This documentation proves essential during compliance audits. Without proper MTRs, validating the integrity of your process line becomes impossible.
Surface finish directly impacts the cleanability of your process piping. Defining acceptable Ra (Roughness Average) values for wetted parts is a mandatory engineering step. Standard food and beverage applications typically require Ra values between 15 and 32 µin. Biopharmaceutical processes often demand tighter tolerances, sometimes dropping below 15 µin to prevent biofilm accumulation. Smoother surfaces reduce the microscopic crevices where bacteria anchor and multiply.
Achieving these Ra values involves different polishing techniques. Mechanical polishing uses abrasives to remove gross surface imperfections. However, mechanical polishing smears the metal, leaving microscopic folds that trap contaminants. Electropolishing addresses this issue by removing the outer layer of metal electrochemically. This process creates a passive, chromium-rich layer that resists bacterial adhesion and rouge formation. Electropolished surfaces offer superior cleanability for highly sensitive media like Water for Injection (WFI).
Connecting valves to your process piping requires balancing maintenance accessibility with hygiene. Evaluating the trade-offs between different connection types helps optimize line performance. Tri-Clamp connections allow for rapid disassembly and quick maintenance. However, they carry a higher risk of gasket intrusion if operators over-torque the clamp. Extruded gaskets create physical dams in the flow path, trapping bacteria and compromising CIP effectiveness.
Orbital weld ends offer a permanent, zero-leakage solution. These connections eliminate gaskets entirely, making them ideal for critical biopharma lines. The drawback involves a complete lack of modularity; replacing a welded valve requires cutting the pipe and re-welding, which demands purging the line with argon. Aseptic flanges, such as DIN or SMS standards, provide a middle ground. They offer robust sealing mechanisms with metal-to-metal stops to prevent gasket over-compression, though they require more wrench time to assemble than standard Tri-Clamps.
Modern process lines rely on automated cleaning protocols. Ensuring valve designs allow for high-velocity chemical flushing is mandatory. Clean-in-Place (CIP) systems use turbulent flow—typically requiring a minimum fluid velocity of 5 feet per second—to scour internal surfaces. Valves must feature smooth internal geometries without sharp corners or dead spaces. Sterilize-in-Place (SIP) protocols introduce high-temperature steam, usually at 121°C or 135°C, to eradicate remaining pathogens.
Components must withstand these extreme thermal cycles without requiring manual disassembly. Elastomers expand and contract during SIP. If a valve design does not account for this thermal expansion, seals will extrude or fail prematurely. Proper self-draining angles are also required to ensure no chemical residue or condensate remains after the cleaning cycle completes.
Selecting the correct valve topology requires matching mechanical capabilities to specific process demands. No single design handles every application effectively. Understanding the distinct mechanisms and limitations of each type prevents costly specification errors and line failures.

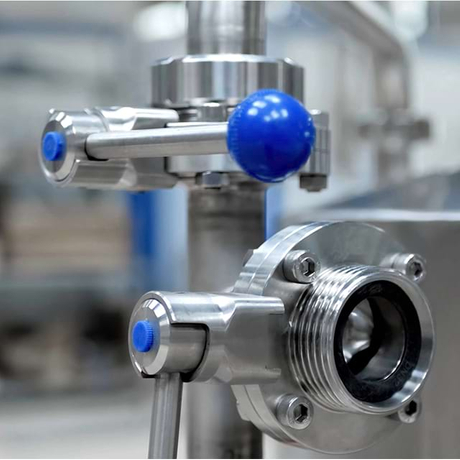

The sanitary butterfly valve remains a staple in many processing facilities. Its mechanism relies on a central disc that rotates a quarter-turn to open or close the flow path. This design is highly efficient for high-volume, low-pressure, and low-viscosity applications. Brewing, dairy transfer, and bulk water routing frequently utilize these components due to their compact footprint, low weight, and rapid actuation.
Despite their popularity, butterfly designs possess specific limitations. They offer poor throttling capabilities, making them unsuitable for precise flow control. The disc sits directly in the flow path, which damages shear-sensitive media like live cell cultures. They are also susceptible to pressure hammers if closed too quickly against high-velocity flow. Furthermore, abrasive media or highly viscous pastes easily damage the peripheral elastomer seal, leading to bypass leakage. Most butterfly designs max out at 150 psi line pressure.
When absolute purity is required, the sanitary diaphragm valve serves as the industry standard. This linear motion valve utilizes a flexible elastomer or PTFE diaphragm that presses against a machined weir to stop flow. This mechanism offers zero dead legs and isolates all moving mechanical parts from the process media. It provides exceptional throttling capabilities and remains the standard for biopharma, high-purity water (WFI), and aseptic processing.
The primary limitation of the diaphragm design involves flow restriction. They exhibit lower overall flow rates (Cv) compared to rotary valves of the same line size. The weir inherently creates a pressure drop across the valve body. They also carry strict pressure limitations, as high line pressures can rupture the flexible diaphragm. Operators must implement frequent monitoring programs to check for diaphragm wear and schedule preventative replacements based on cycle counts.
Ball valves provide a full-port flow path, minimizing pressure drops across the line. This mechanism handles viscous fluids, heavy particulates, and high-pressure applications effectively. When fully open, the internal bore matches the pipe diameter exactly, allowing thick syrups, meat slurries, or fruit preparations to pass without obstruction.
Standard industrial ball valves trap media between the rotating ball and the valve body. In hygienic applications, this trapped fluid creates a severe contamination risk. Hygienic applications strictly require cavity-filled PTFE seats. These specialized seats encapsulate the ball entirely, eliminating voids where microbial growth occurs. The trade-off is that cavity-filled seats significantly increase the actuation torque required to turn the ball, necessitating larger, more expensive actuators.
Continuous processing matrices rely heavily on mixproof technology. This mechanism allows two different fluids to flow through the same valve simultaneously without cross-contamination. For example, raw milk can flow through the upper chamber while caustic CIP solution cleans the lower chamber. A physical separation cavity between the two seats safely drains any potential leakage to the atmosphere, guaranteeing the two fluids never mix.
The complexity of mixproof designs introduces several limitations. They carry a high initial capital cost compared to single-seat alternatives. They also require a large physical footprint, necessitating careful piping matrix design and heavy structural supports. Maintenance requires specialized tooling and extensive training, as the internal spring and seal assemblies are highly complex.
Preventing backflow protects sensitive equipment like positive displacement pumps and filtration skids. Sanitary check valves utilize spring-loaded or gravity-operated designs to allow flow in only one direction. When forward pressure drops, the mechanism closes automatically to prevent reverse flow.
The primary limitation involves cleanability. Spring mechanisms create flow resistance and potential entrapment areas. If the internal components are not strictly designed to hygienic standards, bacteria colonize the spring coils. Gravity-operated flapper designs eliminate the spring but must be installed in specific vertical orientations to function correctly.
Quality assurance requires extracting process samples without introducing environmental contaminants into the main line. Aseptic sampling valves are small-bore components designed specifically for this task. They allow operators to draw QA/QC samples safely, often incorporating a secondary port for localized steam sterilization before and after the sample is taken.
These components are highly sensitive to SIP thermal cycling. The small elastomer seals degrade quickly under repeated steam exposure. They require meticulous manual operation to ensure the sterilization protocol is followed correctly. Alternatively, specialized micro-actuation systems can automate the sampling process, though this adds wiring complexity to the installation.
Valve Type | Primary Mechanism | Ideal Use Cases | Key Limitations |
|---|---|---|---|
Butterfly | Quarter-turn rotary disc | High-volume, low-viscosity transfer | Poor throttling; risk of pressure hammer |
Diaphragm | Linear motion flexible membrane | Biopharma, WFI, precise throttling | Lower flow capacity (Cv); pressure limits |
Cavity-Filled Ball | Quarter-turn full port ball | Viscous media, particulates, high pressure | High actuation torque; heavy physical weight |
Mixproof | Double-seat with leakage chamber | Simultaneous product and CIP routing | Complex maintenance; large footprint |
Successful system design requires matching specific valve topologies to your exact process outcomes. Relying on guesswork or copying legacy piping layouts leads to inefficiencies and failed audits. You must evaluate fluid dynamics, material science, and supply chain reliability to make informed engineering decisions.
Understanding fluid rheology is the first step in component selection. You must map valve types to the specific media flowing through the line. Handling suspended solids requires full-port designs like cavity-filled ball valves to prevent clogging and bridging. Shear-sensitive proteins, common in bioprocessing, demand gentle handling. Diaphragm designs minimize shear stress, protecting delicate cellular structures. High-viscosity syrups require valves that will not create excessive pressure drops or require massive actuation force to close against thick media.
Fluid dynamics dictate the physical sizing of your components. Calculating precise Cv (flow coefficient) requirements ensures optimal system performance. Oversizing a valve reduces its control resolution, making precise throttling impossible. Undersizing causes excessive fluid velocity, leading to cavitation, severe pressure drops, and premature mechanical wear on the valve seats.
Thermal dynamics also play a major role. Evaluating the impact of thermal cycling during SIP is mandatory. High-temperature steam causes stainless steel valve bodies to expand. If the design does not accommodate this expansion, seal integrity fails. Components must maintain tight shut-off capabilities across the entire temperature spectrum of your process, from chilled glycol lines to 135°C steam lines.
The lifespan of your fluid control system depends heavily on elastomer selection. A technical comparison of available materials reveals distinct operational windows. EPDM offers excellent resistance to hot water and steam, making it a standard choice for basic CIP/SIP lines. FKM (Viton) provides superior resistance to oils and animal fats, which is critical in dairy and meat processing. PTFE (Teflon) offers nearly universal chemical compatibility and handles extreme temperatures, but lacks the elasticity of rubber and requires backing cushions. Silicone provides high purity and flexibility but degrades quickly when exposed to aggressive caustics.
Elastomer Material | Temperature Range | Best Applications | Chemical Vulnerabilities |
|---|---|---|---|
EPDM | -30°C to 140°C | Steam, hot water, dilute acids | Animal fats, mineral oils |
FKM (Viton) | -20°C to 200°C | Oils, fats, high temperatures | Steam, hot caustics |
PTFE (Teflon) | -50°C to 200°C | Aggressive chemicals, high purity | Lacks elasticity; subject to cold flow |
Silicone | -50°C to 180°C | High purity, low temperature flexibility | Strong acids, aggressive CIP caustics |
Matching elastomers to both process media and aggressive CIP chemicals is essential. Caustic soda (sodium hydroxide), nitric acid, and peracetic acid will rapidly destroy incompatible seals. Review chemical compatibility charts meticulously before specifying any elastomer for a hygienic line.
Technical specifications mean little if the components cannot be sourced or supported. Assessing manufacturer lead times ensures your project stays on schedule. The availability of OEM spare parts dictates your ability to recover from unexpected failures. Furthermore, evaluate the vendor's ability to provide comprehensive documentation packages. Factory Acceptance Testing (FAT), Site Acceptance Testing (SAT), and MTRs are deliverables that your vendor must supply reliably to pass FDA or EHEDG audits.
Manual operation introduces human error, inconsistent batch yields, and safety risks. Transitioning to an automated infrastructure optimizes process control. Implementing an automated sanitary valve network requires careful evaluation of actuation technologies and digital integration strategies.
Choosing the right actuator depends on your facility's infrastructure and process requirements. Evaluating pneumatic actuators reveals their suitability for rapid response times. They offer fail-safe configurations, such as spring-return normally closed or normally open setups. If facility air pressure fails, the heavy internal spring forces the valve into a safe position. However, pneumatic systems require extensive compressed air infrastructure, which must be clean, dry, and regulated (typically to 80 psi) to prevent internal actuator corrosion.
Assessing electric actuators highlights their advantages for precise modulating control. They excel in applications requiring exact flow positioning via 4-20mA signals. Electric actuators require low-infrastructure installations, needing only standard power and control wiring. They operate quietly and eliminate the energy losses associated with compressed air leaks, though they generally actuate slower than pneumatic counterparts.
Automation relies on accurate position feedback. The control system must know whether a valve is open, closed, or modulating. Integrating proximity switches and microswitches provides basic discrete feedback. Modern systems utilize smart control heads mounted directly on the actuator. These heads house pilot solenoids, position sensors, and visual LED indicators in a washdown-rated IP69K enclosure.
Connecting an automated system to plant-wide architectures unlocks advanced capabilities. Utilizing PLCs, AS-i networks, or IO-Link protocols allows for real-time diagnostics. These digital networks reduce wiring complexity by daisy-chaining components. The system monitors stroke times and cycle counts, alerting operators to potential seal failures before they cause a batch loss.
Justifying the upgrade to automated fluid control requires analyzing operational efficiencies. Calculating the payback period involves looking at labor reduction. Automated routing eliminates the need for operators to manually turn handles or switch transfer panels. It also eliminates manual routing errors, which cause cross-contamination or dangerous pressure build-ups. Batch repeatability improves significantly when automated systems control precise flow rates and timing. Finally, automated CIP validation ensures cleaning protocols execute identically every time, providing reliable data for compliance reporting.
Even the best-specified components fail if installed incorrectly or maintained poorly. Understanding common implementation risks allows you to design robust mitigation strategies. Proactive maintenance prevents minor issues from escalating into catastrophic process failures.
Dead legs represent one of the most severe risks in hygienic processing. A dead leg is a stagnant zone in the piping where CIP fluids cannot reach with sufficient velocity. These areas allow product to stagnate, leading to rapid biofilm formation. Once a biofilm establishes itself, standard chemical flushing rarely removes it.
Mitigation requires strict adherence to the L/D (Length to Diameter) ratio rule. Industry standards typically mandate an L/D ratio of less than 2:1 for any branch or tee. Furthermore, you must ensure valves are installed at the correct angle for self-draining. If a valve body holds even a few drops of condensate after SIP, microbial growth remains a threat.
Improper assembly of hygienic connections frequently causes contamination issues. Over-torquing Tri-Clamp connections causes elastomers to extrude into the flow path. This extruded rubber creates a physical dam that traps bacteria and shields them from CIP chemicals.
Mitigation involves standardizing assembly procedures. Utilizing torque-limiting clamps prevents operators from over-tightening connections. For critical aseptic zones where gasket intrusion cannot be tolerated, specifying flanged or orbital welded connections eliminates the risk entirely.
All elastomers eventually degrade. Chemical attack from harsh CIP fluids or thermal degradation from repeated SIP cycles leads to hardening, cracking, or swelling. A failed seal results in external leaks or, more dangerously, internal product contamination.
Mitigation requires moving away from reactive maintenance. Establishing preventative maintenance schedules based on cycle counts and chemical exposure hours yields better results than relying on arbitrary calendar days. Smart control heads track these metrics automatically, alerting maintenance teams exactly when a seal replacement is due.
Incorrectly sizing an actuator compromises system reliability. Undersized actuators lack the torque to close against high line pressure, resulting in bypass leakage. Conversely, oversized actuators apply excessive force, causing premature wear on valve stems and internal components.
Mitigation requires rigorous engineering calculations. You must calculate torque requirements based on maximum differential pressure, media friction, and cavity-filler resistance. Relying solely on the line size to dictate actuator selection frequently results in sizing errors. Consult with manufacturers to ensure the actuator torque curve matches the valve's requirements throughout the entire stroke.
Audit your current process lines to identify specific zones experiencing frequent seal degradation or failing routine CIP swab tests.
Calculate the exact flow coefficient (Cv) and maximum differential pressure for your specific media before ordering replacement components.
Request and verify Material Test Reports (MTRs) from your vendor for all wetted stainless steel parts prior to installation.
Upgrade manual routing points to automated control heads to eliminate human error and standardize your batch yields.
A: Sanitary designs feature crevice-free internal geometries, polished surfaces with specific Ra values, and FDA-compliant elastomers to prevent microbial growth. Standard industrial valves contain dead spaces, exposed threads, and rough castings where product stagnates. You cannot use standard valves in hygienic processing because they trap bacteria and fail clean-in-place (CIP) protocols.
A: Specify a diaphragm design when handling shear-sensitive media, high-purity water (WFI), or when your process requires precise flow throttling. Diaphragm designs isolate moving parts from the fluid. Butterfly designs work better for high-volume, low-pressure transfer of low-viscosity fluids where precise control is unnecessary and pressure drops must remain minimal.
A: Proper sizing requires calculating the flow coefficient (Cv) based on fluid viscosity, specific gravity, and desired flow rate. You must also calculate the actuator torque requirements based on the maximum differential pressure and the friction of the chosen elastomer seats. Never size a valve based solely on the existing pipe diameter.
A: 3-A Sanitary Standards govern equipment design in the dairy and food industries to ensure baseline cleanability and safe food handling. ASME BPE (Bioprocessing Equipment) provides much stricter guidelines for biopharmaceutical design. ASME BPE focuses on ultra-pure systems, specific weld quality criteria, and strict dead-leg elimination to guarantee absolute sterility.
A: Replacement intervals depend on operational cycle counts, thermal exposure hours during sterilization, and the aggressiveness of your CIP chemicals. Do not rely on arbitrary calendar days. Track these metrics using smart control heads or plant maintenance software. High-temperature or highly caustic lines require much more frequent preventative replacements.
A: A dead leg is a stagnant section of piping where fluid stops moving because CIP velocity cannot reach it. This leads to rapid bacterial growth. Valves create dead legs if installed at improper drain angles or if branch connections exceed the acceptable Length-to-Diameter (L/D) ratio, typically mandated as less than 2:1.
