Sanitary Manhole Selection for Storage and Mixing Tanks: Pressure, Access, and Cleaning

Tank access points represent the most vulnerable intersection in any sanitary processing system. You need to get inside the vessel for inspection, manual scrubbing, and ingredient additions. But every time you cut a hole in a perfectly sealed tank, you introduce massive risks. You compromise pressure containment, threaten operator safety, and create potential dead legs where bacteria thrive. Plant managers constantly fight this battle between operational accessibility and strict hygienic compliance. You cannot just slap a generic hatch on a vessel and expect it to hold up to aggressive Clean-in-Place (CIP) cycles or high-temperature sterilization. Specifying the correct access port requires matching the hardware to your exact process realities. You must evaluate hydrostatic pressure ratings, gasket chemical compatibility, surface finishes, and structural orientations. A poorly specified closure ruins entire batches and causes dangerous blowouts. A properly engineered sanitary manhole guarantees repeatable sterility, mechanical integrity, and safe operator access.

• Pressure Dictates Design: The choice between atmospheric and pressure-rated manholes fundamentally alters the locking mechanism, gasket profile, and structural thickness required to prevent catastrophic failure or seal blowout.

• Cleanability is Non-Negotiable: Shadowless designs and flush-fitting seals are mandatory to prevent product accumulation and ensure repeatable Clean-in-Place (CIP) and Sterilize-in-Place (SIP) cycles.

• Material and Finish Matter: A 316L sanitary manway with a verified Ra (Roughness average) finish is the baseline for preventing crevice corrosion and bacterial adhesion in food, beverage, and pharmaceutical applications.

• Orientation Impacts Safety and Sealing: Top, side, and bottom placements each carry distinct hydrostatic pressure loads and ergonomic considerations that dictate whether an inward or outward opening mechanism is required.

The Role of a Sanitary Manhole in Process Tanks

Defining success for a sanitary access point comes down to three non-negotiable field requirements: zero contamination risk, verifiable seal integrity under dynamic process conditions, and ergonomic operator access. When you seal a vessel, the closure must perform as a seamless extension of the tank wall. Any deviation in structural integrity or surface finish creates a harbor for bacterial growth. A properly engineered access port eliminates these risks by providing a flush, crevice-free transition between the door and the tank collar. If the transition is not perfectly flush, your CIP spray balls will miss the shadow zones, leaving product residue to rot and contaminate the next batch.

Traditional open-lid tanks invite airborne contaminants and fail to contain volatile vapors. If you run an open-top fermenter in a brewery, you fight wild yeast daily. Transitioning to closed-tank architecture fundamentally changes how a facility manages environmental isolation. Closed vessels utilizing engineered access ports provide superior vapor containment and contamination control. They maintain internal atmospheres, protect light-sensitive or oxygen-sensitive products, and still allow necessary human and mechanical access during critical process phases. You get the benefits of a sealed system without losing the ability to physically interact with the product.

The primary functions of these access ports dictate their size, placement, and mechanical design. You do not specify a 24-inch heavy-duty pressure door if you only need to look at the product level. You match the port to the specific operational task:

1. Visual Inspection and Sampling: Requires smaller ports, typically 4 to 8 inches, often equipped with integrated lighting and sight glasses to check product consistency without breaking the pressure seal.

2. Confined Space Entry: Demands larger diameters, typically 18 to 24 inches, to safely accommodate personnel, respirators, and safety harnesses during deep maintenance or manual scrubbing of internal baffles.

3. Manual Ingredient Addition: Requires ergonomic heights and wide openings to prevent spillage when operators dump heavy bags of dry powders or whole fruits into the batch.

4. Mechanical Maintenance: Provides the necessary clearance for routine maintenance, agitator shaft removal, and facilitating efficient bottom draining during product changeovers.

Meeting these functional demands requires strict adherence to regulatory and hygienic frameworks. 3-A Sanitary Standards dictate acceptable radii, drainability, and the absolute elimination of exposed threads in the product zone. FDA compliance governs the specific elastomers used in seals, ensuring they do not leach toxins or degrade into the product. ASME BPE (Bioprocessing Equipment) guidelines establish rigorous criteria for cleanability in pharmaceutical applications, ensuring no microscopic crevices exist where biofilms can proliferate. You evaluate access ports through these regulatory lenses to ensure long-term compliance and avoid failed health inspections.

Evaluating Pressure Requirements: Standard vs. Pressure Manhole for Tanks

Selecting the correct closure begins with categorizing the vessel's operational environment. Unpressurized access points differ drastically from engineered pressure vessels in their structural thickness, locking mechanisms, and gasket profiles. Misapplying an atmospheric door to a pressurized application invites catastrophic failure. Over-engineering an atmospheric tank adds unnecessary weight, making the door dangerously heavy for operators to lift.

Atmospheric and low-pressure applications typically include standard storage tanks, open-top fermenters, and gravity-drained vessels. These operate at or near atmospheric pressure. These applications benefit from quick-opening, clamp-style, or single-hinge designs. These mechanisms are optimized for fast, easy access during frequent internal cleaning, draining, or sampling. Because pressure buildup is not a factor, the primary engineering focus remains on creating a hygienic seal that prevents external contamination from entering the vessel. A simple lever or a single handwheel provides enough clamping force to compress the gasket and keep dust out.

High-pressure and vacuum conditions present entirely different engineering challenges. Pressurized mixing tanks, carbonation vessels, and SIP-sterilized tanks require a robust pressure manhole for tanks. Multi-point locking mechanisms, such as swing bolts or heavy-duty handwheels, are necessary to distribute the mechanical load evenly across the gasket. This uniform clamping force prevents seal blowout under high internal pressure. If you run a carbonated beverage tank at 60 PSI, a standard clamp door will warp and blow the gasket across the room.

Vacuum ratings are equally critical and often overlooked. Sterilize-in-Place (SIP) cooling cycles can pull a rapid vacuum inside a sealed vessel. When steam condenses back into water, the volume drops massively, creating a vacuum. If the manway is not properly specified to resist negative pressure, the facility risks catastrophic vessel implosion or the gasket being sucked directly into the product zone.

Hydrostatic head pressure introduces another layer of complexity that catches many engineers off guard. Liquid volume and specific gravity exert continuous outward force on side and bottom-mounted manholes. A 20-foot tall tank holding thousands of gallons generates significant hydrostatic head pressure at the bottom, pushing outward against the door. This continuous mechanical stress necessitates specific pressure ratings and reinforced locking mechanisms even in nominally "unpressurized" atmospheric tanks. You must calculate the maximum liquid height and specific gravity to ensure the selected door can withstand the static load without deflecting.

Material Selection and Surface Finish Standards

Metallurgical properties link directly to hygienic outcomes and equipment longevity. The material chosen for the access port must withstand the chemical attack of the product, the thermal shock of processing, and the aggressive nature of cleaning chemicals. Compromising on material quality leads directly to surface pitting, rust, and eventual batch contamination. You cannot use standard industrial steel in a food or pharma plant and expect it to survive the daily chemical washdowns.

The 316L sanitary manway stands as the undisputed industry standard for product contact surfaces. While 304 stainless steel offers basic corrosion resistance suitable for external non-contact areas, 316L contains added molybdenum. This specific alloying element provides superior resistance to pitting and crevice corrosion. High-chloride environments, aggressive CIP chemical regimens, and high-temperature processing demand 316L to prevent structural degradation. If you process brines, sports drinks, or use heavy caustic cleaners, 304 stainless will pit and rust within months. The "L" denotes low carbon content, which prevents carbide precipitation during welding, ensuring the heat-affected zone remains highly corrosion-resistant.

Surface roughness and finishing techniques dictate the cleanability of the steel. Product contact surfaces require specific Roughness average (Ra) values. You typically specify less than 0.8 µm (32 Ra) for standard food applications, and often much lower (15 Ra or better) for pharmaceutical processes. Mechanical polishing achieves the baseline smoothness by grinding away the top layer of metal, but electropolishing is often required for critical applications.

Electropolishing removes microscopic peaks and valleys on the metal surface, creating an ultra-smooth, passive oxide layer. This finish directly impacts the ability of CIP systems to remove biofilms. Bacteria cannot grip an electropolished surface. This drastically reduces the risk of bacterial adhesion and cross-contamination between batches. When you run a swab test after a CIP cycle, an electropolished surface passes every time, while a poorly polished mechanical surface often hides residual proteins.

Design Configurations for a Hygienic Tank Access Door

Mapping specific door configurations to operational workflows ensures the access point enhances rather than hinders production. The orientation of the door dictates its mechanical design, its safety features, and its interaction with the internal liquid dynamics of the vessel. You cannot put a top-mount door on the bottom of a tank and expect it to hold liquid.

Top-mount orientations are best suited for dry ingredient addition, visual inspection, and atmospheric venting. Because they sit above the maximum liquid level, they do not face hydrostatic pressure challenges. However, top-mounted doors carry the inherent risk of dropped objects entering the product stream. Operators leaning over an open port can inadvertently drop tools, flashlights, or debris into the batch. To mitigate this, safety grids are often required to protect personnel from falling into the vessel and to prevent foreign material contamination. You also need to ensure the top-mount door does not interfere with the central agitator motor assembly.

Side-mount and bottom-mount orientations are optimal for physical entry, routine maintenance, and confined space rescue operations. Positioning relative to the liquid level dictates the specific design requirements. Water chamber doors allow access above the standard liquid level, while fully submerged applications require heavy-duty pressure ratings to withstand the hydrostatic head. A flush, shadowless design is a critical requirement for a hygienic tank access door mounted on the side or bottom. The collar must be kept as short as structurally possible to prevent product pooling and to eliminate dead legs where CIP fluids cannot reach effectively. If the collar extends too far outward, the CIP spray ball cannot hit the back of the door, leaving a ring of uncleaned product.

The choice between inward-opening and outward-opening mechanisms depends entirely on pressure dynamics and internal clearance. Inward-opening doors utilize internal pressure to assist the seal. The higher the internal hydrostatic pressure, the tighter the door presses against the gasket. This design is highly secure and ideal for side-mount liquid applications where the weight of the product reinforces the closure. Outward-opening doors require multi-bolt closures to resist internal pressure pushing the door open. This configuration is ideal for top-mount applications or when internal tank clearance prevents an inward swing. If you have a close-tolerance scraper agitator in mixing tanks, an inward-opening door will collide with the blades. You must use an outward-opening door in these scenarios.

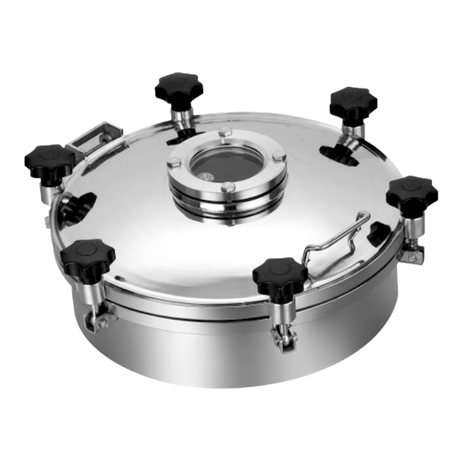

Integrated accessories expand the functionality of the access point. Integrating viewing ports or sight glasses directly into the manhole cover provides visual access to the contents without opening the main tank cover. This preserves the hygienic seal, maintains internal pressure, and prevents environmental exposure during critical process phases. Adding sampling valves directly on the manway facilitates in-process quality checks without disrupting the batch or requiring separate tank penetrations. Every extra hole you cut in a tank is a liability; combining functions on the manway cover reduces overall risk.

Gasket Materials and Seal Hygiene

Balancing chemical resistance, temperature tolerance, and mechanical memory is the core challenge of seal specification. The gasket is the weakest link in any pressure boundary. Selecting the wrong elastomer leads to premature degradation, product leaks, and severe microbiological contamination. You can buy the most expensive 316L door on the market, but if you put a cheap, incompatible gasket in it, the tank will fail.

The elastomer selection matrix requires matching the material to the specific process chemistry and cleaning regimen. Silicone offers high temperature tolerance and excellent flexibility, making it good for basic sanitary use, but it exhibits poor resistance to steam and caustic chemicals. EPDM provides excellent resistance to steam during SIP cycles and hot water, but it degrades rapidly when exposed to fats and oils. If you use EPDM in a dairy tank, the butterfat will turn the gasket into a sticky, melted mess within weeks. FKM (Viton) delivers high chemical and heat resistance, making it ideal for aggressive CIP regimens and oily products, though it comes at a higher cost. PTFE (Teflon) encapsulated gaskets provide the ultimate chemical resistance, but they lack the natural elasticity of rubber, requiring significantly higher clamping force to achieve a reliable seal.

Preventing dead legs and crevice corrosion relies heavily on the gasket groove design. The interface between the door and the collar must facilitate cleanability. An O-ring or flanged lip design must ensure a flush transition. Gaps, recessed grooves, or over-compressed gaskets that extrude into the product zone create dead legs where product accumulates. CIP spray balls cannot penetrate these microscopic crevices, leading to persistent bacterial contamination. You must inspect the gasket seating area regularly to ensure the elastomer has not taken a compression set and pulled away from the metal lip.

Implementation Risks and Maintenance Realities

Addressing the practical challenges of installation and lifecycle management prevents costly downtime. Even the most precisely engineered access door will fail if installed incorrectly or maintained poorly. Recognizing implementation risks early in the fabrication process ensures long-term operational success. You cannot fix a warped door frame in the field; you have to cut it out and start over.

Installation warpage and weld distortion present significant risks during tank fabrication. Excessive heat during the welding of the manhole collar to the tank shell can warp the frame. A warped frame permanently compromises the seal, leading to chronic leaks that no amount of gasket clamping can fix. Mitigating this risk requires specifying staggered welding procedures, utilizing heavy copper heat sinks, and mandating post-weld dimensional verification. Engaging a specialized custom service for fabrication ensures proper heat control, back-purging with argon, and structural integrity during the welding process.

Seal degradation and replacement frequency require proactive management. Over-tightening swing bolts can crush elastomers, destroying their mechanical memory and rendering them useless. Operators often grab a wrench and crank down on a leaking door, which only destroys the gasket faster. Chemical attack from harsh CIP fluids can embrittle seals, causing them to crack and harbor bacteria. Mitigating these risks involves establishing preventative maintenance schedules based on CIP/SIP frequency and chemical exposure, rather than waiting for visible leaks to occur. Operators must be trained on proper star-pattern torque sequences for multi-bolt closures.

Operator safety and ergonomics must remain a priority on the plant floor. Heavy stainless steel covers cause severe crush injuries if they fall unexpectedly. Confined space entry presents severe asphyxiation hazards. Mitigating these physical risks involves specifying spring-assist hinges or davit arms for heavy pressure doors, allowing single-operator use without strain. Integrating safety grates with magnetic interlocks prevents equipment operation while the door is open, protecting personnel from rotating agitators and hazardous atmospheres.

Conclusion

1. Calculate your maximum internal pressure and vacuum ratings under worst-case scenarios, including SIP cooling cycles, to determine the required structural thickness and locking mechanism.

2. Map your physical access requirements to determine the exact diameter and orientation needed for operator safety, agitator clearance, and confined space compliance.

3. Match your gasket elastomer directly to your specific CIP/SIP chemistry, operating temperatures, and product fat content to prevent premature seal failure.

4. Request material test reports (MTRs) and verified surface roughness (Ra) certificates from the manufacturer before accepting delivery to guarantee hygienic compliance.

FAQ

Q: What is the difference between a sanitary manway and a standard manhole?

A: A sanitary manway is engineered specifically for hygienic processing. It features a verified surface finish (Ra), eliminates dead legs, and uses FDA-approved elastomers. Standard manholes lack these hygienic refinements. They often contain crevices, rough welds, and industrial gaskets that harbor bacteria and cannot withstand rigorous Clean-in-Place (CIP) procedures.

Q: When should I specify a pressure manhole for tanks?

A: Specify a pressure-rated closure for scenarios involving pressurized mixing, carbonation, Sterilize-in-Place (SIP) cycles, or significant hydrostatic head pressure. Any application where internal pressure exceeds atmospheric levels requires multi-point locking mechanisms and reinforced structural thickness to prevent seal blowout or catastrophic failure.

Q: How do you clean a hygienic tank access door?

A: Cleaning relies on shadowless designs and flush-fitting gaskets that prevent product accumulation. Automated cleaning utilizes targeted CIP spray ball positioning to ensure chemical solutions and rinse water forcefully contact all internal surfaces of the door and collar, eliminating the need for manual scrubbing.

Q: Can I inspect tank contents without opening the sanitary manhole?

A: Yes. Integrating sight glasses and viewing ports directly into the manhole cover allows operators to visually inspect the contents. This maintains the internal pressure, preserves the hygienic seal, and prevents environmental contamination that occurs when opening the main access door.

Q: What is the standard size for a 316L sanitary manway?

A: Standard sizes range from 18 to 24 inches for physical personnel entry, accommodating safety harnesses and confined space regulations. Smaller ports, typically 4 to 12 inches, are used strictly for visual inspection, sampling, or minor ingredient addition where physical entry is not required.

Q: Can a side-mount sanitary manhole withstand liquid head pressure?

A: Yes. Inward-opening doors utilize hydrostatic head pressure to reinforce the seal. The weight of the liquid pushes the door tighter against the gasket. Outward-opening side doors can also withstand pressure, provided the collar, multi-bolt locking mechanism, and gasket are properly engineered for the specific load.

Q: How often should sanitary manhole gaskets be replaced?

A: Replacement frequency depends on CIP/SIP frequency, chemical aggressiveness, and temperature cycling. Rather than waiting for leaks, establish a preventative schedule. Inspect gaskets monthly for compression set, cracking, or chemical embrittlement, and replace them immediately if any degradation is visually detected.
