Scaling herbal medicine production from pilot batches to commercial volumes exposes severe vulnerabilities in process engineering. Equipment inefficiencies directly erode profit margins at scale. Plant matrices are highly variable, meaning a standardized approach often fails. Selecting the wrong machinery leads to thermal degradation of active pharmaceutical ingredients (APIs). It causes excessive solvent waste and leaves unwanted plant elements in the final product. Non-compliance with Good Manufacturing Practice (GMP) standards also becomes a serious operational risk.
Moving from raw biomass to a standardized, concentrated extract requires a tightly integrated system. This guide breaks down the technical evaluation criteria for sourcing extraction, concentration, and solvent recovery systems. We align these choices with your commercial production goals so you can build a facility that operates efficiently, safely, and profitably.
Pre-Processing Dictates Efficiency: Proper raw material preparation (milling, sieving) is a non-negotiable prerequisite that directly impacts the mechanical requirements of your extraction vessels.
Capacity vs. Yield: Scaling up (e.g., moving to a 2000L capacity) requires recalculating solvent-to-feed ratios and residence times; linear scaling often fails without equipment adaptation and pilot-plant validation.
Thermal Management is Critical: The selection of downstream concentration machinery dictates the preservation of heat-sensitive botanical compounds.
Solvent Recovery Drives OpEx: Efficient solvent reclamation is not just an environmental compliance measure; it is the primary driver of operational profitability in high-volume botanical processing.
Facility Integration Precedes Procurement: Equipment specifications must align with existing facility utilities, including chilling capacity, explosion-proof (EX) ratings, and HVAC requirements.
Before purchasing hardware, you must define the operational parameters of your facility. Establishing baseline metrics prevents under-sizing your utilities or over-capitalizing on unnecessary capacity. Define your target throughput in kilograms of biomass per shift. Compare this against your required extraction efficiency. You need a specific percentage of the target compound recovered from the raw material. Mass balance calculations dictate the size of every vessel, pump, and chiller in your facility.
To establish these baselines, follow these specific engineering steps:
Calculate the dry weight of the incoming biomass to determine the true volume of material entering the system.
Determine the maximum acceptable solvent loss per batch to size the recovery condensers accurately.
Map the exact utility draw, including amperage, steam pressure, and chilled water flow, required for peak operation.
Establish the target concentration density required before the extract moves to the final drying phase.
Evaluate how the physical properties of the raw material dictate the mechanical requirements of the extraction vessel. Density, moisture content, and particle size change how solvents interact with the plant matrix. Roots and barks require aggressive agitation and longer residence times. Flowers and leaves extract rapidly but tend to float, requiring specialized hold-down screens. You must address the necessity of industrial milling and grinding equipment. Proper milling optimizes surface area without causing filter-clogging fines. Excessive dust blinds filter media, causing downstream pumps to cavitate and fail. We typically recommend a hammer mill fitted with a specific screen size, often between 2mm and 5mm, depending on the friability of the plant material.
Match your equipment metallurgy, seals, and safety ratings to the intended solvent system. Whether you utilize pure ethanol, aqueous solutions, or hydroethanolic co-solvent mixtures, the solvent dictates the hardware. Ethanol requires explosion-proof motors and specific elastomer seals like PTFE or Kalrez. Water extraction demands robust heating jackets to overcome the high latent heat of vaporization. Selecting the right herbal extraction equipment requires a deep understanding of solvent polarity and its interaction with vessel materials.
Outline the mandatory material standards for regulatory and GMP compliance. Pharmaceutical-grade production requires 316L stainless steel for all product-contact parts. You can use 304 stainless steel for non-contact areas like outer jackets and frames. Sanitary welding with specific surface roughness (Ra) values prevents microbial buildup. We specify an internal finish of Ra 0.4 µm or better for all contact surfaces. Clean-in-Place (CIP) and Sterilize-in-Place (SIP) capabilities are mandatory for GMP facilities. Spray balls must provide full coverage of the vessel interior, eliminating dead legs where residue accumulates.
Analyze the initial capital expenditure against long-term operational costs. Automated, continuous systems demand high upfront investment. However, they drastically reduce labor, minimize solvent loss, and lower energy consumption per kilogram of extract. Manual, batch-oriented systems cost less initially but drain resources over time. Operators must manually load and unload heavy, solvent-soaked biomass, increasing labor costs and safety risks.
Moving botanical slurries requires specific pump geometries. Centrifugal pumps work well for clean solvents but fail when handling thick miscella loaded with plant particulates. The impellers clog, and the mechanical seals degrade rapidly. We specify pneumatic double-diaphragm pumps or rotary lobe pumps for transferring raw extracts. These positive displacement pumps handle high-viscosity fluids and suspended solids without shearing the plant material or cavitating.
Dynamic maceration utilizes mechanical agitation to accelerate mass transfer. Unlike static soaking, moving the solvent through the biomass reduces extraction time significantly. Impeller design matters. Anchor impellers scrape the vessel walls, preventing localized heating. Pitch-blade turbines create axial flow, pulling floating biomass down into the solvent. You must match the agitation profile to the density of your plant material. High-shear mixers might work for certain soft tissues but will pulverize brittle leaves into an unfilterable sludge.
Percolation dynamics offer distinct advantages for easily exhausted botanical matrices. Continuous solvent flow maintains a high concentration gradient. Fresh solvent constantly washes over the plant material, pulling out active compounds efficiently. This method prevents the solvent from reaching saturation, which would halt the extraction process. Proper bed depth and flow rate prevent channeling, where solvent bypasses the biomass through path-of-least-resistance tunnels. Operators must pack the percolation column evenly to ensure uniform fluid distribution.
Heat reflux extraction utilizes closed-loop heating systems. It extracts thermally stable compounds efficiently. The solvent boils, turns to vapor, condenses, and falls back onto the biomass. This continuous cycle minimizes total solvent volume while maximizing extraction yield. Focus on energy consumption and cycle times when evaluating reflux systems. Oversized condensers ensure vapors do not escape the closed loop, maintaining process safety and solvent inventory.
Ultrasonic-Assisted Extraction (UAE) applies acoustic cavitation to the solvent. High-frequency sound waves create microscopic bubbles that implode violently against plant cell walls. This mechanical disruption releases intracellular compounds rapidly. You use less solvent and lower extraction temperatures. UAE excels at extracting heat-sensitive flavonoids and antioxidants that would degrade in traditional boiling reflux systems. Transducer placement and frequency selection determine the success of scale-up.
Compare supercritical CO2 against ethanol extraction. Solvent selection impacts equipment design fundamentally. CO2 requires high-pressure vessels rated for up to 5000 psi. These systems demand massive steel walls and specialized high-pressure pumps. Ethanol operates at atmospheric pressure or slight vacuum, allowing for thinner vessel walls and standard centrifugal pumps. The specific solubility of your target phytochemicals dictates the choice. CO2 pulls non-polar lipids and terpenes perfectly. Ethanol acts as a universal solvent, pulling a broader spectrum of polar and non-polar compounds.
Solvent Type | Operating Pressure | Target Compounds | Equipment Complexity |
|---|---|---|---|
Ethanol (Cold or Warm) | Atmospheric / Low Vacuum | Broad spectrum (Cannabinoids, Alkaloids, Flavonoids) | Moderate (Requires EX-rated electrical components) |
Purified Water | Atmospheric / Pressurized | Polar compounds (Polysaccharides, Water-soluble vitamins) | Low to Moderate (Requires high heating capacity) |
Supercritical CO2 | Extremely High (up to 5000 psi) | Non-polar compounds (Terpenes, Heavy Lipids, Waxes) | High (Requires specialized pressure vessels and compressors) |

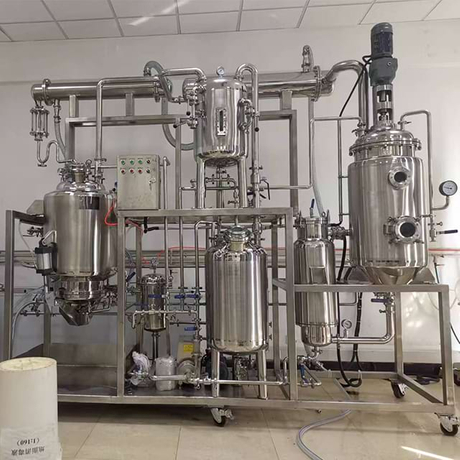

Explain why validating extraction parameters on 50L to 200L R&D systems is mandatory. The pilot-to-commercial pipeline prevents catastrophic failures at scale. You cannot simply multiply your pilot recipe by ten. Heat transfer coefficients change. Fluid dynamics alter. Validating solvent ratios, residence times, and yield percentages at the pilot scale provides the engineering data required to commission commercial-scale equipment.
Identify the production milestones that justify scaling up. High batch frequency and overwhelming market demand signal the need for larger infrastructure. When your operators run multiple small batches per shift just to meet quotas, labor costs destroy margins. Transitioning to a 2000L herbal extractor centralizes production, standardizes batch quality, and reduces the cost per kilogram of finished product.
Address the physical realities and engineering challenges of large-scale vessels. The square-cube law dictates that volume increases faster than surface area. Heating a 2000L tank takes significantly longer than heating a 200L tank. Cold spots cause uneven heat distribution, leading to inconsistent extraction. Agitation limitations arise; moving two tons of wet biomass requires immense torque. Common scale-up failures include biomass compaction at the bottom of the tank. You must implement automated biomass loading and unloading mechanisms. Pneumatic conveying or auger systems replace manual labor, ensuring operator safety and process repeatability.
Define the equipment requirements for eliminating unwanted elements. Winterization and dewaxing remove chlorophyll, heavy lipids, and plant waxes prior to concentration. You chill the crude extract to sub-zero temperatures, often between -20°C and -40°C, in jacketed holding tanks. The waxes coagulate and precipitate out of the solution. Holding time and precise temperature control dictate the success of this phase.
Evaluate filtration skids for clarifying the crude miscella. Lenticular filters provide excellent depth filtration, capturing coagulated waxes and fine particulates. Filter presses handle high volumes of sludge, utilizing mechanical pressure to squeeze out residual solvent. Centrifuge systems offer continuous clarification, spinning out heavy solids rapidly. You must prevent fouling in downstream evaporators. Even microscopic particulates will bake onto the heat exchange surfaces of your concentration equipment, ruining the batch and requiring extensive downtime for cleaning.
Vacuum evaporation principles govern the preservation of active compounds. Lowering the atmospheric pressure inside the concentration vessel reduces the boiling point of the solvent. Water boils at 100°C at sea level, but under deep vacuum, it boils at 40°C. This physical reality prevents the thermal degradation of heat-sensitive alkaloids, flavonoids, and terpenes. You remove the solvent without destroying the medicinal value of the extract.
Deep vacuum systems operate between 10 and 50 mbar. Achieving this requires liquid ring vacuum pumps or dry scroll pumps, depending on the solvent vapor compatibility. You must protect these pumps with cold traps. A cold trap sits between the evaporator and the vacuum pump, chilling the line to -40°C or lower. This freezes any stray solvent vapor before it enters the pump housing, preventing mechanical failure and oil contamination.
Define the critical balance between the duration of heat exposure and the rate of solvent removal. Residence time dictates product quality. Exposing an extract to moderate heat for three hours causes more degradation than exposing it to high heat for three seconds. Your equipment must move the fluid through the heating zone rapidly while still achieving the target concentration density.
Evaluate Falling Film Evaporators (FFE) for high-volume, continuous processing. FFEs work exceptionally well for low-viscosity extracts. The fluid pumps to the top of a vertical tube bundle and falls as a thin film down the inside walls. Steam or hot water heats the outside of the tubes. Heat transfer is rapid. Residence times are incredibly short, often less than a minute. This rapid evaporation protects sensitive compounds.
Assess the necessity of Wiped Film or Thin Film Evaporators for highly viscous botanical extracts. As concentration increases, the extract becomes thick and sticky. It will not flow down a falling film tube. Wiped film systems utilize a mechanical rotor with blades that physically spread the thick extract against the heated vessel wall. This mechanical wiping mechanism prevents fouling, dry spots, and burning. Products requiring deep solvent removal to achieve a thick paste demand this technology.
Review applications for centrifugal evaporators. These systems handle specialized, high-value herbal medicines requiring ultra-low temperature concentration. The spinning motion creates a thin film across a heated surface while operating under deep vacuum. Integrating the correct herbal medicine concentration equipment ensures your final product maintains its intended chemical profile without thermal damage.
Detail the transition from a concentrated liquid extract to a standardized powder. Liquid extracts present shelf-life and shipping challenges. Spray dryers atomize the concentrated liquid into a fine mist inside a hot air chamber. The solvent flashes off instantly, leaving a dry powder. Vacuum belt dryers handle sticky, hygroscopic extracts that would clog a spray dryer. The extract moves on a heated belt under vacuum, puffing up into a dry cake that operators mill into powder. You then blend this powder precisely with excipients to meet target marker compound percentages.
Detail how solvent recovery transforms a consumable expense into a reusable asset. Buying fresh ethanol or methanol for every batch bankrupts commercial operations. Efficient solvent recovery equipment for botanical extraction captures the vaporized solvent from the concentrator, condenses it, and returns it to the storage tanks. This closed-loop process drastically lowers the cost per kilogram of finished extract. The equipment pays for itself rapidly through solvent savings alone.
Establish the technical requirements for fractional distillation columns. Recovered solvents must meet pharmaceutical purity standards. They must remain free from volatile botanical carryover. Terpenes and water often co-distill with ethanol. A fractional column utilizes theoretical plates to separate these liquids based on their specific boiling points. You ensure the recovered ethanol is pure enough to use in the next extraction cycle without altering the flavor or chemical profile of the new batch.
Evaluate the engineering required for a closed-loop architecture. You must seamlessly pipe solvent vapor from the concentration equipment directly into the recovery and chilling systems. Vapor lines must be sized correctly to prevent backpressure. Excessive backpressure raises the boiling point in the concentrator, defeating the purpose of the vacuum system. Automated valves and sensors manage the flow of vapor and liquid, removing the potential for human error.
GMP compliance requires strict data logging. Modern extraction facilities rely on Programmable Logic Controllers (PLCs) integrated with Supervisory Control and Data Acquisition (SCADA) systems. These systems monitor temperature, pressure, and flow rates in real-time. If a heating jacket exceeds the programmed setpoint, the PLC automatically throttles the steam valve to prevent burning the extract. This level of automation removes operator guesswork and provides the batch records required by regulatory agencies.
Calculate the required cooling tonnage to efficiently condense solvent vapors. Condensation requires massive energy transfer. You must remove the latent heat of vaporization from the solvent gas to turn it back into a liquid. If your chillers lack the capacity to handle the vapor load, the entire system bottlenecks. Uncondensed vapor gets sucked into the vacuum pumps, destroying the pumps and venting flammable gas into the facility. Size your heat exchangers and glycol chillers for the peak vapor load, not the average load.
Continuous line design differs drastically from batch processing. You must map out floor space carefully. Batch systems require staging areas for raw materials, intermediate holding tanks, and manual transfer zones. Continuous systems pipe material directly from one machine to the next, reducing the physical footprint but increasing the complexity of the piping network.
Align equipment specifications with existing facility utilities. Do not purchase a massive evaporator without checking your boiler capacity. Chilling capacity, electrical load, and compressed air requirements dictate what machinery you can actually install. Explosion-proof (EX) ratings require specialized conduit, purged control panels, and specific HVAC ventilation rates to capture fugitive emissions. Upgrading facility utilities often costs as much as the extraction equipment itself.
Parameter | Batch Extraction Systems | Continuous Extraction Systems |
|---|---|---|
Throughput Capacity | Low to Medium (Limited by vessel size and cycle time) | High (Uninterrupted processing flow) |
CapEx (Initial Cost) | Lower (Fewer automated components) | Higher (Requires complex sensors and pumps) |
OpEx (Labor & Energy) | Higher (Manual loading/unloading, start/stop energy spikes) | Lower (Automated transfers, steady-state energy use) |
Process Flexibility | High (Easy to switch between different botanical recipes) | Low (Optimized for single, high-volume product runs) |
Facility Footprint | Wide (Requires staging areas and multiple holding tanks) | Linear (Compact, piped directly between stages) |
Transitioning from raw botanical mass to a commercial-grade concentrated extract demands precision engineering. You must view the extraction, filtration, concentration, and solvent recovery stages as one interconnected organism. A failure or bottleneck in one stage cascades through the entire facility. To ensure a successful equipment deployment, take the following actions:
Audit your current mass balance to determine the exact throughput required for each processing stage.
Validate your solvent-to-biomass ratios and residence times on pilot-scale equipment before ordering commercial vessels.
Calculate your peak thermal loads and upgrade your facility boiler and chilling utilities before installing new evaporators.
Implement a closed-loop solvent recovery system with fractional distillation to eliminate volatile carryover and protect your operating margins.
Standardize your Clean-in-Place (CIP) protocols to ensure strict GMP compliance across all new hardware.
A: The ratio depends on the botanical matrix and target compound, but typically ranges from 5:1 to 10:1 (liters of solvent per kilogram of biomass). Dense roots require higher ratios to ensure complete saturation, while light flowers require less. Pilot testing determines the exact ratio needed to prevent solvent saturation while minimizing downstream evaporation loads.
A: Extracts burn when residence time is too long or heat transfer is uneven. In standard boiling flasks, the extract near the vessel wall overheats while the center remains cool. Using falling film or wiped film evaporators under deep vacuum lowers the boiling point and reduces heat exposure time to seconds, preventing thermal degradation.
A: Milling reduces particle size, increasing the surface area exposed to the solvent and accelerating mass transfer. However, milling too fine creates dust that turns into sludge. This sludge blinds filter screens, causes channeling in percolation columns, and damages centrifugal pumps. Aim for a uniform, coarse grind.
A: Yes, but with compromises. Water has a much higher latent heat of vaporization than ethanol. Equipment designed primarily for ethanol may lack the heating jacket capacity or condenser surface area required to boil and recover water efficiently. Ensure your vessel specifications account for the thermal demands of aqueous extraction.
A: Falling film evaporators provide rapid, continuous solvent removal with incredibly short residence times. Because the liquid falls as a thin film down heated tubes, heat transfer is instantaneous. This protects heat-sensitive botanical compounds from degrading while processing large volumes of low-viscosity miscella quickly.
A: CIP (Clean-in-Place) should occur between every batch if changing botanical recipes to prevent cross-contamination. For continuous runs of the same product, CIP is typically performed daily or at the end of a shift to prevent microbial growth, resin buildup, and scale on heat exchange surfaces.
