Processing thermally unstable, highly viscous, or difficult-to-process materials presents a strict physical limitation. Standard thermal separation methods inevitably lead to product degradation, yield loss, or equipment failure. Traditional batch evaporation exposes compounds to prolonged residence times and high temperatures. For high-value active pharmaceutical ingredients, polymers, or botanical extracts, this results in thermal breakdown, severe fouling of heat transfer surfaces, and inefficient solvent recovery. Scaling from lab-scale glass rotary evaporators to industrial production often introduces unexpected bottlenecks in throughput and material handling.
Transitioning from conventional distillation to a vacuum film evaporizer mitigates these risks. By combining reduced operating pressures with mechanically or gravity-assisted thin films, facilities achieve rapid, continuous separation and concentration. This guide breaks down the technical criteria for evaluating, specifying, and implementing these systems at an industrial scale.
Thermal Protection: Operating under deep vacuum significantly lowers the boiling point of solvents, preventing thermal degradation in heat-sensitive compounds.
Viscosity and Foam Management: Mechanical agitation (wiped film technology) is strictly required to maintain heat transfer efficiency, prevent fouling, and mechanically break foams when processing high-viscosity or foaming fluids.
System Sizing Variables: Accurate specification requires mapping the maximum allowable residence time, feed viscosity at operating temperature, required evaporation rates, and utility consumption limits.
Separating solvents from heavy residues requires precise thermodynamic control. Concentrating active compounds without exceeding the thermal degradation threshold of the product is a complex engineering challenge. Standard distillation applies excessive heat over long periods. You expose sensitive molecules to prolonged thermal stress, which inevitably destroys the active components and degrades the final product quality. Success requires minimizing the time the product spends in contact with the heating surface while maximizing the evaporation rate. Operators must balance heat input, vacuum depth, and fluid dynamics to achieve optimal separation. When processing polymer solutions or heavy botanical extracts, the viscosity increases exponentially as the solvent evaporates. This viscosity spike traps the remaining solvent, making it impossible to achieve high purity using conventional batch reactors. You need a mechanical solution to force the material into a state where evaporation can continue unimpeded.
A low-temperature evaporator utilizes reduced pressure to alter the vapor-liquid equilibrium. The relationship between system pressure and boiling point is absolute. As you pull a deeper vacuum, the boiling point of the solvent drops proportionally. This allows you to evaporate high-boiling solvents at temperatures well below the thermal degradation point of the active ingredient. For example, a solvent that boils at 150°C at atmospheric pressure might boil at 60°C under a 10 mbar vacuum. This physical principle is the foundation of processing heat-sensitive botanicals, pharmaceuticals, and specialty chemicals. By operating in the 1 to 10 mbar range, you protect the molecular integrity of the feed. The vacuum system continuously removes vaporized solvent, maintaining the pressure differential required to keep the boiling point suppressed throughout the entire continuous run.
Generating a thin film fundamentally changes the physics of evaporation. Spreading the liquid into a layer between 0.1 and 2 mm thick maximizes the surface-area-to-volume ratio. This ensures rapid heat transfer from the jacketed wall into the fluid. It also allows immediate vapor release from the liquid surface. In bulk boiling, vapor bubbles must travel through a thick liquid column, which is nearly impossible in thick fluids. A high-viscosity evaporator overcomes this by mechanically forcing the material into a thin, turbulent layer. The internal rotor blades sweep the product against the heated wall, preventing localized overheating and ensuring consistent evaporation even as the product thickens. This mechanical agitation induces artificial turbulence in fluids that would otherwise exhibit laminar flow, drastically improving the overall heat transfer coefficient.
Foaming is a severe issue during solvent extraction. When bubbles form and do not break, foam travels up the evaporator body and contaminates the condenser. This ruins the recovered solvent and reduces product yield. Active wiping mechanisms in agitated systems physically shear and break down these bubbles. The mechanical action of the rotor continuously sweeps the heating surface, suppressing foam formation and keeping the liquid confined to the evaporator wall. You eliminate the need for chemical anti-foaming agents, which can contaminate the final product. The rotor blades act as a physical barrier, destroying the foam structure before it can expand into the vapor space. This makes thin-film technology highly effective for liquids prone to severe foaming, ensuring clean solvent recovery and uninterrupted continuous operation.
Selecting the correct evaporator geometry depends entirely on the physical properties of your feed material. Viscosity, heat sensitivity, and scaling tendencies dictate the mechanical design required for successful separation.
Technology | Mechanism | Viscosity Limit | Best Fit | Limitations |
|---|---|---|---|---|
Falling Film Evaporator | Gravity-driven film flow inside vertical tubes. | Up to 500 cP | High-volume processing of moderate viscosity liquids. | Ineffective for highly viscous or particulate-laden feeds. |
Agitated Thin-Film Evaporator | Mechanical rotor actively spreads feed against heated wall. | Up to 100,000 cP | Sticky, foaming, or severely heat-sensitive materials. | Requires strict maintenance of mechanical seals and wipers. |
Short Path Evaporator | Internal condenser placed concentrically within the body. | Up to 50,000 cP | Ultra-high vacuum applications for fragile compounds. | Limited throughput compared to external condenser systems. |
Falling film systems rely entirely on gravity to distribute the liquid. The feed enters the top of a vertical tube bundle and flows downward as a continuous film. The heat applied to the outside of the tubes causes the solvent to evaporate as the liquid descends. This design is highly efficient for high-volume, continuous concentration of materials with low to moderate viscosity. You typically use these systems for bulk solvent recovery where the final product remains relatively fluid. However, falling film evaporators lack mechanical agitation. If the liquid becomes too viscous, the film will break, leading to dry spots, product burn-on, and severe fouling. They are generally limited to fluids under 500 cP. Once the viscosity exceeds this threshold, the liquid channels instead of forming a uniform film, destroying the heat transfer efficiency.

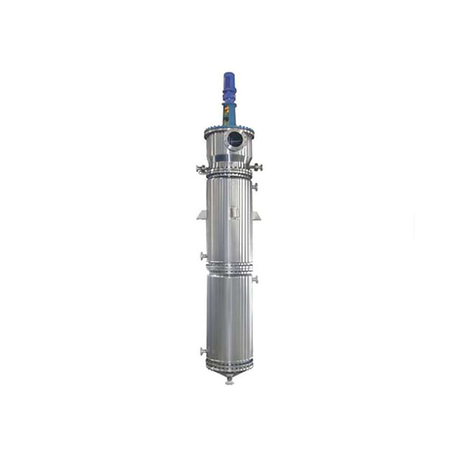

An agitated thin-film evaporator introduces a mechanical rotor equipped with wiper blades. As the feed enters the cylinder, the spinning rotor actively spreads the liquid against the heated internal wall. This creates a highly turbulent film, which drastically increases the heat transfer coefficient. The mechanical wiping action prevents fouling and moves highly viscous materials down the evaporator body. You must use this technology for processing sticky, foaming, or severely heat-sensitive materials that require residence times measured in seconds. The rotor designs vary from fixed-clearance blades for highly viscous polymers to hinged wipers that ride directly on the fluid film. This mechanical intervention allows you to process materials up to 100,000 cP, pushing the concentration limits far beyond what gravity-fed systems can achieve.
Short path evaporators are designed for the most thermally fragile compounds. The defining feature is an internal condenser placed concentrically within the evaporator body. This minimizes the distance the vapor must travel, virtually eliminating vapor pressure drop. Because the pressure drop is negligible, these systems can achieve ultra-high vacuum levels down to 0.001 mbar. This extreme vacuum allows for the distillation of high molecular weight compounds, such as cannabinoids, omega-3 fatty acids, and specialized polymers, at the lowest possible temperatures. The internal condenser ensures that the vapor molecules only travel a short distance before condensing. This prevents the vapor from backing up and increasing the system pressure. While highly effective, these systems have lower throughput capacities compared to external condenser setups due to the limited surface area of the internal cooling coil.
Residence time is the duration the product remains in contact with the heated surface. You must evaluate a vendor's claims regarding contact time rigorously. Narrow residence time distributions are necessary for product consistency. In an agitated system, the rotor design dictates the flow rate and mixing intensity. If the residence time is too long, the product degrades. If it is too short, the solvent is not fully evaporated. Calculating the exact thermal degradation limit of your specific compound is the first step in sizing the equipment. You achieve plug flow characteristics by optimizing the rotor speed and feed rate. This ensures that every molecule of the product experiences the exact same thermal history, eliminating the backmixing issues common in batch reactors.
Scaling up from a laboratory setting requires accurate calculation of the heat transfer surface area. You cannot simply scale up based on volume. The surface area dictates the maximum evaporation rate. Engineers use the overall heat transfer coefficient to determine the exact square meterage required to achieve your target throughput. Undersizing the surface area will permanently bottleneck your production capacity.
Determine the mass feed rate and the required percentage of solvent removal.
Calculate the sensible heat required to bring the incoming feed up to its boiling point under the specific operating vacuum.
Calculate the latent heat required to phase-change the solvent from liquid to vapor.
Determine the overall heat transfer coefficient based on the fluid's thermal conductivity and peak viscosity.
Divide the total heat load by the heat transfer coefficient and the logarithmic mean temperature difference between the heating jacket and the boiling fluid.
The vacuum pump skid is the heart of the evaporation process. You must evaluate the integration of the vacuum system carefully. Dry screw pumps are often preferred over liquid ring pumps to prevent solvent contamination and eliminate wastewater generation. Furthermore, primary and secondary condenser sizing is a strict requirement. If the condensers are undersized, solvent vapor will bypass them and enter the vacuum pump. This destroys the pump oil, reduces vacuum depth, and causes catastrophic system failure. Proper cold trap integration protects the mechanical integrity of the vacuum skid. You must size the vacuum lines to handle the massive volumetric expansion of vapors at deep vacuum levels. A restricted vapor line will create a pressure drop, meaning the pressure at the pump will be significantly lower than the pressure inside the evaporator.
Assess the thermal requirements of the entire system before installation. Compare the efficiency of steam heating versus thermal oil heating jackets. Steam provides rapid heat transfer and high latent heat but is limited by pressure ratings. Thermal oil allows for much higher operating temperatures at low jacket pressures, making it ideal for high-boiling compounds. Simultaneously, calculate the corresponding cooling utility requirements. The energy required to condense the vapor is often equal to the energy required to boil it. You must ensure your facility has adequate chilled water or glycol capacity to support the condensers. Failing to supply enough cooling capacity will cause the system pressure to spike, as uncondensed vapors overwhelm the vacuum pump.
Transitioning from fragile lab-scale glass components to industrial steel requires careful material selection. Assess the metallurgy required for your process. Standard applications use 316L Stainless Steel, while highly corrosive feeds containing chlorides or strong acids require Hastelloy C22 or Titanium. Surface finish is equally important. Pharmaceutical applications demand low Ra values and electropolishing for cGMP compliance to prevent bacterial growth and cross-contamination. Additionally, electrical components must meet ATEX or Class 1 Division 2 explosion-proof standards when processing flammable solvents. You must ensure all motors, sensors, and control panels are properly rated for the hazardous area classification of your facility.
Precision-machined agitated systems require a significant upfront investment compared to standard batch reactors. However, you must weigh this against long-term operational efficiency. Continuous thin-film systems drastically reduce energy consumption by maximizing heat transfer efficiency. They also improve product yield by eliminating thermal degradation. The reduction in wasted product and the decreased energy utility load often offset the initial capital expenditure rapidly. Focusing solely on the purchase price ignores the massive efficiency gains of continuous processing. A well-designed system will operate continuously with minimal operator intervention, maximizing throughput and ensuring a consistent, high-quality product that batch systems simply cannot replicate.
Transitioning from batch rotary evaporation to continuous flow requires a shift in operational philosophy. Batch systems are flexible but highly inefficient, requiring constant manual intervention to load and unload flasks. Continuous systems operate at a steady state, maximizing throughput. However, this requires auxiliary equipment. You must integrate precision gear pumps, mass flow meters, and automated level controls to maintain steady-state operation. Eliminating the bottlenecks of batch processing requires a fully integrated, automated fluid handling system. You cannot manually pour feed into a continuous evaporator; the feed rate must be precisely controlled to maintain the delicate balance of the thin film on the heated wall.
Agitated systems have moving parts, which introduces maintenance overhead. You must take a realistic look at the wear-and-tear of rotor components. Wiper blades degrade over time due to friction and chemical exposure. Compare the lifecycle of different wiper materials, such as PTFE, graphite, or metallic blades, based on your feed's abrasiveness. Mechanical seals also require regular inspection. Double mechanical seals with a pressurized barrier fluid or magnetic drives prevent vacuum leaks but require specialized maintenance. You must keep replacement parts in stock and schedule routine inspections to minimize downtime. Ignoring seal maintenance will inevitably lead to vacuum leaks, which will destroy your product and halt production.
Fouling is a primary risk when processing heavy residues. Localized dry spots lead to product burn-on, which acts as an insulator and destroys thermal efficiency. Once fouling begins, it accelerates rapidly, ruining the batch and requiring complete system shutdown. To mitigate this, specify the correct rotor speed and wiper design to ensure constant surface wetting. The mechanical wiping action must be aggressive enough to keep the wall clean. Implementing automated Clean-in-Place systems with high-pressure spray balls ensures thorough cleaning between runs without disassembling the equipment. You must also monitor the temperature differential between the heating jacket and the product; a sudden drop in heat transfer indicates that fouling has started.
A loss of vacuum causes sudden boiling point spikes. If the pressure rises, the temperature required to evaporate the solvent also rises, leading to immediate product destruction. Vacuum leaks are often caused by degraded seals or improperly seated flanges. Mitigate this risk by performing rigorous helium leak testing during commissioning. Utilize high-quality flanged connections with appropriate elastomer gaskets, such as FFKM or PTFE, depending on chemical compatibility. Install continuous pressure monitoring sensors integrated with automated abort sequences to shut down the heating system instantly if vacuum is lost. You should also isolate different sections of the system with vacuum valves to quickly identify the source of a leak during troubleshooting.
Inconsistent feed rates cause the liquid film to break. If the feed drops, dry spots form. If the feed surges, the rotor cannot maintain a thin film, and evaporation efficiency plummets. Mitigate this by integrating precision dosing pumps, such as gear or progressive cavity pumps, which provide pulseless flow. Additionally, implement pre-heating stages. Heating the feed before it enters the evaporator stabilizes its viscosity, ensuring it flows smoothly and evenly across the distribution ring. A stable feed rate is the foundation of continuous evaporation; without it, the system will constantly hunt for equilibrium, resulting in inconsistent product quality and varying solvent recovery rates.
High vapor velocities can carry liquid droplets into the condenser. This entrainment contaminates the recovered solvent with the heavy residue, requiring costly reprocessing. This risk increases when operating at deep vacuum levels where vapor volumes expand massively. Mitigate entrainment by properly sizing the vapor space within the evaporator. The cross-sectional area must be large enough to keep vapor velocities below the entrainment threshold. Furthermore, integrate mechanical entrainment separators or demister pads within the evaporator body to catch droplets before they exit the vapor nozzle. You must calculate the F-factor of the vapor flow to ensure the physical design of the evaporator can handle the volumetric flow rate without pulling liquid into the vapor line.
Mandate pilot-scale feasibility testing with actual feed material to verify evaporation rates, maximum viscosity limits, and final product quality before finalizing equipment specifications.
Request computational fluid dynamics modeling from the manufacturer to ensure accurate scale-up from lab-scale data to industrial production sizes.
Audit the vendor's vacuum system integration capabilities to ensure the vacuum pump, cold traps, and primary condensers are perfectly matched to the anticipated vapor load.
Establish a strict preventative maintenance schedule for mechanical seals, wiper blades, and gear pumps to prevent unexpected downtime and maintain deep vacuum integrity.
A: Agitated and wiped film systems can typically handle viscosities up to 100,000 cP or higher at operating temperatures. The exact limit depends on the specific rotor design, wiper blade configuration, and the torque capacity of the drive motor. Gravity-fed falling film systems are limited to much lower viscosities, usually under 500 cP.
A: Rotary evaporators are batch-oriented devices that rely on flask rotation and utilize fragile glass components suited for laboratories. Thin-film systems are continuous, industrial-scale machines constructed from stainless steel or specialized alloys. They use internal mechanical wipers or gravity to maintain precise film control and residence time.
A: Active pharmaceutical ingredients and botanical compounds degrade, oxidize, or isomerize when exposed to standard boiling temperatures. Operating under a deep vacuum lowers the boiling point of the solvent, allowing evaporation to occur at low temperatures. This preserves the chemical structure and efficacy of the final product.
A: Yes, they are highly effective for both applications. You can use them to strip solvents to purify a heavy residue, or you can remove water and solvents to concentrate a valuable liquid product to a specific final viscosity. The equipment parameters are simply adjusted based on the desired output.
A: Wiper blades require periodic inspection for wear and chemical degradation. Replacement frequency depends entirely on the abrasiveness of the feed material, the operating temperature, and the rotor RPM. PTFE or graphite wipers should be inspected quarterly during continuous operation to ensure they maintain proper contact with the heated wall.
A: Sizing a vacuum pump requires calculating the system's total internal volume, the target operating pressure, and the anticipated vapor load. You must also account for any non-condensable gas load and the potential for vapor bypassing the primary condenser. Oversizing the pump slightly provides a safety margin for pressure stability.
A: Yes, these technologies are frequently staged in series. A falling film evaporator acts as the primary bulk solvent stripper, efficiently removing the majority of the solvent. It then feeds the concentrated, higher-viscosity residue directly into an agitated thin-film evaporator for the final, precision finishing step.
