Unplanned downtime or batch loss due to equipment failure costs significantly more than the initial capital expenditure of mixing equipment. Industrial processing facilities simply cannot afford stalled production lines when seasonal demand peaks. A single ruined batch of high-value chemicals, pharmaceuticals, or food products impacts the bottom line heavily.
Specification sheets can be highly misleading for equipment buyers. Two tanks displaying identical volume capacities and heating specifications often yield vastly different operational lifespans. Manufacturers sometimes cut hidden corners on metallurgy or thermal controls to lower competitive baseline pricing.
True reliability in a heating tank system requires stringent metallurgical integrity and precise thermal management. Mechanical seal quality and verifiable compliance standards also separate adequate vessels from truly exceptional ones. This comprehensive guide explores the engineering fundamentals defining long-lasting mixing equipment.
You must carefully evaluate metal grades during the initial design phase. Standard 304 stainless steel serves perfectly well for basic water heating or processing neutral fluids. However, aggressive chemical processing demands upgraded metallurgy. We strongly recommend 316L stainless steel for high-chloride or acidic environments. This specific alloy contains added molybdenum. The molybdenum significantly enhances resistance to pitting and prevents stress corrosion cracking over time.
Choosing the wrong grade leads to microscopic pitting. These pits harbor aggressive chemicals. Eventually, the tank wall degrades and leaks fluid into the outer jacket. Facility managers should audit their chemical formulations before finalizing metal specifications.
Jacketed tanks require specific inner and outer wall thicknesses. These dimensions ensure they withstand constant thermal expansion. They must also endure the continuous pressure of the heating jacket without warping. When manufacturers use excessively thin metal sheets, the inner shell risks catastrophic buckling.
Engineers calculate shell thickness based on standard pressure vessel codes. You must verify ASME design criteria when processing under positive pressure. Proper thickness prevents metal fatigue caused by thousands of heating and cooling cycles.
Weld quality dictates both structural safety and biological cleanliness. Poorly executed welds create jagged seams. These seams introduce a severe risk of crevice corrosion and bacterial harborage.
You must rigorously assess the placement and density of electric elements within the jacket. Engineers group these heating rods strategically. Carefully evenly distributed elements prevent dangerous "hot spots" along the inner tank wall.
Concentrated heat easily degrades temperature-sensitive products like dairy, cosmetics, or specialized polymers. A reliable design spaces the heating elements symmetrically. This layout promotes natural convection currents inside the jacket. It ensures smooth and highly uniform energy transfer into your batch.
Indirect heating setups utilize specific heat transfer fluids inside the jacket. We generally see either treated water or specialized thermal oil.
Water works efficiently for processes operating below boiling temperatures. Thermal oil becomes necessary for high-temperature reactions reaching up to 300 degrees Celsius. You must detail the expansion tank requirements. Thermal oil expands significantly as it heats. A properly sized expansion reservoir prevents dangerous pressure spikes.
Fluid degradation presents a serious operational risk. Overheated thermal oil breaks down and forms thick carbon deposits. These deposits coat the heating elements, effectively insulating them. The elements then overheat and fail prematurely.
A reliable stainless steel heating tank requires high-grade insulation. Standard choices include high-density polyurethane foam or industrial mineral wool.
Engineers encase this insulation within fully welded outer stainless steel cladding. This protective outer layer prevents moisture from saturating the insulation material. Dry insulation maximizes energy efficiency by preventing radiant heat loss. It also crucially protects factory operators from accidental and severe contact burns.

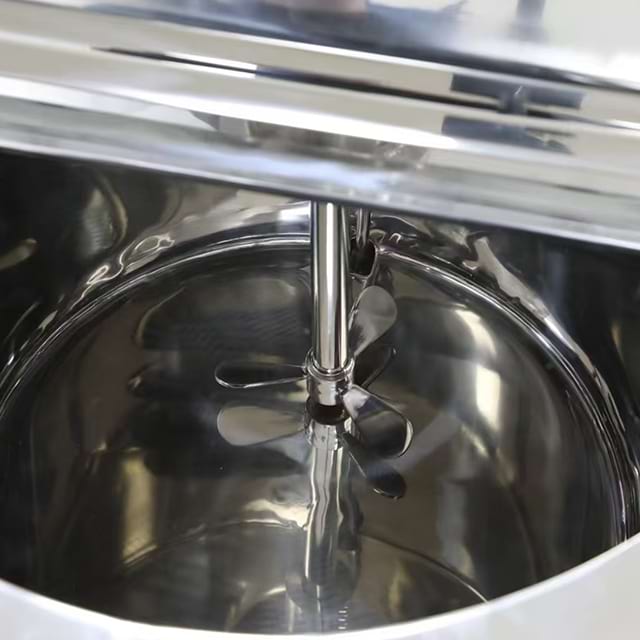

You must frame the mechanical reliability of the agitator mixer around proper process specification. Mixing water-like liquids requires fundamentally different engineering than blending thick cosmetic pastes.
Using standard marine propellers for high-viscosity materials quickly leads to premature motor burnout. Thick materials demand specialized impellers like anchor or ribbon blades. These blades scrape the heated tank walls and force heavy fluids into motion. Properly calculating the required torque ensures the motor handles peak viscosity phases without stalling.
Robust agitation systems demand top-tier drive components. You should prioritize the following criteria during specification:
The mechanical seal represents the most critical barrier in your vessel. Seals prevent your expensive batch from leaking up the shaft. They also stop external contaminants from dropping into the product.
Standard lip seals suffice for basic atmospheric mixing. However, pressurized tanks or hazardous chemicals demand sophisticated mechanical seals. Single mechanical seals work for many processes. Double mechanical seals provide an ultimate fail-safe. They utilize a barrier fluid pressurized between two seal faces.
You must highlight maintenance accessibility. Ask the vendor how easily plant engineers can replace these seals. Exceptional designs allow cartridge seal replacement without requiring a total system teardown or gearbox removal.
Automation transforms a simple steel vessel into a precision instrument. Temperature accuracy dictates product quality. You must evaluate the exact placement of PT100 or thermocouple sensors.
Sensors must read the core product temperature directly. Many cheap tanks only measure the jacket fluid temperature. This creates a massive thermal lag. The product might be ten degrees cooler than the jacket indicates. Dual-sensor setups provide the best data. They monitor both the jacket medium and the actual internal batch simultaneously.
Reliable tanks include robust low-level shutoff switches. These switches detect if the jacket fluid drops below a safe operational threshold.
If heating elements operate in empty space without fluid, they experience rapid dry-firing. The elements will turn white-hot and suffer catastrophic burnout within minutes. Automated interlocks instantly kill power to the heaters. This hardware-level protection prevents severe equipment damage and potential factory fires.
Control cabinets house sensitive electronics. They must withstand your specific factory environment. You must discuss IP and NEMA ratings for control cabinets prior to purchase.
Explosion-proof environments require specialized purged cabinets. Food processing rooms demand fully waterproof enclosures built to withstand high-pressure chemical washdowns.
Enclosure Protection Standards Comparison
| Standard Rating | Environment Type | Protection Level |
|---|---|---|
| NEMA 4 / IP65 | Washdown environments | Protects against low-pressure water jets and total dust ingress. |
| NEMA 4X / IP66 | Corrosive washdown | Adds corrosion resistance (usually stainless steel) against harsh sanitizers. |
| NEMA 7 / ATEX | Hazardous areas | Contains internal explosions without igniting external combustible gases. |
| NEMA 12 / IP54 | Standard indoor | Protects against dripping non-corrosive liquids and standard airborne dust. |
Purchasing teams often fall for the hidden costs of heavily discounted imported tanks. These units frequently feature non-verified steel grades. A vendor might claim the steel is 316L, but independent material testing reveals inferior alloys.
Furthermore, these tanks frequently utilize dangerously thin inner shells. Under standard operational thermal stress, these thin walls buckle inward. The inner vessel becomes permanently warped. This ruins the scraping clearance for agitator blades and destroys the tank's utility.
Facility managers frequently underestimate the facility-side electrical requirements. Rapid heating phases draw tremendous amperage.
If you specify a high-kilowatt heater to reduce batch cycle times, you must verify your factory panel capacity. An underpowered facility circuit will constantly trip breakers during the ramp-up phase. You must closely coordinate the tank's voltage and phase requirements with your on-site master electrician.
Operators tend to neglect the jacket fluid. They assume thermal oil lasts forever. In reality, thermal oil experiences severe carbonization over time due to constant heating and cooling.
Carbonized fluid turns into a thick sludge. This sludge destroys heat transfer efficiency. Your batch times will slowly increase month after month. You must implement strict flush-and-fill maintenance schedules to preserve the electric elements and ensure consistent cycle times.
You must move your procurement focus beyond mere volume metrics like gallons or liters. Defining success requires mapping out your daily production realities.
Determine your maximum acceptable batch cycle time. Calculate the specific target temperature ramp rates needed for your chemical reactions. Establish the maximum allowable downtime for routine cleaning. By defining these precise metrics, you force vendors to engineer a system tailored to your actual business needs.
Do not accept marketing brochures as proof of engineering competence. Force potential vendors to provide transparent documentation. Use the following validation criteria:
We reiterate that a reliable electric heating mixing tank operates as a synergistic system. It relies heavily on advanced metallurgy, efficient thermal dynamics, and heavy-duty mechanical engineering. Failing to prioritize any single aspect inevitably compromises the entire processing line.
We urge buyers to evaluate long-term operational efficiency and lifecycle durability over a ten-year span rather than focusing solely on upfront acquisition costs. A well-engineered vessel eliminates wasted energy, prevents contaminated batches, and avoids catastrophic mechanical failures.
We strongly encourage you to consult with experienced process engineers. Reach out for a technical consultation to properly size, design, and specify the exact mixing equipment required for your unique industrial application.
A: Heating elements generally last between 3 to 5 years under standard operating conditions. Lifespan depends heavily on proper maintenance and usage. Elements immersed in clean, high-quality thermal fluid perform reliably for years. However, dry-firing an element can destroy it in minutes. We emphasize installing automated low-level sensors to prevent premature failure caused by fluid loss.
A: Retrofitting is extremely difficult and often cost-prohibitive. Increasing viscosity demands significantly higher motor horsepower and a thicker, stiffer drive shaft to handle the torque. The original mounting flange and gearbox usually cannot support these heavier components. We advise buyers to specify their equipment for the maximum potential viscosity they expect to encounter on day one.
A: Indirect heating uses electric elements to heat a jacket medium like thermal oil or water. This medium then transfers heat evenly across the inner tank wall, preventing product burning. Direct heating places the electric elements directly inside the product. Direct heating causes severe localized burning and is entirely unsuitable for most industrial mixing applications.
A: You should aggressively combat chloride stress corrosion by upgrading your tank material to 316L stainless steel. The molybdenum in 316L specifically resists chloride attacks. Furthermore, you must carefully control operating temperatures, as excessive heat accelerates corrosion rates. Finally, utilize proper chemical passivation procedures during routine maintenance to rebuild the steel's protective oxide layer.
