Equipment procurement in process manufacturing carries incredibly high stakes. Specify the wrong vessel, and you risk ruined batches, severe compliance failures, or excessive energy overhead. For many facilities, an electric system offers distinct operational advantages over traditional steam-based alternatives. This proves especially true for plants lacking centralized steam boilers. Processes demanding precise, localized temperature control also benefit greatly from electric configurations.
Navigating this procurement process requires a deep understanding of fluid dynamics and thermal engineering. This guide provides a structured approach to evaluating and specifying an industrial vessel. You will learn how to match agitator designs to product viscosity and align heating jacket configurations with your thermal requirements. We also explore the critical differences between sanitary food-grade equipment and highly durable chemical processors. By the end, you will know exactly how to assess infrastructure constraints and validate vendors.
Selecting the right equipment begins with understanding your specific application parameters. A heavily viscous resin behaves very differently from a thin beverage syrup. You must evaluate your volume requirements and fluid characteristics carefully before reviewing hardware specifications.
Vessel size directly impacts thermal dynamics and agitation efficiency. Production facilities typically differentiate between pilot-scale and full production-scale operations. Pilot vessels usually range from 100L to 500L. They allow engineers to test formulations before committing to massive industrial runs. Full production vessels scale up to thousands of liters. They demand vastly different engineering tolerances and motor sizes.
Engineers must always calculate the working volume rather than relying solely on total capacity. Follow these standard rules for volume scaling:
A properly sized mixing tank prevents splashing, maintains consistent heat distribution, and ensures operator safety.

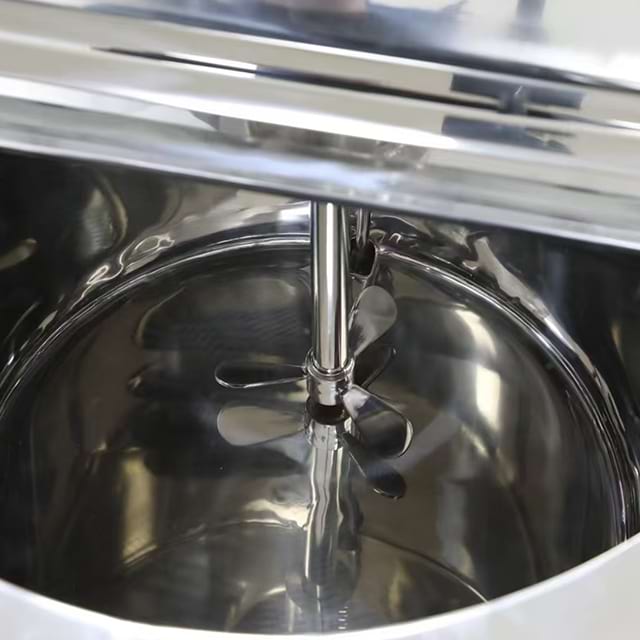

Fluid viscosity dictates your entire agitation strategy. Low-viscosity fluids like juices or basic solvents flow easily. They typically only require standard propeller or turbine agitators. These impellers spin at high speeds to generate axial or radial flow patterns. This rapid movement ensures rapid blending and uniform heat distribution.
Medium-to-high viscosity products present a tougher challenge. Lotions, resins, and heavy syrups resist flow. They cling to the internal walls of the vessel. For these applications, you need anchor agitators equipped with Teflon wall-scrapers. As the internal wall heats up, static product can easily scorch. Scrapers continuously sweep the heated surface. They push the heated product back into the center of the batch. This action prevents localized burning, commonly known as burn-on.
Emulsification requires entirely different mechanical action. Cosmetic creams and specialized chemical blends combine immiscible liquids like oil and water. These processes require high-shear homogenizers. A homogenizer uses a precision rotor and stator assembly. It mechanically tears fluid droplets apart at extreme speeds. You often see dual-agitation systems combining an anchor scraper with a high-shear homogenizer for complex cosmetics.
Thermal management defines the core functionality of your processing equipment. You must understand how thermal energy transfers from the power source to your product.

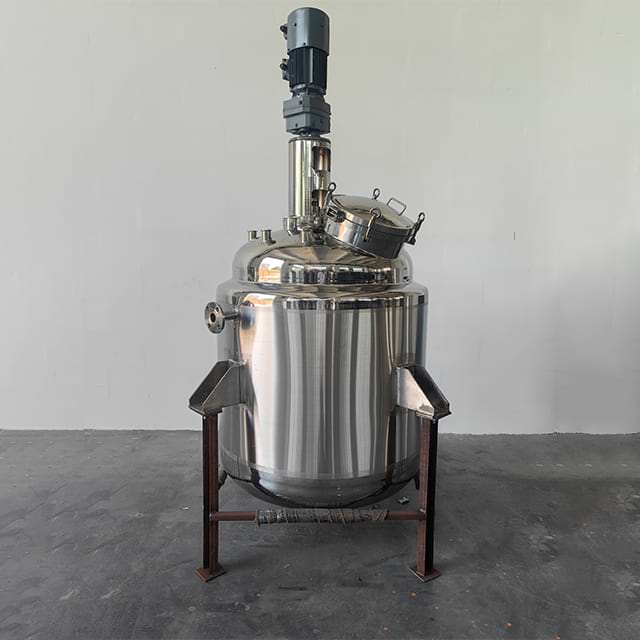

An electric heating system relies on indirect heat transfer. The equipment features a primary inner shell holding the product. A secondary jacket surrounds this inner shell. The manufacturer installs electric immersion heaters at the base of this secondary jacket. The jacket contains a heat transfer fluid. The immersion elements heat this fluid. The hot fluid then transfers thermal energy through the inner wall into the product.
This indirect method prevents extreme localized temperatures. Direct heating often degrades sensitive ingredients. By using a fluid medium, the system provides gentle, uniform thermal dispersion.
Choosing the correct heat transfer fluid is critical for operational success. Your desired maximum temperature dictates this choice.
Water jackets work perfectly for lower temperature requirements. They easily handle applications up to 90°C. Water transfers heat very quickly. It also requires minimal maintenance and poses no environmental hazards during disposal. Food and beverage applications rely heavily on water-based jackets for pasteurization and standard cooking.
Thermal oil jackets handle much higher thermal loads. Chemical reactions and heavy industrial processes often require temperatures up to 300°C. Water turns to steam at these temperatures, creating dangerous pressure. Thermal oil remains stable. However, oil systems require strict monitoring. Operators must watch for fluid degradation and ensure proper venting to prevent volatile gas buildup.
| Fluid Type | Max Operating Temp | Heating Speed | Primary Application | Maintenance Level |
|---|---|---|---|---|
| Water | Up to 90°C | Fast | Food, Beverage, Cosmetics | Low (Easy flushing) |
| Thermal Oil | Up to 300°C | Moderate | Chemicals, Resins, Polymers | High (Degradation monitoring) |
Bare heating jackets radiate immense heat into the surrounding facility. This wastes expensive electricity and creates extreme burn hazards for operators. A well-engineered electric heating tank includes a third outer layer called cladding. Manufacturers pack the space between the heating jacket and the cladding with high-density insulation. They typically use polyurethane foam or rock wool.
This insulation traps the thermal energy inside the jacket. It forces the heat inward toward the product. Good insulation reduces electrical consumption dramatically. It also keeps the exterior cladding cool to the touch, ensuring a safe working environment.
Regulatory frameworks dictate exact material specifications. You cannot use the same vessel for making orange juice and synthesizing industrial adhesives. Material science and surface engineering play crucial roles in compliance.
Sanitary processing demands absolute cleanliness. The FDA and equivalent global bodies strictly regulate food-grade equipment. The wetted parts must use 316L stainless steel. The "L" stands for low carbon, which prevents corrosion after welding. Manufacturers often use standard 304 stainless steel for the non-wetted exterior cladding.
Surface finish matters just as much as the alloy. Raw stainless steel features microscopic pits and crevices. Bacteria thrive in these pockets. Sanitary vessels require rigorous internal polishing. The standard requirement is a surface roughness (Ra) of less than 0.4 µm. This mirror-like finish eliminates bacterial growth pockets.
Modern sanitary operations also require automated cleaning. Your vessel must support Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems. Engineers integrate static or rotary spray balls into the lid. These spray balls douse the entire internal surface with caustic cleaners and sanitizers. The vessel design must eliminate all "dead legs." Dead legs are stagnant pipe sections where cleaning fluids cannot circulate.
Chemical processing focuses on extreme durability and hazard mitigation. Aggressive chemicals quickly destroy standard stainless steel. Highly acidic or alkaline compounds require specialized alloys. Engineers frequently specify Hastelloy, Titanium, or thick PTFE linings to combat severe corrosion.
Volatile solvents introduce explosive risks. Standard electrical components generate microscopic sparks during operation. In a solvent-heavy environment, these sparks cause catastrophic explosions. Chemical vessels mandate ATEX or UL explosion-proof ratings. Manufacturers install explosion-proof motors, sealed control panels, and intrinsically safe heating elements. Every electrical connection must isolate potential ignition sources from ambient chemical vapors.
Procuring the hardware solves only part of the equation. Installing and operating heavy industrial equipment introduces significant facility challenges. You must proactively evaluate your infrastructure to avoid project delays.
Electric heating requires massive power draws. A large electric heating mixing tank might require 50kW to 100kW of heating power alone. You must verify your facility's electrical capacity before specifying these high-kilowatt elements. Check your available voltage and amperage. Ensure your plant can handle the continuous load without tripping breakers. Facility phase balancing is also critical. Discuss your power limitations with the manufacturer early in the design phase.
Industrial equipment requires consistent upkeep. You must plan for planned downtime. Consider the following maintenance realities:
Physical constraints ruin many installations. A fully assembled vessel might not fit through standard roll-up doors. Measure every doorway and corridor along the installation path. Ceiling height poses another major risk. Agitator shafts require significant vertical clearance for installation and future removal. Ensure your facility offers enough headroom above the vessel.
Finally, evaluate floor load-bearing limits. A 2000L vessel filled with high-density syrup weighs several tons. The concentrated load on the four legs can easily crack standard concrete floors. Consult a structural engineer if you doubt your floor slab capacity.
Choosing the right engineering partner ensures a smooth deployment. Do not evaluate vendors on specifications alone. Demand transparency, rigorous testing, and comprehensive support.
Quality manufacturing leaves a paper trail. Before you authorize fabrication, demand comprehensive CAD and 3D drawings. Review every nozzle placement and valve height. Insist on Material Test Reports (MTRs) for all stainless steel. These documents prove the steel mill actually produced authentic 316L alloy. Also, request welder certifications. ASME-certified welders ensure structurally sound and sanitary joints.
Never accept delivery without a Factory Acceptance Test (FAT). The FAT proves the equipment performs as promised before it leaves the factory floor. During the FAT, you should verify several critical metrics:
Industrial equipment outlasts its individual components. Wear parts will eventually fail. Evaluate the manufacturer based on their spare parts inventory. Ask them about lead times for replacement mechanical seals, thermal sensors, and heating elements. Review the warranty terms carefully. Ensure they provide clear guidelines for remote troubleshooting and on-site engineering support.
Specifying process equipment demands meticulous attention to detail. You must balance your specific process requirements against strict industry compliance rules. Here are the most critical next steps to ensure a successful deployment:
Gather these details into a comprehensive requirement sheet. Use this data to request highly specific, accurate proposals from vetted engineering partners. A well-specified vessel guarantees efficient production, maintains safety, and secures your long-term operational stability.
A: Heat-up times vary wildly based on several variables. The total kilowatt rating of the heating elements dictates raw power. Batch volume and the specific heat capacity of your product determine how much energy is absorbed. Finally, your delta T (the required temperature change from ambient to target) dictates the duration. Discuss these specific metrics with your manufacturer for accurate estimates.
A: Preventative maintenance schedules depend on the fluid type and operating conditions. Water jackets rarely need complete replacement unless scaling occurs. Thermal oil generally requires replacement every 1 to 3 years. High operating temperatures accelerate oil breakdown. Monitor the oil for signs of oxidation, sludge formation, or a drop in heating efficiency.
A: Yes, engineers frequently customize vessels for extreme viscosity. They utilize dual-motion agitation systems. These systems combine slow-moving anchor scrapers with high-shear central mixers. Manufacturers also upgrade gearboxes to provide massive low-end torque. This ensures the motor maintains steady rotation without overheating or overloading.
A: GMP-compliant vessels adhere to strict sanitary regulations. They feature highly polished internal welds (Ra < 0.4 µm) to prevent bacterial growth. The piping design eliminates dead legs where fluids stagnate. GMP vessels also use fully traceable materials (backed by MTRs) and incorporate specialized sanitary tri-clamp fittings for easy sterilization.
