Why Food Manufacturers Use Rotating Heating Mixing Tanks for Viscous Materials

Scaling up the production of high-viscosity foods presents a massive engineering hurdle. Heavy syrups, nut butters, caramel, and cheese pastes push standard equipment past operational limits. These challenging textures frequently result in inconsistent batches and severe thermal degradation.

Standard agitation simply cannot maintain uniform heat distribution in high-centipoise (cP) materials. Stationary boundary layers form along the heated walls. They cause localized scorching and ruin the final product. Food manufacturers increasingly adopt specialized mixing equipment to solve this exact bottleneck. Advanced vessel designs successfully bridge the gap between aggressive thermal processing and complex rheology.

You will learn how modern engineering handles thick, sticky food materials. We explore core mechanics, sanitary compliance standards, and crucial evaluation criteria. Ultimately, you will discover how to implement these systems effectively. You can achieve consistent product quality without compromising facility safety or compliance.

Key Takeaways

• Preventing Thermal Degradation: Rotating scraper systems continuously renew the product at the heat transfer surface, eliminating burn-on and fouling in thick materials.
• Sanitary Compliance: Food-grade tanks demand strict adherence to 3A and FDA standards, requiring crevice-free designs and seamless Clean-In-Place (CIP) integration.
• Implementation Prerequisites: Successful adoption requires aligning facility utilities (steam or thermal fluid capacity) with the tank’s specific jacket requirements.

The Engineering Challenge of Heating High-Viscosity Foods

Processing thick food materials demands highly specialized fluid dynamics. A standard stirring mixing tank routinely fails under these conditions. It creates a mechanical phenomenon known as channeling. Channeling happens when only the material directly surrounding the central blade moves. The outer perimeter of the fluid remains completely stagnant. Thick materials stubbornly resist flow. They cling to the internal vessel walls.

This stagnation creates severe thermal dynamics issues. Stagnant fluid acts as an insulator. Poor conductive heat transfer ruins the batch. A stationary boundary layer sits directly against the intensely heated steel. Localized scorching happens almost immediately. Sugars caramelize too rapidly. Proteins denature and burn onto the metal surface. Heat fails to penetrate the center of the vessel.

These mechanical failures cause substantial commercial problems. Wasted yield becomes a daily reality. Burn-on contaminates the entire batch. It creates inconsistent flavor profiles. Texture variations frustrate quality control teams. Furthermore, scorched walls require excessive manual scrubbing. Operations face extended downtime just to clean heavily fouled equipment. A better engineering approach becomes absolutely necessary.

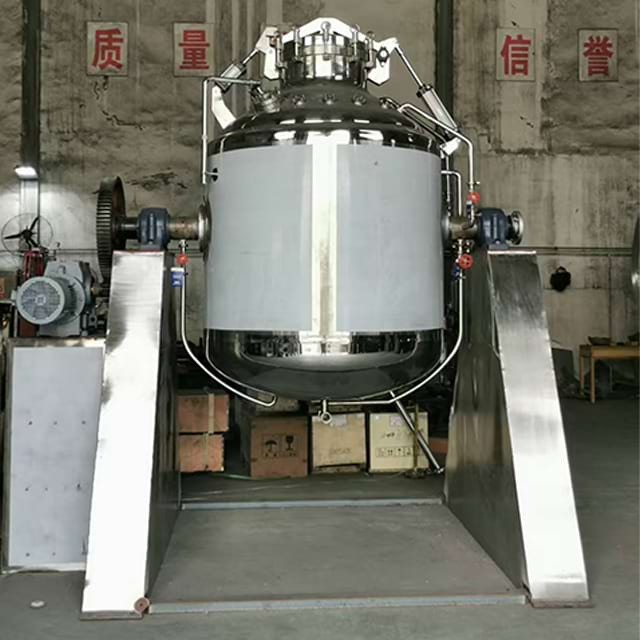

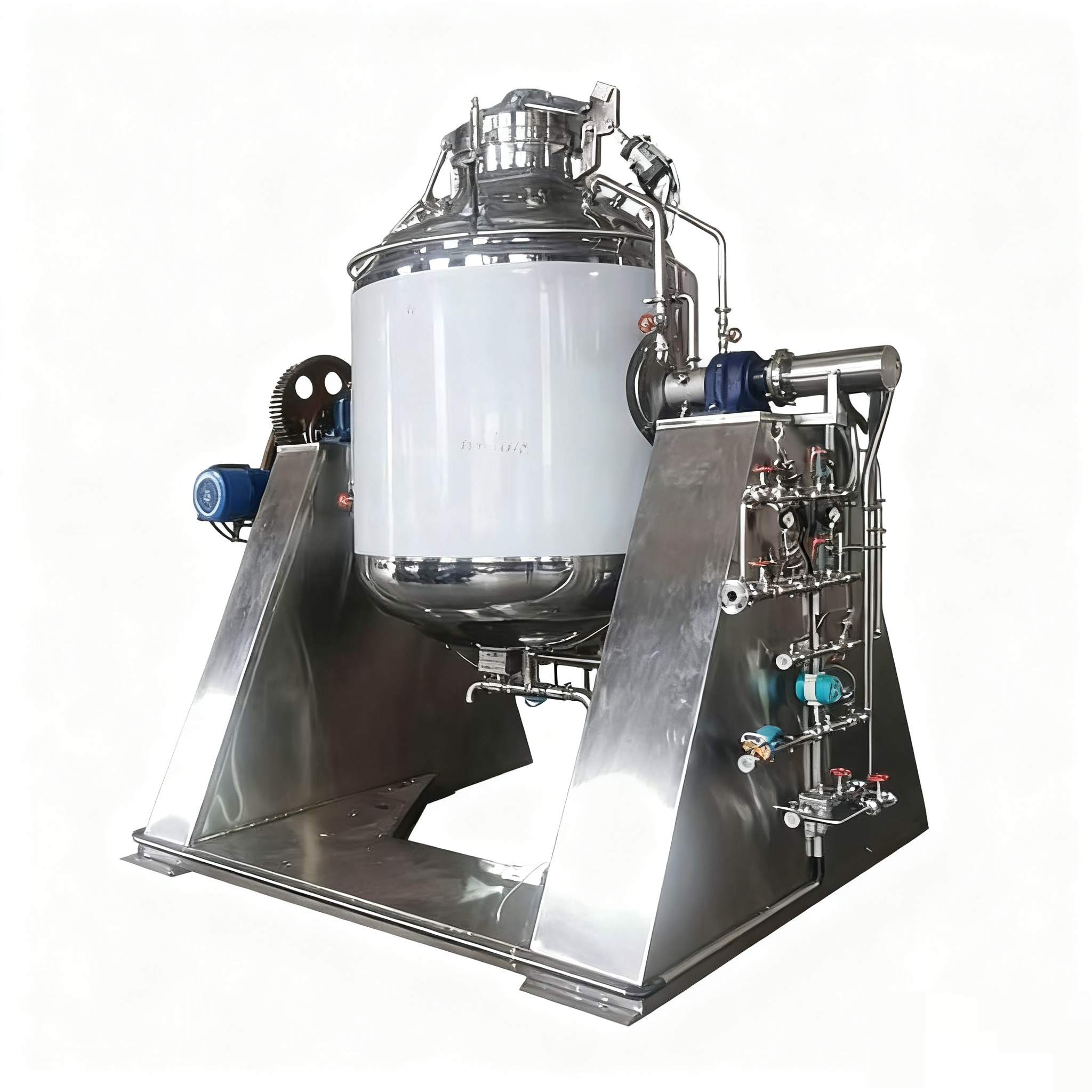

Core Mechanics of a Rotating Heating Mixing Tank

Modern equipment solves these rheological challenges through dynamic heat transfer. A rotating heating mixing tank relies on scraped-surface agitation. Specialized arms carry spring-loaded or hinged scrapers. Manufacturers typically make these scrapers from food-grade PTFE (Teflon). The scrapers physically sweep the interior heated vessel walls.

Continuous surface renewal drives the efficiency of this system. The sweeping action forces hot material into the cooler center. It simultaneously pulls fresh, unheated material against the thermal jacket. This constant renewal radically improves the overall heat transfer coefficient. Engineers call this the U-value. Higher U-values mean faster, more uniform heating across the entire batch.

Counter-rotating multi-agitation tackles the most stubborn materials. We see three distinct mechanical actions working together:

1. Outer Sweeping: The outer rotating anchor moves slowly. It peels product away from the walls. It prevents burn-on.
2. Inner Shearing: Inner blades or high-shear dispersers spin rapidly in the opposite direction. They break up lumps.
3. Homogenization: The opposing forces fold the material repeatedly. They eliminate dead zones entirely. The mixture becomes perfectly homogenous.

This multi-shaft design handles phase changes seamlessly. Ingredients might start as thin liquids. They often thicken dramatically during the heating process. Counter-rotating forces ensure the material keeps moving regardless of its changing viscosity.

Crucial Evaluation Criteria for a Viscous Liquid Mixing Tank

Selecting a viscous liquid mixing tank requires careful component evaluation. Agitator torque represents the most critical specification. Thick materials demand massive rotational force. Cold starts create immense physical resistance. Viscosity drops as temperature rises. You must size motors to handle the absolute worst-case scenario. Variable frequency drives (VFDs) and high-torque gearboxes manage these sudden resistance spikes safely.

Thermal jacket selection depends heavily on facility infrastructure. You must match the heating medium to your boiler capacity and product requirements. Below is a comparison of common configurations.

Thermal Jacket Comparison Chart

Regulatory and sanitary design features remain strictly non-negotiable. Food plants face rigorous inspections. The equipment must meet 3A and FDA standards. All product contact parts require 316L stainless steel. Fabricators must polish internal surface finishes to an Ra value below 0.8 µm. This ultra-smooth finish prevents bacterial adhesion.

Engineers must eliminate all "dead legs" in the plumbing. Dead legs are stagnant pipe sections where product gets trapped. Flush-mount bottom valves sit perfectly level with the interior floor. They ensure complete drainage. These sanitary details guarantee safe, uncontaminated food production.

Implementation Realities: Rollout Lessons and Facility Risks

Installing heavy process equipment introduces unexpected facility risks. Utility bottlenecks surprise many operators. Do not underestimate boiler capacity. A large viscous batch demands incredible peak steam during the initial heat-up phase. This sudden demand can easily strain unprepared facility infrastructure. Other processes might lose steam pressure. You must audit your total utility load before installation.

Spatial constraints create notorious maintenance headaches. Many teams focus solely on the tank footprint. They ignore vertical requirements. A common engineering oversight involves ceiling height. You need significant vertical clearance to lift complex multi-shaft agitators out of the tank. Technicians require this space for routine inspection. Replacing mechanical seals or damaged scrapers becomes impossible without adequate ceiling room.

Operator adoption and safety require updated protocols. Heavy-duty mixing introduces new workplace hazards.

• Best Practice: Thermal Safety: Insulate outer tank walls thoroughly. Update standard operating procedures (SOPs) regarding the handling of heated jackets. Severe burns occur when operators touch uninsulated vessels.
• Best Practice: Automated CIP: Automate the Clean-In-Place cycles. Manual cleaning exposes workers to dangerous chemicals and high temperatures.
• Common Mistake: Override Switches: Never allow operators to bypass interlock safety switches on tank lids. Spinning high-torque scrapers can cause catastrophic injuries.

Thorough training prevents equipment damage. Operators must understand how viscosity changes with temperature. They should never start the high-shear agitator in a fully cold, solid block of material.

Building Your Business Case and Shortlisting Suppliers

Procuring custom process equipment requires rigorous specification. You must define your process parameters accurately. Vague requests lead to underpowered machinery. Formulate a detailed Request for Quote (RFQ). Include precise viscosity measurements in centipoise (cP) at specific target temperatures. Document the exact specific gravity. Define your desired batch size. State your strict heating and cooling time targets.

Never base your purchase solely on theoretical calculations. Theoretical fluid dynamics rarely match the sticky reality of caramel or cheese paste. You must insist on Factory Acceptance Testing (FAT) and pilot testing. Run actual product samples in a vendor’s pilot facility. Verify the heat transfer rates firsthand. Observe the scraper efficacy. Ensure the vessel actually empties completely through the bottom valve.

Vendor service and parts availability dictate long-term success. Frame your final decision around lifecycle support. Custom mechanical seals eventually fail. PTFE scrapers wear down from constant wall friction. Evaluate the supplier's average lead times for these specific replacement parts. Ask about local technician availability. An unsupported machine sitting idle halts your entire production line.

Conclusion

Processing heavy, sticky food products requires engineering built specifically for extreme rheology. Generic mixing solutions simply cannot handle high-viscosity demands. You need equipment designed to overcome thermal insulation and mechanical channeling.

The right equipment perfectly balances aggressive agitation, controlled heat transfer, and stringent hygiene. Counter-rotating shafts ensure homogenous blending. Scraped surfaces prevent scorching. Sanitary fittings protect public health.

Take immediate action to improve your process. Audit your current batch times and document exact yield losses. Establish a clear performance baseline. Gather your specific product rheology data. Then, contact qualified manufacturers to schedule direct pilot testing with your toughest ingredients.

FAQ

Q: What is the maximum viscosity a rotating heating mixing tank can handle?

A: Standard agitators typically fail around 50,000 cP. However, specialized scraped-surface and counter-rotating dual-shaft tanks can effectively process materials well over 500,000 cP. They routinely handle extreme rheology like heavy doughs, thick gums, and dense nougats without stalling the motors.

Q: How does a viscous liquid mixing tank integrate with CIP (Clean-in-Place) systems?

A: Integration relies on strategically placed spray balls that drench the interior. The wall scrapers actually assist by rotating during the wash cycle, providing a self-cleaning mechanical scrubbing action. Flush bottom valves ensure full, unimpeded drainage of harsh cleaning chemicals and rinse water.

Q: Can the same tank be used for both heating and cooling viscous products?

A: Yes. Tanks utilize dual-zone jackets or automated valving to switch seamlessly from steam or hot oil to chilled water or glycol. The vessel's metallurgy and welding must be specifically engineered to withstand the severe thermal shock of these rapid temperature transitions.
