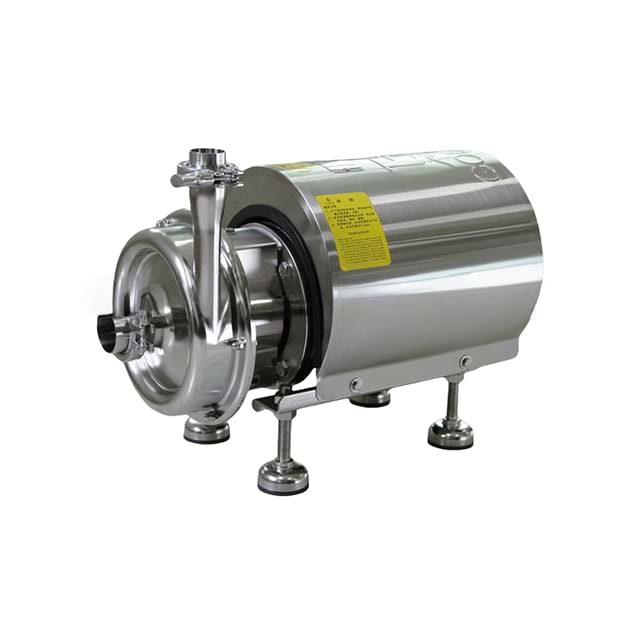

Manual teardown of process equipment introduces severe business risks. Human error frequently occurs during manual scrubbing routines. High labor costs drain operational budgets daily. Unacceptable downtime halts lucrative production schedules. Modern automated cleaning relies heavily on intelligent equipment design. However, an important distinction exists in fluid processing. A device advertised as a sanitary pump is not automatically Clean-In-Place (CIP) capable. It might also fail Sterilize-In-Place (SIP) requirements. Specific fluid dynamics dictate true hygienic compliance. Material tolerances play a massive role during thermal cycles. Precise structural designs determine overall cleanability.
Misunderstanding these requirements leads to dangerous microbial growth. Our objective is clear and practical. We will define strict mechanical criteria. We will outline the exact operational requirements. These guidelines make a unit genuinely CIP/SIP capable. You will receive a robust evaluation framework. Use it to assess equipment for food, beverage, and pharmaceutical processing lines.
You must understand the distinct roles inside a facility. A modern CIP cleaning system utilizes multiple fluid movers. First, we have the primary process pump. This unit moves the actual consumer product. During a wash cycle, the system cleans this unit in place. Second, we have the CIP supply pump. This dedicated unit drives the harsh cleaning solutions. It pushes chemicals through the entire piping network. It also serves as the return pump sometimes. Both types require exceptional hygienic designs.
True cleanability demands absolute precision. The unit must allow fluids to reach every internal surface. Cleaning chemicals must contact 100% of wetted areas. You cannot disassemble the casing for manual inspection. Complete coverage prevents dangerous microbial growth. It also stops cross-contamination between different product batches. A hidden crevice traps proteins easily. Bacteria multiply rapidly inside these tiny spaces. Flawless fluid flow prevents this biological hazard.
Operational versatility defines a high-quality unit. Facilities process fluids of vastly different consistencies. Pumps handle thick syrups during normal daily operation. Later, they pump highly fluid, water-like cleaning chemicals. These changing viscosities stress the mechanical components heavily. The equipment must reliably handle these extreme variations. It cannot compromise the required shear parameters. It must maintain steady pressure profiles. Cavitation ruins internal metal surfaces quickly. A proper design prevents cavitation entirely.
Wetted parts demand extremely strict roughness averages. Engineers measure surface roughness using the Ra scale. Hygienic surfaces typically require Ra values below 32 µin. Smoother finishes prevent persistent bacterial adherence. Microscopic scratches harbor dangerous organic microbes. Biofilms form rapidly on rough metal textures. Standard polishing removes many microscopic ridges. Electropolishing provides an even superior, mirror-like finish. We strongly recommend electropolished surfaces for pharmaceutical applications.
Fluid pooling causes severe contamination issues. Casing configurations must allow complete gravity drainage. Port designs require exact mathematical angling. Wash water cannot remain inside the main casing. Residual caustic chemicals ruin subsequent product batches. Proper installation angles guarantee liquids drain naturally. Technicians often mount units vertically to ensure complete drainage. Horizontal mounts require carefully engineered eccentric reducers.
Internal geometries dictate fluid flow behavior. Stagnant zones create highly dangerous dead legs. Fluid velocity drops dramatically in these specific areas. Chemicals fail to penetrate deep recesses effectively. Active flow must scrub every internal corner. Designers strictly eliminate sharp internal angles. They use sweeping radii to guide the fluids. Industry standards dictate specific length-to-diameter ratios. These ratios prevent stagnant fluid accumulation.
Seals present the highest contamination risk overall. Mechanical seals must sit directly inside the fluid path. O-rings require strategic positioning facing the active flow. This positioning ensures continuous active flushing. Hidden O-ring grooves trap tiny particulate matter. Cleanability requires modern front-loading seal designs. Fast-moving fluids scrub these components continuously. Engineers avoid complex multi-spring seals for this exact reason.
Chemical cleaning requires specific hydraulic conditions. High-velocity flow creates turbulent scouring forces. This turbulence scrubs the internal chamber vigorously. Elastomers face an extremely harsh environment. They must withstand aggressive caustic chemical washes. Sodium hydroxide breaks down heavy organic soils. Nitric acid removes tough mineral deposits. Facilities run these chemicals at elevated temperatures. Wash fluids frequently reach 80 to 90°C. A genuine CIP sanitary pump uses chemically resistant seals. These elastomers resist degradation over thousands of wash cycles.
Sterilization destroys all remaining biological microorganisms completely. It relies heavily on extreme phase-change heat. Live saturated steam provides this necessary thermal energy. Steam temperatures typically exceed 121°C. The process holds this intense temperature for a sustained duration. Usually, biological protocols require 30 to 45 minutes of continuous exposure. This sustained heat guarantees total microbial destruction.
Rapid heating introduces severe mechanical stress. Rotors and casings expand quickly under live steam. Elastomers react differently to this intense heat. Common materials include EPDM and PTFE. These components swell significantly during sterilization. Sudden thermal expansion causes catastrophic failures sometimes. Rotors might seize against the outer casing. Metal surfaces warp under uneven heating cycles. High-quality designs accommodate this sudden expansion safely. They maintain strict seal integrity throughout the entire process.
| Parameter | Clean-In-Place (CIP) | Sterilize-In-Place (SIP) |
|---|---|---|
| Primary Mechanism | Chemical action and fluid turbulence | Thermal energy from live steam |
| Typical Temperatures | 80°C to 90°C | 121°C or higher |
| Media Used | Sodium hydroxide, nitric acid, hot water | Saturated steam |
| Pump Challenge | Chemical compatibility, high flow rates | Thermal expansion, extreme heat |
A perfectly designed unit still faces operational risks. It will fail cleaning verification easily. Improper piping ruins the most hygienic setup. Surrounding infrastructure controls the ultimate cleaning success. The entire pipeline must support turbulent flow patterns. Restrictive piping drops fluid velocity below critical thresholds. The equipment cannot overcome bad system architecture.
PD units include rotary lobe and twin screw models. They process highly viscous materials gently. High-speed wash fluids present a massive operational challenge. These units often require external bypass loops. The bypass loop accommodates the massive flow rates. It pushes large chemical volumes without over-pressurizing the housing. Standard PD units restrict cleaning velocities severely. Advanced twin-screw models handle both processing and cleaning speeds. However, most traditional PD setups need structural bypass assistance.
Hot cleaning chemicals pose unique hydraulic challenges. Liquids near their boiling point flash into vapor quickly. This flashing causes severe internal cavitation. Cavitation destroys expensive metal impellers rapidly. Ensure the supply line provides adequate Net Positive Suction Head (NPSHa). Proper inlet pressure prevents dangerous vapor bubbles. Engineers must calculate NPSH values for high-temperature chemicals explicitly.
You must monitor cleaning efficacy constantly. Physical signs indicate hidden internal failures. Unexpected pressure drops signal internal clogging. Lingering odors suggest organic residue remains inside. ATP swab failures provide undeniable scientific proof. Microbes leave behind easily detectable ATP molecules. Recurrent positive swab results require immediate mechanical investigation. Premature degradation of O-rings also indicates severe trouble.
Manufacturer claims mean very little in hygienic processing. Look for independent third-party verifications exclusively. 3-A Sanitary Standards provide strict baseline construction rules. EHEDG guidelines offer comprehensive European hygienic testing standards. Always demand FDA-compliant materials for every wetted component. Proper certifications guarantee specific design tolerances.
Evaluate specific design choices logically during procurement.
Evaluate overall efficiency across multiple operational dimensions. Look beyond standard product processing metrics. Assess the measurable reduction in cycle times. A highly efficient unit uses fewer natural resources. It decreases hazardous chemical usage significantly. It slashes total water consumption per batch. Faster cleaning cycles increase overall facility throughput. Efficient equipment scales perfectly as production volumes grow.
Require detailed technical documentation from all suppliers. Follow this precise sequence:
Selecting a capable fluid handling unit requires careful balance. You must weigh process performance against rigorous cleanability standards. Assumptions lead to disastrous compliance failures frequently. A simple hygienic label guarantees absolutely nothing. Proper equipment demands specific internal fluid dynamics. It requires exact material selections for extreme temperatures.
Next steps involve auditing your current production lines. Check your historical cycle times thoroughly. Review your microbiological failure rates. Consult directly with professional application engineers. Review your fluid dynamics carefully. Analyze sizing and piping schematics deeply. Secure engineering approval before finalizing any procurement decisions.
A: Generally, no. Standard PD models process viscous fluids at low speeds. They often require a dedicated centrifugal unit to push high-velocity fluids through them. Alternatively, they need a bypass system. Specific twin-screw designs are the exception. Engineers rate them for both low-speed processing and high-speed cleaning.
A: Industry standards typically dictate specific fluid velocities. You need 1.5 to 2.0 meters per second. This equals roughly 5 to 7 feet per second. This speed achieves the necessary turbulent flow. Turbulence provides the mechanical scouring needed to clean internal surfaces thoroughly.
A: Leading indicators highlight cleaning failures quickly. Watch for recurrent positive microbiological ATP swabs. Residual product carryover between batches indicates major problems. Unexpected pressure drops point to internal blockages. Premature degradation of O-rings requires frequent replacement. These signs mean chemicals or heat are damaging your equipment.
