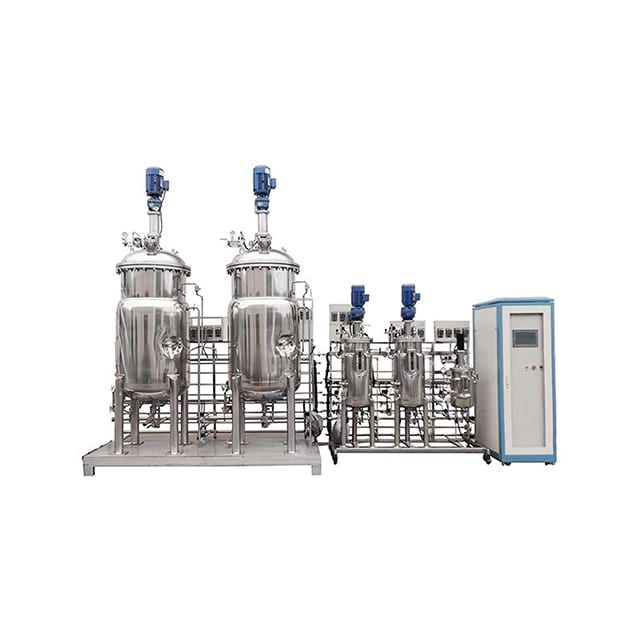

Transitioning from lab-scale cell culture to commercial production is a massive undertaking. Minor design flaws compound rapidly at this stage. They quickly lead to lost batches and compromised sterility. Poor mass transfer also becomes a severe issue during scale-up. Precision dictates your ultimate success. Facility managers need robust, reliable equipment. You must guarantee viable environments for sensitive biological agents. This guide provides process engineers a transparent, evidence-based framework. You will learn how to specify high-performance fermentation vessels. We unpack three critical pillars of vessel design. These include agitation mechanics, hygienic compliance, and thermal regulation. Understanding these components helps you avoid common pitfalls. Following these guidelines ensures maximum yield. You will also maintain strict cGMP compliance across your operations. Your facility will operate efficiently and safely.
Translating biological needs into physical engineering is the first step. Every microbial culture demands specific environmental controls. Oxygen demand varies wildly among different strains. Shear sensitivity dictates how aggressively you can mix the fluid. Microbes also generate substantial heat during rapid growth phases. These biological facts directly dictate your equipment specifications. You must size your microbial fermentation tank correctly to handle these extremes. Overlooking these biological parameters leads to poor cell viability.
Working volume and total volume are two very different metrics. Total volume represents the absolute physical capacity. Working volume is the actual liquid level during operation. You should calculate an optimal headspace of 20-30 percent. This extra space accommodates unpredictable foaming events. Aggressive aeration pushes liquid upward. Adequate headspace protects your exhaust filtration system from clogging. A clogged filter risks over-pressurization and catastrophic batch failure. Proper volume calculation is essential for safe, continuous operations.
Material grade selection impacts both compliance and initial budget. Industry standards require 316L stainless steel for all product-contact surfaces. The "L" stands for low carbon. This alloy offers superior corrosion resistance. It withstands harsh chemicals used during SIP cycles. High-temperature chlorides quickly degrade lesser materials. However, non-contact surfaces allow for budget optimization. You can safely use 304 stainless steel for outer cooling jackets. Structural supports and legs also utilize 304 stainless steel. This transparent material strategy balances regulatory compliance and smart spending.
Surface finish determines how effectively you can clean your vessel. Engineers measure this roughness using the Ra (Roughness Average) standard. Mechanical polishing removes large imperfections. Electropolishing then removes microscopic peaks and valleys. An internal finish of Ra ≤ 0.4 µm (15 micro-inch) is the industry standard. This ultra-smooth surface prevents stubborn biofilm adherence. Bacteria cannot easily cling to electropolished walls. A smoother surface guarantees efficient CIP and SIP cycles.
Sanitary welds are another non-negotiable sterility requirement. Manual welding often introduces human error. Orbital welding machines provide consistent, repeatable joints. A proper sanitary weld must feature zero dead-legs. Dead-legs are stagnant branches where fluid stops moving. Bacteria hide and multiply in these blind spots. You need continuous, crevice-free geometries throughout the entire vessel. Reliable sterilization demands perfectly smooth transitions between all metal plates.
Port and valve placements require meticulous planning. Poor placement creates dangerous sterilization blind spots. You must evaluate the location of sanitary diaphragms carefully. Sampling ports should slope downward to drain completely. Exhaust lines require strategic routing to prevent condensation pooling. These components must integrate seamlessly with automated CIP/SIP skids. Every nozzle needs exposure to high-velocity cleaning fluids. You cannot rely on manual scrubbing in modern bioprocessing.
Your design must align with strict regulatory frameworks. ASME BPE (Bioprocessing Equipment) dictates exact dimensional tolerances. FDA guidelines govern material safety and traceability. Adhering to cGMP standards ensures consistent product quality. Inspectors scrutinize your equipment during facility audits. Compliant vessels make validation procedures straightforward. A non-compliant design guarantees expensive retrofits down the road.
Agitation systems drive vital mass transfer within your mixing tank. Selecting the correct impeller is your most important mixing decision. Impellers must match the specific process rheology.
Baffle configuration profoundly impacts mixing efficiency. Smooth walls cause the fluid to rotate in a solid block. This creates a deep, central vortex. Vortex formation wastes motor energy and damages cells. Strategically placed baffles disrupt this circular rotation. They convert radial flow into axial turbulence. This disruption dramatically improves the oxygen transfer rate (OTR). High OTR is critical for aerobic fermentation success. Proper baffles achieve this without over-taxing the drive motor.
Drive mechanisms determine scalability and contamination risk. Top-entry drives are standard for large industrial vessels. Bottom-entry drives save headroom in tight facility spaces. You must also evaluate seal integrity carefully. Mechanical seals offer robust torque handling for viscous fluids. However, they introduce a slight contamination risk over time. Magnetic couplings completely eliminate physical penetration of the vessel shell. They offer absolute sterility but handle lower maximum torque.
Table: Agitation Drive Comparison
| Drive Configuration | Seal Type | Contamination Risk | Torque Capacity |
|---|---|---|---|
| Top-Entry | Mechanical | Low to Moderate | High |
| Top-Entry | Magnetic | Zero | Moderate |
| Bottom-Entry | Magnetic | Zero | Low to Moderate |
| Bottom-Entry | Mechanical | Moderate | High |
Managing heat is a massive challenge in biofermentation. Rapid microbial growth produces an intense exothermic output. E. coli cultures, for example, generate tremendous thermal energy. Without proper cooling, cell viability drops rapidly. Thermal stratification is a major risk in large vessels. Stratification means hot and cold zones form inside the liquid. You need uniform temperature distribution. Precise thermal regulation dictates consistent batch yields.
Selecting the correct cooling jacket architecture solves this problem. Different vessel sizes require different jacket technologies. You must match the jacket to your utility supply.
Chart: Cooling Jacket Application Matrix
| Jacket Architecture | Heat Transfer Efficiency | Ideal Application | Pressure Rating |
|---|---|---|---|
| Dimple Jackets | High (induces turbulence) | Standard applications, medium vessels | Moderate |
| Half-Pipe Coils | Superior | Large-scale vessels, heavy industrial | High |
| Conventional Jackets | Low to Moderate | Small vessels, low-demand tasks | Low |
Dimple jackets offer excellent heat transfer efficiency. The dimples create turbulence in the cooling media. This turbulence strips away boundary layers. They also add structural rigidity while lowering overall weight. Half-pipe coils handle much higher pressure cooling media. They are superior for massive, large-scale commercial vessels. Conventional jackets utilize an open outer shell. They have lower flow velocity. We generally reserve them for small or low-demand vessels.
Sensor topology requires careful engineering. Integrating RTDs or thermocouples demands strategic placement. A common pitfall is relying on a single-point sensor. One sensor cannot detect thermal dead zones near the bottom. Scaled-up operations require multi-point thermal mapping. You should place sensors at different liquid elevations. Multiple probes ensure the automation system sees the true average temperature. This redundancy protects your batch from hidden thermal spikes.
Selecting the right fabrication partner ensures project success. You must first assess customization versus standardization. Off-the-shelf modular designs offer rapid speed-to-market. They work well for standard microbial processes. However, complex facilities require bespoke engineering. You may need specialized downstream integration. Custom port layouts help you connect unique filtration skids. An experienced manufacturer guides you toward the most practical choice. A reliable stainless steel biofermentation tank must fit your specific footprint.
Documentation and traceability are absolutely critical. Regulatory auditors will demand complete paperwork. Material Test Reports (MTRs) prove the exact chemical composition of the steel. Weld logs identify who performed each weld and when. The manufacturer must provide a comprehensive turnover package (TOP). The TOP acts as the birth certificate for your vessel. Without this documentation, you cannot validate the equipment. Incomplete paperwork delays your production timeline indefinitely.
Rigorous testing protocols must exist in the vendor contract. Factory Acceptance Testing (FAT) happens before shipment. You must witness these tests firsthand. The vendor should perform riboflavin coverage testing. This proves the CIP spray balls reach every internal surface. Hydro-testing confirms the cooling jackets can handle maximum rated pressure. Site Acceptance Testing (SAT) happens after installation at your facility. Explicit testing requirements prevent defective equipment from entering your cleanroom.
Purchasing a commercial-scale vessel requires balancing several engineering disciplines. You must harmonize mass transfer capabilities with absolute sterility. Precise thermal control acts as the final pillar of success. Ignoring any single factor leads to inconsistent yields. High-quality 316L materials and expert orbital welding secure your biological environment.
Mitigating risk starts long before fabrication begins. Upfront over-communication prevents costly retrofits later. You must define your fluid rheology clearly. Share your exact yield targets with the design engineers. Discuss your facility utility limits, like chilled water capacity, early in the process. Transparency eliminates surprises during the FAT stage.
Your next steps require decisive action. Audit your current process constraints immediately. Write a detailed User Requirement Specification (URS) document. Outline every biological and mechanical need. Finally, initiate deep technical dialogues with shortlisted manufacturers. Compare their testing rigor against your new standards. A disciplined approach guarantees a reliable, high-yield production line.
A: Focus on your pressure ratings, flow rates, and vessel size requirements. Dimple jackets handle moderate pressures and are excellent for medium-sized vessels because they induce turbulent flow. Half-pipe coils withstand much higher utility pressures. They are the preferred choice for massive commercial vessels requiring aggressive cooling.
A: Typical timelines range from 16 to 24 weeks. This duration factors in initial design approval, 316L material sourcing, custom fabrication, and rigorous Factory Acceptance Testing (FAT). Highly complex bespoke vessels may require additional weeks for specialized automation integration.
A: The "L" in 316L denotes low carbon. This specific alloy offers superior resistance to pitting and corrosion. High-temperature chlorides used during aggressive CIP and SIP processes quickly degrade 304 stainless steel. Using 316L prevents microscopic rust pits where bacteria can hide.
A: Baffles disrupt the natural rotation of the fluid. This prevents deep vortex formation and increases axial turbulence. Enhanced turbulence dramatically improves gas-liquid mixing. It maximizes the oxygen transfer rate (OTR), ensuring aerobic microbes receive enough oxygen to achieve peak cell density.
A: Retrofitting is generally unfeasible and risky. Sanitary weld retrofits are exceptionally expensive. Standard tanks usually lack the required Ra surface finishes and zero dead-leg geometries. Purpose-built sterile vessels are significantly more reliable for achieving strict cGMP compliance.
