In high-volume manufacturing, a cleaning bottleneck compromises the entire production line. Unwashed parts pile up rapidly on the factory floor. They block downstream assembly stages and eat directly into your operating margins. The decision to invest in a continuous-feed cleaning solution requires moving far beyond basic spec sheets. You must evaluate real-world throughput, daily maintenance demands, and physical line integration. A poorly chosen machine often causes unexpected jams or excessive chemical carryover. Equipment failure here effectively shuts down your entire facility.
This guide outlines a strict, evidence-based evaluation framework for decision-makers. It helps engineering and procurement teams navigate complex equipment specifications confidently. We will show you how to select the right equipment for continuous, high-capacity operations. You will learn to maximize daily output without sacrificing environmental compliance or sensitive part integrity.
Engineers often mistake a drive motor's maximum speed for the machine's true processing capacity. This assumption leads to severe operational failures. True throughput relies heavily on the physical dimensions of the internal helix. You must match these dimensions precisely to your largest manufactured components.
You must calculate the maximum part size and your required batch volume first. The spiral pitch represents the distance between each flight of the internal auger. This space must comfortably accommodate your largest part. If the pitch is too tight, parts will bridge across the flights. Bridging causes immediate mechanical jams. These jams force operators to halt production and manually clear the heavy drum.

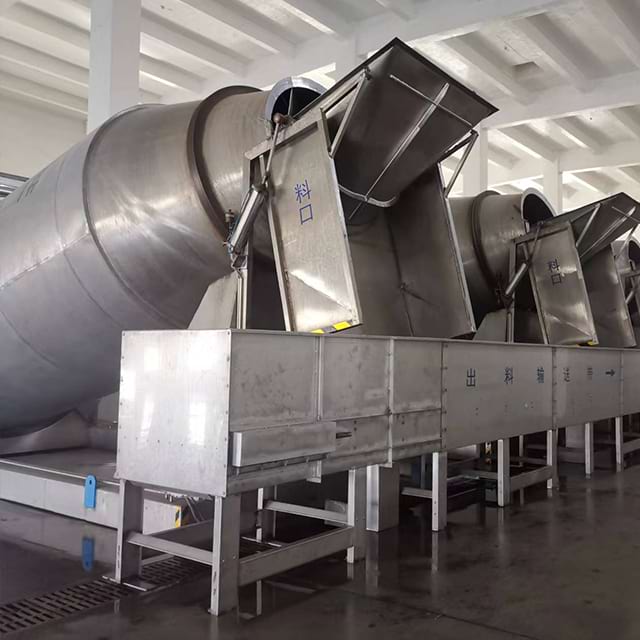

To properly size a horizontal spiral drum washer, consider both the diagonal length and the bulk density of your components. A larger drum diameter increases the overall volume per linear foot. However, it also requires substantially more cleaning fluid and heating energy.
You must evaluate the critical trade-off between rotation speed and dwell time. A faster rotation undoubtedly increases the volume of parts exiting the machine. However, it severely decreases the time those parts spend inside the wash zone. Cleaning requires sufficient dwell time. Chemical surfactants need time to break down industrial greases. Mechanical spray action needs time to flush away stubborn metal chips.
Determine whether the machine can seamlessly accept continuous feed from upstream equipment. Manual loading defeats the entire purpose of a continuous-feed system. The washer should integrate directly with upstream conveyors or vibratory hoppers. Parts should drop smoothly into the entry chute without requiring human intervention. Ensure the entry chute features a gentle slide angle. This prevents heavy parts from striking the drum interior violently upon entry.
High-volume processing cannot come at the expense of part quality. Aggressive tumbling easily damages sensitive components. You must scrutinize the internal drum construction to ensure safe handling.
Many components feature sensitive threads, polished surfaces, or precise tolerances. For these items, assess the internal drum lining carefully. Bare carbon steel causes severe metal-on-metal impact damage. We recommend specifying polymer coatings for the drum interior. Alternatively, smooth-tumbled stainless steel minimizes friction and abrasion. The internal flights should feature rounded edges rather than sharp, welded corners.
Best Practices: Always specify a drop-height test during the vendor evaluation. Watch how parts tumble at your target rotation speed.
Common Mistakes: Ignoring the exit chute design. Parts often survive the washing process only to suffer damage when dropping into the final collection bin.
Verify the vendor’s ability to handle cup-shaped or complex geometries. Flat or cupped parts tend to stick together. This phenomenon is called nesting. Nesting traps air inside the parts. It completely blocks cleaning fluids from reaching internal surfaces. It also causes parts to carry dirty wash water into the clean rinse zones.
Look for integrated spray manifolds located directly inside the drum axis. These manifolds direct high-pressure fluid directly onto the tumbling parts. The mechanical force of the spray helps separate nested components. Vendors may also add internal tumbling flights. These small ridges lift and drop the parts, forcing them to separate.
A single wash stage rarely meets modern manufacturing cleanliness standards. You must outline the necessity of a multi-stage configuration. A proper system includes dedicated washing, rinsing, and forced-air drying zones.
Evaluate the physical transition zones between these stages. The helix must feature perforated drainage sections before moving parts to the next chemistry. This prevents cross-contamination. If wash water drags into the rinse tank, your rinse water rapidly becomes a secondary wash tank. Finally, the drying stage must utilize high-velocity heated blowers. Evaporative drying alone is too slow for continuous, high-volume output.
Downtime in a continuous manufacturing line is disastrous. Maintenance requirements often dictate the true value of industrial cleaning equipment. You must prioritize features extending the time between manual cleanouts.
High-volume processing generates rapid sludge and chip buildup. Oil washes off the parts and emulsifies in the tank. Metal shavings accumulate at the bottom of the reservoir. Manual tank cleanouts destroy production schedules. Operators must drain the hot tanks, shovel out toxic sludge, refill the water, and wait hours for the system to reheat.
You must prioritize equipment that handles its own waste. We strongly recommend selecting a system equipped with an automated CIP system (Clean-In-Place). This technology actively manages fluid quality while the machine runs. It continuously filters particulates and removes tramp oils. This intervention drastically extends bath life. It keeps the chemical concentration stable and reduces operator intervention to mere minutes per week.
Not all filtration systems offer the same level of automation. When reviewing proposals, look for these specific components:
Even the most capable machine becomes a liability if it disrupts your facility infrastructure. Integration requires careful spatial and elemental planning.
Evaluate the machine's linear footprint meticulously. Continuous-feed models are inherently long. Ensure the required floor space exists on your layout. More importantly, account for maintenance access. Operators need space to open access panels, service pumps, and replace filters. Chemical dosing stations must fit safely within existing facility aisles. Do not place the machine tight against a wall if panels open on both sides.
Scrutinize the machine's energy requirements and water consumption. Industrial washers consume significant utilities. Heating elements require massive electrical amperage to maintain bath temperatures. High-velocity blowers draw heavy current. Review your facility's power drops to ensure adequate capacity.
Water consumption is equally critical. A well-designed spiral drum washer cascades rinse water backward into the wash tank. This intelligent routing minimizes fresh water intake. It lowers both your water bill and your wastewater treatment burden.
| Utility Type | Primary Consumers | Efficiency Strategies |
|---|---|---|
| Electricity | Heating elements, drive motors, blowers | Insulated tanks, VFDs, air knife optimization |
| Water | Rinse stages, wash tank makeup | Reverse cascade routing, closed-loop filtration |
| Chemicals | Wash baths, rust inhibitors | Automated dosing, precise concentration sensors |
Assess the vapor exhaust systems thoroughly. Hot wash baths generate significant steam and chemical vapors. You cannot vent these directly onto the factory floor. They pose respiratory hazards and cause rapid rusting of nearby machinery. Ensure the unit features integrated mist eliminators. Furthermore, verify the equipment complies with local environmental regulations regarding atmospheric emissions and wastewater discharge limits.
Purchasing industrial cleaning equipment is a high-stakes partnership. Do not rely solely on glossy brochures. You must demand empirical evidence of performance before signing any purchase orders.
Discard vendors offering generic, "one-size-fits-all" promises. A credible supplier understands that every manufacturing process is unique. They will require a physical part sample and a detailed contamination profile before quoting. If a vendor provides a quote without asking about your specific cutting fluids or part geometries, walk away immediately.
Mandate a documented test wash. Send your specific, heavily soiled components to the vendor's laboratory. Ask them to replicate your desired throughput speed. Require comprehensive lab reports post-wash. These reports must verify particulate weights and residual oil counts.
| Evaluation Metric | Acceptable Standard | Red Flag Warning |
|---|---|---|
| Visual Inspection | Zero visible oil, chips, or water spots | Streaks on flat surfaces, debris in threads |
| Particulate Count | Meets ISO cleanliness code requirements | Vendor refuses to provide gravimetric testing |
| Dyne Testing (Surface Energy) | High surface tension (water sheets smoothly) | Water beads up rapidly (indicates oil remains) |
Evaluate the Service Level Agreement (SLA). Even the best machines eventually require maintenance. Assess the immediate availability of critical replacement parts. Drive wheels, trunnions, and spray nozzles must be stocked domestically. Ask about remote diagnostic capabilities. Modern PLC controls allow factory technicians to troubleshoot sensor faults remotely. This capability saves days of waiting for a field service engineer to arrive.
Selecting a high-capacity cleaning system requires balancing mechanical throughput with cleaning efficacy and ongoing maintenance realities. You must match the physical drum pitch to your largest parts. You must also balance rotation speed against the chemical dwell time necessary to dissolve stubborn soils.
Base your final decision on verifiable test wash data. Prioritize the robustness of automated maintenance features like fluid filtration and sludge removal. Evaluate documented utility cost calculations rather than just the initial sticker price. Smart engineering choices here prevent catastrophic bottlenecks downstream.
Your next step is clear. Audit your current part volume, maximum dimensions, and specific contamination levels. Compile this data and initiate request-for-proposals (RFPs). Require custom capacity calculations and mandatory test washes from your short-listed vendors.
A: It depends entirely on the drum diameter and the pitch of the internal helix. Parts must fit comfortably within a single pitch section. If they exceed this space, they will bridge the gap and prevent jamming. Always measure the diagonal length of your largest part.
A: Spiral drums are designed specifically for continuous, inline processing. They operate on a first-in, first-out basis. Rotary baskets are typically used for batch processing. You must load and unload baskets manually, which slows down high-volume production lines.
A: While basic external filtration can be added later, true CIP is highly complex to retrofit. Automated tank purging and internal spray bar flushing require specialized plumbing and PLC integration. You should engineer these features into the initial machine build.
A: Vendors mitigate this by optimizing the drum rotation speed and adding internal tumbling flights. They also utilize high-impact directed spray nozzles. This combination of mechanical lifting and fluid pressure effectively separates nested parts during the wash cycle.
