Selecting a sanitary pump goes far beyond calculating simple flow rates. You make a critical decision impacting regulatory compliance and overall product integrity. The wrong equipment choice introduces severe operational risks. Bacterial harborage, batch contamination, and product degradation from shear damage can ruin entire production runs. Food and pharmaceutical processing facilities demand flawless equipment. Your systems must meet stringent hygienic standards. Simultaneously, they must maintain peak operational efficiency and ensure minimal downtime during continuous processing.
Navigating these rigorous requirements demands careful engineering analysis. This guide breaks down the essential performance criteria and fluid dynamics necessary to evaluate your options. We explore the mechanical variables, fluid behaviors, and structural integrations you must understand. By mastering these principles, you can confidently specify the right hygienic pumping solution for your specific facility.
You cannot compromise on hygiene when handling consumable products. We must first establish exactly what makes a pump truly hygienic. The term "sanitary" does not simply mean visually clean. It refers to specific, measurable design criteria engineered to prevent microbial growth.
A genuine hygienic design eliminates all internal crevices. The equipment must possess self-draining capabilities. When the system shuts down, gravity should remove all residual fluids. You must also evaluate surface roughness, measured as Ra (Roughness Average). Standard food-grade equipment typically requires a 32 µin (0.8 µm) Ra finish. Pharmaceutical applications often demand 15 µin (0.4 µm) Ra or better. Manufacturers achieve these ultra-smooth surfaces through meticulous mechanical polishing and subsequent electropolishing.
Industry standards provide the structural foundation for safe processing. You must verify equipment certifications before installation.
Modern facilities rely on Clean-in-Place (CIP) and Sterilize-in-Place (SIP) automation. Evaluate the equipment's compatibility with these intense routines. A true hygienic model must withstand harsh caustic wash cycles. It must also survive extreme SIP steam temperatures without requiring manual disassembly. Equipment failing this standard forces operators to perform daily tear-downs. This manual intervention introduces human error and massive productivity delays.
Fluid properties ultimately dictate your mechanical selection. You must thoroughly audit how your product behaves under pressure and varying temperatures. Ignoring fluid dynamics often leads to catastrophic equipment failure.
You must map fluid viscosity directly to mechanical capabilities. Viscosity measures a fluid's resistance to flow. Water behaves predictably, but food and pharmaceutical fluids rarely do. Temperature fluctuations drastically alter fluid thickness. Honey flows easily when heated but turns into a thick paste when cold. Some fluids, like ketchup, are thixotropic. They become thinner when agitated. You must calculate the highest possible viscosity your system will encounter. Sizing equipment based purely on room-temperature data often causes motor stalling during cold startups.
Product degradation remains a constant threat during processing. Many food and pharmaceutical fluids are highly shear-sensitive. High-speed impellers can instantly ruin them. You must protect these delicate structures.
Cavitation destroys internal metal components. It happens when local pressure drops below the fluid's vapor pressure, causing liquid to boil instantly into vapor bubbles. As these bubbles move into high-pressure zones, they collapse violently. You must assess the Net Positive Suction Head Available (NPSHa) in your system. Compare it against the Net Positive Suction Head Required (NPSHr) specified by the manufacturer. If NPSHr exceeds NPSHa, cavitation occurs. This phenomenon damages rotors and contaminates pure batches with microscopic metal flakes.
No single technology handles every fluid type. You must match the mechanical operating principle to your specific product parameters. The industry divides these technologies into two primary categories: centrifugal and positive displacement.

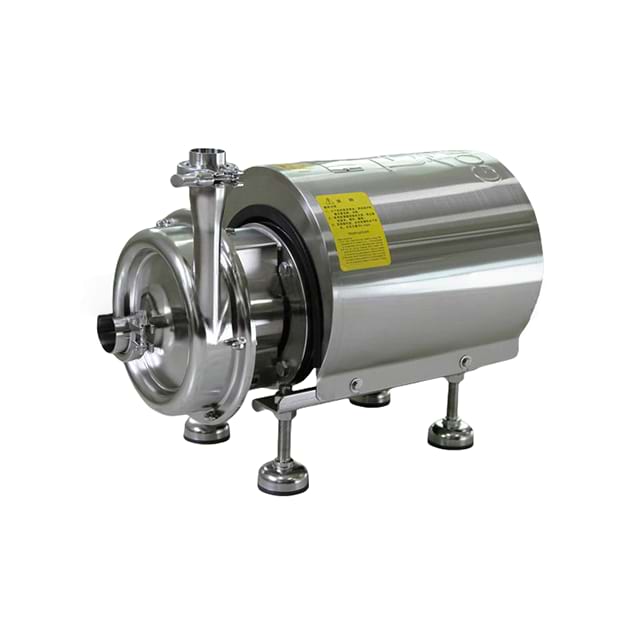

These units utilize a spinning impeller to impart kinetic energy into the fluid. They represent the most common and straightforward design in processing facilities.
PD models trap a fixed volume of fluid and push it through the discharge port. They operate at lower speeds and handle complex fluid dynamics effortlessly.
These remain the industry standard for viscous food processing. Two counter-rotating lobes mesh together without touching. They easily transport thick syrups, heavy pastes, and dense creams. Because the internal cavities are large, they offer excellent particulate handling. They maintain a very low shear profile, protecting delicate suspensions.
Engineers consider twin-screw designs highly versatile. They feature two intermeshing screws that push fluid linearly. Their unique advantage lies in dual-duty performance. They operate at low speeds to gently move highly viscous products. Then, they can ramp up to extremely high speeds to pump low-viscosity CIP fluids. This eliminates the need for a secondary CIP return pump in your layout.
These specialized units solve distinct problems. AODD units run on compressed air. They easily handle high-solid content and self-prime exceptionally well. Peristaltic designs use rotating rollers to squeeze a flexible hose. The fluid never touches moving metal parts. They are perfect for extremely shear-sensitive pharmaceutical gels. However, both designs inherently produce a pulsed flow, which may interfere with downstream flowmeters.
| Technology Type | Ideal Viscosity Range | Shear Level | CIP Compatibility | Particulate Handling |
|---|---|---|---|---|
| Centrifugal | Low (Water-like) | High | Excellent | Poor |
| Rotary Lobe (PD) | Medium to High | Low | Good (Requires bypass) | Excellent |
| Twin Screw (PD) | Low to Extremely High | Very Low | Excellent (Dual-duty) | Good |
| Peristaltic (PD) | Medium to High | Extremely Low | Fair (Hose flushing) | Good |

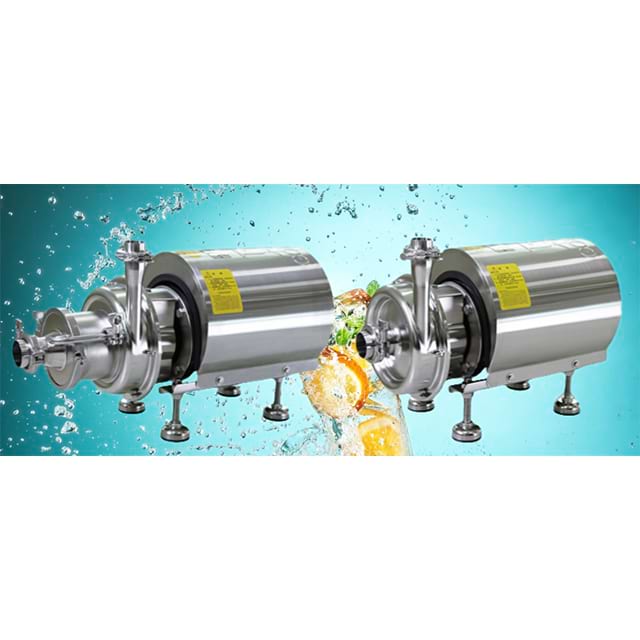

A flawless mechanical unit becomes a severe liability if installed incorrectly. System integration dictates long-term hygiene and operational success. You must engineer the connections seamlessly.
You must actively avoid stagnant zones. A dead leg occurs when fluid gets trapped in a section of piping that does not experience continuous flow. These zones breed dangerous bacteria. Dead legs frequently occur at the junction between the main casing and the connecting sanitary pipe. Standard engineering practice dictates that any branch length must not exceed twice the pipe's diameter (the 2D rule). You must position all connections to ensure turbulent flow reaches every internal surface during cleaning cycles.
Your facility's existing infrastructure typically dictates the connection standard. You must choose the right fittings to maintain system integrity under pressure.
Improper installation introduces severe implementation risks. Many contractors force misaligned piping into position and bolt it tightly to the inlet ports. This transfers massive mechanical stress directly to the casing. The metal distorts imperceptibly. This distortion misaligns internal rotating components. Consequently, mechanical seals fail prematurely. Bearings overheat. In severe cases, rotors rub against the casing walls, shedding microscopic metal particulates directly into your product stream. You must always support adjacent piping independently. Connections should slide together effortlessly before you tighten the clamps.
Evaluating long-term viability requires looking past initial capabilities. You must analyze the ongoing maintenance burden and operational hurdles your facility will face. Equipment requiring constant intervention drains resources and severely impacts processing schedules.
Focus deeply on component durability. Mechanical seals remain the primary failure point in most fluid handling systems. Abrasive fluids destroy standard carbon faces rapidly. You must evaluate the operational lifespan of stators, rotors, and elastomers under your specific processing conditions. Equipment designed with front-loading seals allows technicians to execute replacements in minutes. In contrast, older designs force operators to remove the entire unit from the production line, causing massive delays.
Production stops whenever equipment requires cleaning. You must contrast the labor hours demanded by different cleaning methodologies. Manual cleaning (strip-to-clean) requires highly trained personnel to disassemble the fluid head, scrub individual parts, and reassemble them meticulously. This introduces contamination risks through human error. Fully automated CIP-capable units eliminate this manual labor. They allow operators to initiate chemical wash cycles through centralized control panels, returning the line to production in a fraction of the time.
Power consumption drives significant operational wear. Engineers often attempt to size equipment to handle worst-case viscosity scenarios. While safe, this oversizing causes continuous energy waste during standard operations. A motor running constantly below its optimal efficiency curve generates excessive heat. This degrades internal wiring and stresses bearings. You must select models equipped with variable frequency drives (VFDs) to match energy consumption precisely to real-time process demands.
Avoid chaotic purchasing decisions by following a strict selection sequence. Use this logical pathway to narrow down your options:
Specifying the correct equipment requires balancing rigorous hygienic standards with robust mechanical efficiency. You cannot treat fluid handling systems as generic commodities. They are precision instruments that safeguard your product's purity and your facility's compliance standing. Relying on basic flow charts while ignoring viscosity dynamics and shear sensitivity leads to rapid component failure and degraded product quality.
We strongly advise against off-the-shelf purchasing without a comprehensive fluid property audit. Assess your internal pipe network, evaluate your CIP capabilities, and determine exactly how the fluid behaves under varying temperatures. Partner with a dedicated process engineer to perform a thorough technical sizing evaluation. Taking these calculated steps ensures you install a highly reliable, hygienic system tailored explicitly to your operational demands.
A: The primary difference lies in hygienic design. Hygienic models feature specific surface finishes (typically 32 µin Ra or better), self-draining angles, and zero internal dead zones. They utilize FDA-approved elastomers and are built to withstand high-temperature Clean-in-Place (CIP) protocols without trapping bacteria, unlike standard industrial models.
A: Generally, no. As fluid viscosity increases, a centrifugal impeller loses its ability to transfer kinetic energy efficiently. Efficiency drops drastically, energy consumption spikes, and shear forces increase. For thick, viscous products, you must use a positive displacement (PD) alternative like a rotary lobe or twin-screw model.
A: Food and beverage applications typically require a surface finish of 32 µin (0.8 µm) Ra. Pharmaceutical processing demands much stricter smoothness, often requiring finishes down to 15 µin (0.4 µm) Ra or lower. Manufacturers achieve these finishes through extensive mechanical polishing and specialized electropolishing techniques.
A: You must guarantee proper vertical or specifically angled mounting to ensure total self-draining when powered down. Maintain turbulent flow velocities (usually over 1.5 m/s) during cleaning cycles. Additionally, utilize flawless hygienic pipe connections that create zero internal crevices or dead legs.
