Vertical vs. Horizontal Storage Tanks: Which Design Fits Your Process?

Choosing between a vertical and horizontal storage tank is not just a matter of visual preference. It is not simply about available floor space. It represents a foundational engineering decision. This choice heavily impacts fluid dynamics. It affects facility safety. It also drives long-term maintenance workflows. Material state and fluid viscosity strongly dictate the correct orientation. Regulatory standards and strict site constraints also play critical roles. Choosing incorrectly can lead to pump failure or structural fatigue.

This article provides a strictly technical and operational framework. It helps you evaluate which orientation fits your specific industrial, chemical, or commercial applications. You will learn the physics behind fluid storage. We explore how static head pressure changes. We also examine structural support requirements. By understanding these variables, you can confidently match the right orientation to your process requirements.

Key Takeaways

• Space vs. Volume: Vertical tanks maximize volume per square foot of real estate, while horizontal tanks solve strict overhead height restrictions.
• Cost-per-Gallon: Vertical orientations generally offer a lower cost-per-gallon at high volumes due to structural efficiency, but horizontal tanks may offset this through cheaper transportation and easier indoor installation.
• Engineering Physics: Vertical setups benefit from gravity-assisted pressure (improving NPSH for pumps), whereas horizontal setups distribute weight differently, requiring specific saddle supports.
• Application Fit: The right choice hinges on industry-specific variables like Clean-in-Place (CIP) requirements, agitation needs, and seismic/wind load exposure.

The Baseline: When Orientation Impacts Operations

Tank orientation directly dictates how a facility operates daily. An incorrect choice introduces severe operational risks. It leads to inefficient pumping. It can cause structural fatigue over time. It may even result in costly compliance failures. Engineers must view orientation as a core component of fluid management. It is never just an afterthought.

The physics of storage change dramatically based on how a tank sits. Orientation alters static head pressure. It changes how fluids distribute across the internal surface area. It also shifts the mechanical stress applied to the vessel walls. Upright geometries push pressure downward. Flat geometries spread weight across specific support zones.

A successful deployment relies on clear success criteria. You must balance maximum capacity requirements against footprint constraints. You also need to maintain structural safety under environmental loads. Finally, operational accessibility remains crucial. Maintenance teams require safe access for routine inspections and cleaning.

Vertical Storage Tank Evaluation: Profile & Capabilities

The cylindrical, upright design offers a major engineering advantage. It utilizes uniform hydrostatic pressure. Pressure increases linearly from the top to the bottom. This dynamic allows manufacturers to use thinner walls near the top of the vessel. It requires thicker materials only at the base. This structural efficiency significantly reduces overall material costs for a vertical storage tank.

Key Strengths

• Footprint Efficiency: They deliver the highest volume-to-footprint ratio. You can store massive capacities on a small patch of real estate.
• Fluid Dynamics: They provide superior gravity feed. This optimizes the Net Positive Suction Head (NPSH) for bottom-mounted pumps. It prevents pump cavitation.
• Cost-Effectiveness: They generally yield a lower cost-per-gallon. This is especially true for large-scale storage projects.

Implementation Risks

• Environmental Vulnerability: Tall profiles act like sails. They face intense wind shear. They also experience amplified seismic loads. You will need robust foundation engineering to prevent tipping.
• Logistical Hurdles: Indoor installation is notoriously difficult. Tall vessels rarely clear standard doorways. They frequently violate ceiling height limits inside existing facilities.

These units excel in specific environments. High-volume chemical manufacturing relies on them heavily. Large-scale processing plants prefer them. They also dominate outdoor agricultural and municipal water storage applications. They are the standard choice when vertical space is unlimited.

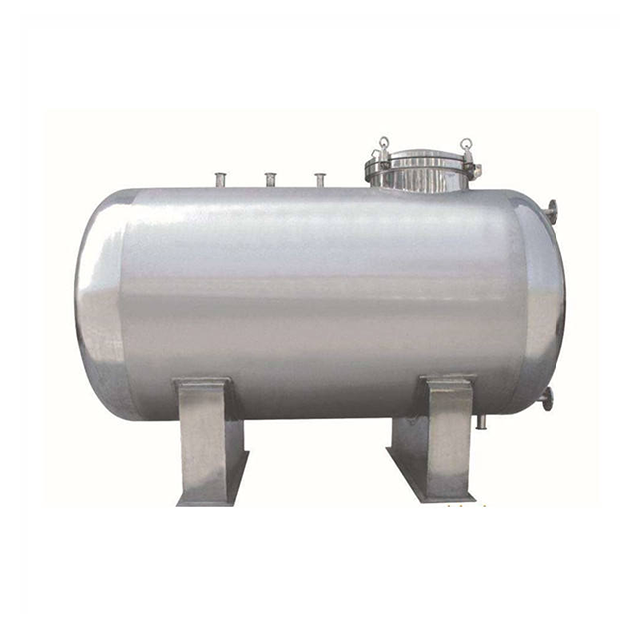

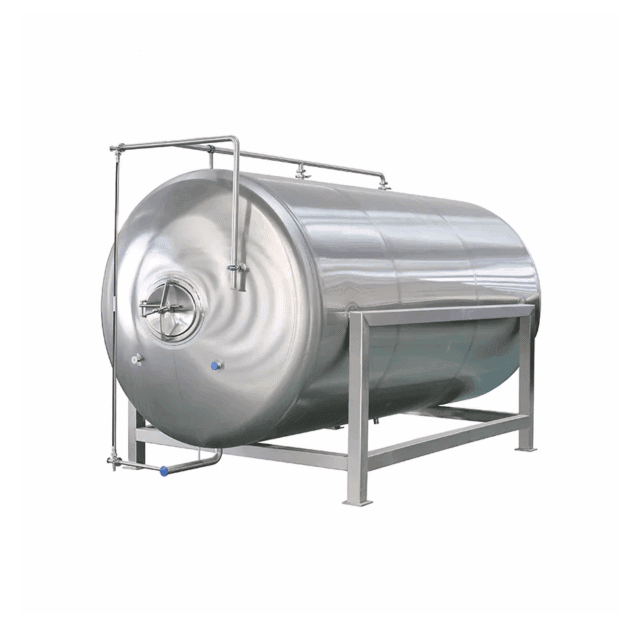

Horizontal Storage Tank Evaluation: Profile & Capabilities

A flat, resting profile provides a completely different set of engineering advantages. It features a very low center of gravity. It also provides a high surface-area-to-volume ratio. This geometry proves highly beneficial for specific thermal requirements. It maximizes the contact area for heating or cooling jackets. It also supports specialized agitation equipment perfectly. A horizontal storage tank solves unique spatial challenges.

Key Strengths

• Spatial Flexibility: They easily fit under strict height limits. You can install them inside basements. They slide perfectly into tight, modular facility designs.
• Transportability: Moving them is significantly easier. You can ship and relocate them on standard flatbed trailers. You rarely need specialized oversized-load permits.
• Temperature Control: They are often superior for thermal regulation. The expanded surface area improves the efficiency of cooling or heating jackets.

Implementation Risks

• Real Estate Costs: They demand significantly greater floor space. This drastically increases the real estate burden inside a crowded plant.
• Structural Stress: They are prone to stress at the support saddles. Engineers must perform specific calculations to prevent the shell from bowing. This often requires thicker tank walls.

Certain scenarios practically demand this orientation. Heating oil storage relies on them for basement access. Transport logistics and fuel hauling depend on flat profiles. Dairy and beverage processing also use them. They are ideal when fluids require aggressive, continuous agitation to prevent stratification.

Evaluation Matrix: Feature-to-Outcome Comparison

Cost-per-Gallon Analysis

You must compare upfront fabrication costs against long-term real estate values. Upright vessels generally cost less to fabricate per gallon at high volumes. Their efficient use of metal keeps raw material prices down. However, they demand heavy, specialized foundations. A thick concrete pad is mandatory to handle point-loading and wind shear.

Flat vessels cost more to fabricate. They require thicker walls to bridge the gap between saddle supports. Yet, they save money on logistics. Indoor installation requires less roof modification. Their foundations are often simpler, utilizing dual reinforced footings rather than a massive continuous pad. You must calculate these variables to find the true cost-per-gallon.

Maintenance, CIP, and Sanitation

Maintenance workflows differ drastically between orientations. Sediment accumulation behaves differently. Upright geometries, especially cone-bottom designs, allow for effortless sediment draining. Gravity pulls heavy particulates directly to the central bottom valve. Operators can purge solids quickly.

Clean-in-Place (CIP) integration poses distinct challenges. Flat geometries create potential "blind spots" during automated washing. Spray balls must reach distant ends of the cylinder. Upright cylinders wash down more evenly. Gravity pulls the cleaning solution cleanly down the sidewalls. You must watch out for pooling in flat vessels if they lack a proper pitch.

Structural & Environmental Compliance

Compliance hinges on distinct environmental load calculations. Upright vessels require rigorous wind and seismic load analysis. Organizations like API and AWWA provide strict standards for anchoring them. High winds create massive overturning moments. Engineers must design specialized anchor bolts to keep the vessel secure.

Flat vessels face different compliance hurdles. They pose a wider footprint for potential leaks. Secondary containment requirements often demand larger spill berms. Managing leak risk means protecting a larger surface area on the ground. You must align your choice with local fire codes and EPA containment regulations.

Storage Tank Design Comparison Summary

Industry-Specific Considerations

Different industries face unique storage challenges. Broad guidelines only go so far. You must view these storage tanks through the lens of your specific sector. Regulatory frameworks and fluid properties change everything.

In chemical manufacturing, pressure distribution is paramount. Corrosive fluids demand robust anti-corrosion linings. Linings experience different wear patterns based on orientation. Upright designs place heavy stress on the bottom lining. Flat designs distribute the chemical weight over a wider area. You must ensure the lining can handle the specific hydrostatic pressure profile of your chosen vessel.

Dairy and food processing prioritize sanitation. Milk storage relies heavily on strict hygiene standards. Cooling efficiency is vital to prevent bacterial growth. Flat vessels often provide better agitator mounting stability for continuous mixing. However, upright vessels are easier to clean. Facilities must strictly adhere to 3-A Sanitary Standards when specifying either orientation.

Commercial and residential fuel applications face distinct constraints. Heating oil storage must navigate difficult realities. Basement ingress is often the deciding factor. Flat vessels slide easily down narrow stairs. Fire code height restrictions also limit upright profiles indoors. Leak containment is critical. A flat geometry allows for low-profile, double-wall containment systems that fit perfectly in confined utility rooms.

Shortlisting Logic & Next Steps for Procurement

Transitioning from theory to procurement requires a systematic approach. Do not guess on dimensions or fluid dynamics. Follow a structured shortlisting logic to ensure operational success. Use this step-by-step framework to finalize your decision.

1. Conduct a Site Audit: Measure your exact footprint availability. Record ceiling heights and doorway clearances accurately. Evaluate the foundation's load-bearing capacity. Determine if the existing concrete can handle concentrated point loads.
2. Map Fluid Requirements: Document the fluid's specific gravity and viscosity. Calculate the required pump NPSH. Outline your specific agitation and mixing needs.
3. Define Logistics: Calculate the cost of freight. Estimate the rigging expenses for both orientations. Factor in any necessary facility modifications, like removing roof panels or widening doors.
4. Execute Vendor Evaluation: Ask manufacturers highly specific engineering questions. Request documentation. Ask, "Do you provide finite element analysis (FEA) for saddle supports or wind loads?" Verify their compliance with API or AWWA standards.

Take action before finalizing your facility layout. Contact your engineering or sales team immediately. Request a site-specific capacity and orientation assessment. Professional insight prevents costly installation errors. Ensure your chosen vessel aligns perfectly with both your fluid physics and your facility constraints.

Conclusion

• The ideal storage design is dictated strictly by the intersection of fluid physics, site constraints, and operational ROI.
• Vertical vessels dominate when you need high-volume efficiency and gravity-fed pump optimization.
• Horizontal vessels provide unmatched logistical flexibility, easier indoor transport, and superior thermal regulation.
• Always verify foundation requirements. Upright designs need defense against wind and seismic overturning, while flat designs require robust saddle support.
• Prioritize maintenance access. Ensure your chosen geometry allows for effective CIP integration and routine inspections.

FAQ

Q: Are vertical storage tanks always cheaper than horizontal tanks?

A: Not always. Upright vessels usually offer a lower cost-per-gallon at high capacities due to material efficiency. However, flat vessels can ultimately cost less when you factor in logistics. They often bypass the need for oversized load shipping permits. They also eliminate the costs associated with roof removals for indoor installation.

Q: How does tank orientation affect pump performance?

A: Orientation directly impacts Net Positive Suction Head (NPSH). Upright configurations create higher static head pressure at the bottom of the vessel. This gravity-fed pressure pushes fluid into bottom-suction pumps efficiently. It significantly reduces the risk of pump cavitation compared to flat geometries.

Q: Which tank orientation is better for mixing and agitation?

A: It depends on the fluid and the process. Flat vessels are often better for preventing stratification in certain liquids, offering a wider surface area for blending. Upright vessels are the industry standard for top-mounted, high-shear mixers. They provide an excellent vortex profile for rapid integration.

Q: What are the foundation requirements for horizontal vs. vertical tanks?

A: Upright configurations require thick, flat concrete pads. These pads must withstand heavy point-loading and resist wind/seismic overturning moments. Flat configurations distribute weight differently. They typically require specialized, reinforced concrete footings placed specifically under the steel saddle supports to prevent bowing.
