A physical vessel holds zero value without its corresponding documentation and verifiable data integrity. Delayed equipment validation severely impacts manufacturing timelines and regulatory standing in biopharma production. Procuring a pharmaceutical storage tank requires navigating complex regulatory expectations set by the FDA, EMA, and cGMP guidelines. Missing material certificates, failed weld inspections, or non-compliant software controls can halt production lines for months. Facility managers and validation engineers face immense pressure to ensure every product-contact surface meets rigorous hygienic standards. You cannot afford to discover a dead leg or a failing spray ball during site installation. We must adopt a structured approach to evaluate tank manufacturers. This evaluation relies heavily on their mastery of hygienic design, Factory Acceptance Testing (FAT), Site Acceptance Testing (SAT), and comprehensive turnover documentation. Aligning procurement strategies with strict validation requirements ensures seamless facility integration and audit readiness.
Traceability is Non-Negotiable: Complete stainless steel tank material traceability, down to the heat number, weld log, and elastomer certifications, is the baseline for cGMP compliance.
Hygienic Design Dictates Cleanability: Adherence to ASME BPE standards, specifically regarding dead legs and nozzle orientations, is critical for passing validation.
FAT Mitigates Site Risk: Rigorous Factory Acceptance Testing prevents costly on-site modifications by verifying spray coverage, pressure ratings, agitation performance, and dimensional tolerances before shipment.
Integration of SAT and IQ/OQ: Seamless transition from SAT to Installation and Operational Qualification (IQ/OQ) accelerates time-to-market and reduces redundant testing.
The Turnover Package (TOP) Equals the Asset: The documentation package holds equal operational value to the physical tank; vendor evaluation must heavily weight QA/QC maturity and GAMP 5 compliance for automated systems.
A pharmaceutical vessel operates as a highly regulated system. It is not just a simple container holding liquid. Every valve, gasket, and weld presents a potential risk for cross-contamination or bioburden buildup. Regulatory bodies mandate strict oversight over these systems. Failing an audit due to improper vessel design leads to immediate batch rejection and severe compliance penalties. You must treat the validation process as the core driver of your procurement strategy.
Baseline requirements dictate strict control over vessel geometry, material selection, and surface finishes. Industry-standard evaluation lenses provide the framework for these requirements. The ASME Bioprocessing Equipment (ASME BPE) standard serves as the primary guideline for designing and building these systems. ISPE Baseline Guides further outline the expectations for commissioning and qualification. Achieving GMP tank qualification means proving that the equipment consistently operates within these defined parameters without compromising product quality. We look for specific design elements that eliminate risk. This includes sanitary fittings, self-draining geometries, and crevice-free interiors.
Stagnant zones harbor bacteria and resist cleaning efforts. The Length to Diameter (L/D) ratio of any branch or nozzle is a critical metric. Validation engineers target an L/D ratio of less than 2:1 to prevent these dead legs. You must evaluate nozzle designs, block valves, and bottom-outlet configurations for optimal drainability. A perfectly flat bottom will not drain completely. Vessels require a specific slope-to-drain, usually a minimum of 1/4 inch per foot. This ensures gravity removes all residual liquids during the Clean-in-Place (CIP) process. We specify flush-mounted diaphragm valves over standard ball valves to eliminate internal cavities where product can accumulate.
A successful procurement process culminates in an audit-ready asset. We define this success through specific, measurable outcomes:
Zero deviations recorded during Installation Qualification (IQ) and Operational Qualification (OQ) execution.
Fully traceable product-contact surfaces with unbroken documentation chains from the foundry to the facility.
Verifiable proof of cleanability through documented riboflavin testing and subsequent swab tests.
Seamless automation integration with all data trails meeting 21 CFR Part 11 requirements for electronic records.
Complete absence of rouge or surface degradation after initial passivation and sterilization cycles.
Supply chain transparency directly impacts your regulatory standing. You must assess a vendor's material control processes rigorously. A single undocumented fitting compromises the entire vessel. Maintaining strict stainless steel tank material traceability guarantees that the metals and polymers interacting with your drug product will not leach harmful substances or degrade under harsh cleaning regimens.
Every piece of product-contact stainless steel requires strict documentation. You need 3.1 certification (EN 10204) for materials like 316L or AL-6XN. Standard 304 stainless steel is unacceptable for product-contact surfaces due to its lower corrosion resistance. We mandate 316L stainless steel as the minimum standard, utilizing its lower carbon content to prevent carbide precipitation during welding. For highly corrosive buffer solutions, we upgrade to super austenitic alloys like AL-6XN or Hastelloy. The MTRs must explicitly state the alloy composition, yield strength, and tensile strength.
Manufacturers assign a unique heat number to each batch of steel during smelting. Fabricators must map these heat numbers to the physical vessel components. This mapping extends to the as-built drawings. It creates an unbroken chain of custody from the steel mill to your cleanroom floor. Inspectors will physically check the heat numbers laser-etched onto the vessel nozzles against the provided MTRs during the FAT.
Microbial adhesion thrives on rough surfaces. Standards for mechanical polishing and electropolishing dictate the acceptable smoothness of the tank interior. You must secure profilometer reports verifying the Roughness average (Ra) values. A typical pharmaceutical requirement demands an Ra of 15 micro-inches (0.38 micrometers) or better for product-contact areas. Technicians take these readings across multiple quadrants of the vessel to ensure uniformity.
Fabrication processes strip the natural protective layer from stainless steel. Passivation restores this passive chromium oxide layer. You must obtain passivation certificates detailing compliance with standards like ASTM A967. These certificates prove the vessel can withstand corrosive CIP chemicals and high-temperature sterilization without rusting. We often require a ferroxyl test post-passivation to confirm the complete removal of free iron from the surface.
Non-metallic components demand the same level of scrutiny as the steel. O-rings, gaskets, and diaphragms routinely contact the product. You must require documentation proving USP Class VI compliance. Furthermore, these materials must meet FDA 21 CFR 177.2600 standards for rubber articles intended for repeated use. Ensure all elastomers carry Animal-Derived Ingredient Free (ADIF) certifications. This eliminates the risk of transmitting spongiform encephalopathies (TSE/BSE). We track the cure dates and batch numbers for every polymer to ensure they have not exceeded their shelf life before installation.
The FAT represents the most critical milestone before the equipment leaves the manufacturer. It verifies the design intent against the physical build. Discovering a dimensional error or a failing mechanical seal on your facility floor causes catastrophic project delays. Rigorous pharmaceutical tank validation begins here. It mitigates risks while the vendor still has full access to their fabrication tools, welding equipment, and engineering teams.
Standard visual and dimensional checks form the baseline of the FAT. Inspectors verify the overall footprint, nozzle locations, and connection types against the approved General Arrangement (GA) drawings. Component verification ensures that the installed valves and transmitters match the Bill of Materials (BOM). You must physically verify the slope-to-drain requirements. Using a calibrated digital level, confirm the 1/4 inch per foot slope to guarantee complete drainability. We also check the orientation of all eccentric reducers to ensure they are installed flat-on-bottom.

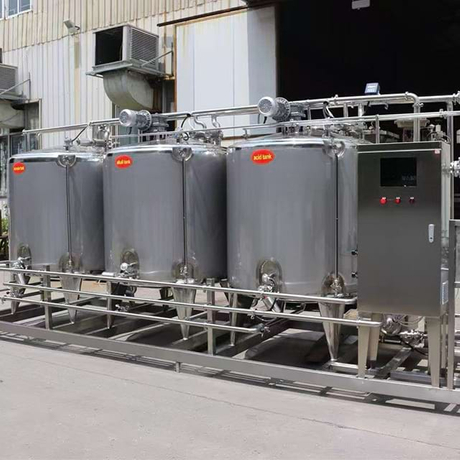

During the drainability test, we measure the exact volume of residual water left in the vessel after a complete drain cycle. The ASME BPE standard provides specific acceptance criteria for this residual volume based on the vessel size. We also conduct a spray ball rotation verification. Technicians install flow meters on the CIP supply lines to confirm the spray balls receive the exact flow rate and pressure required to maintain their optimal rotational speed.
Validating CIP efficacy requires empirical evidence. Riboflavin testing provides this proof. Technicians spray a fluorescent riboflavin solution over all internal surfaces. The spray balls then execute a standard rinse cycle using ambient water. Inspectors use UV lights to detect any remaining fluorescence. You must evaluate spray ball positioning and flow rates to guarantee 100% internal surface coverage. Pay special attention to shadow areas behind agitator shafts, baffles, and dip tubes. Any residual riboflavin indicates a failed test. This requires immediate redesign of the spray assembly or adjustment of the flow rates.
Vessel integrity under pressure ensures safety and sterility. Hydrostatic testing fills the vessel with chloride-free water and applies pressure to detect leaks in the shell or welds. We typically pressurize the vessel to 1.3 times its maximum allowable working pressure (MAWP) and hold it for 60 minutes. Jacket testing verifies the heating and cooling efficiency while checking for internal leaks between the jacket and the main vessel.
Integrated agitators require both dry and wet testing. Technicians check for abnormal vibration, RPM accuracy, and the integrity of the mechanical seals. Wet testing with water simulates the fluid dynamics. It confirms the agitator performs without inducing excessive vortexing, cavitation, or shaft deflection. We monitor the motor amperage draw during these tests to ensure the drive unit is properly sized.
Modern vessels rely heavily on integrated PLCs and HMIs. You must verify these control systems against 21 CFR Part 11 requirements. This includes testing data integrity, user access levels, and electronic audit trails. We simulate sensor failures to ensure the system triggers the correct alarms and interlocks. Document all FAT deviations meticulously. Create comprehensive punch lists for any failures. The vendor must execute Corrective and Preventive Actions (CAPAs) and re-test the affected systems prior to granting shipment release.
Receiving a large vessel into an existing cleanroom presents significant logistical and technical challenges. The SAT verifies that the equipment survived transit and integrates properly with your facility infrastructure. This phase bridges the gap between the standalone equipment and your overarching production process.
You do not need to repeat every FAT protocol on-site, but specific tests are mandatory. Inspect the vessel thoroughly for any shipping damage. Verify sensor calibration post-transit, as vibrations can easily knock sensitive instruments out of alignment. Address the physical integration of the tank with facility utilities. Connect and test the Water for Injection (WFI), clean steam, process gases, and chilled water lines. Ensure all utility connections meet sanitary design standards and do not introduce new dead legs. We perform pressure hold tests on the utility piping to confirm leak-free connections.
Leveling the vessel is a critical SAT activity. Technicians use precision laser levels to ensure the tank sits perfectly plumb on its load cells. An unlevel tank compromises the slope-to-drain geometry and introduces significant errors into the weight-based level measurement systems. We calibrate the load cells using certified test weights, mapping the output signal across the entire operating range to guarantee batching accuracy.
The vessel must communicate flawlessly with the facility's overarching Distributed Control System (DCS) or SCADA network. Verify the communication handshakes between the tank's local control panel and the central system. I/O loop checks are mandatory here. Technicians must simulate signals at the transmitter level and confirm accurate readings for temperature, pressure, and level on the central HMI. A failed loop check can lead to disastrous process deviations during active manufacturing. We map every single data point from the local PLC to the central historian to ensure accurate batch reporting.
A well-executed SAT directly feeds into Installation Qualification (IQ) and Operational Qualification (OQ). You can minimize redundant testing by aligning your SAT protocols with your internal validation master plan. Leverage approved vendor documentation to satisfy IQ requirements. For example, if the FAT and SAT thoroughly documented the agitator RPM verification, you can reference this data in the OQ rather than repeating the physical test. This strategy accelerates your time-to-market while maintaining strict compliance.
Testing Phase | Primary Objective | Key Deliverables | Execution Location |
|---|---|---|---|
FAT | Verify design intent, fabrication quality, and baseline functionality. | Riboflavin reports, hydrostatic logs, dimension checks, material verification. | Manufacturer Facility |
SAT | Verify utility integration, transit survival, and control system handshakes. | I/O loop checks, utility connection verification, load cell calibration. | End-User Facility |
IQ/OQ | Formal regulatory qualification of the asset for production use. | Executed validation protocols, final compliance sign-off, SOP generation. | End-User Facility |
The Turnover Package (TOP) holds equal operational value to the physical tank. Without it, you cannot legally use the equipment to manufacture pharmaceutical products. You must audit a vendor's documentation capabilities just as rigorously as their welding skills. A compliant TOP provides the complete history and pedigree of the asset.
A comprehensive TOP requires specific mandatory inclusions. You must receive final General Arrangement drawings and detailed P&IDs. Material certificates for all product-contact parts are non-negotiable. The package must include complete weld maps linking every joint to a specific welder and inspection report. Passivation reports and cleaning certificates prove the vessel is ready for cleanroom integration. We also require the inclusion of all instrument calibration certificates, traceable to NIST or equivalent national standards.
Automated orbital welding represents the gold standard in pharmaceutical tank fabrication. It provides consistent, repeatable, and smooth welds. However, blind welds and complex geometries still require meticulous inspection. You must demand 100% visual inspection logs. For inaccessible areas, boroscopy videos and reports are mandatory. These reports must confirm the absence of sugaring, lack of fusion, excessive convexity, or any micro-crevices that could harbor bacteria. We evaluate these welds against AWS D18.1 standards for sanitary applications.
If your vessel includes automated components, the documentation burden increases. You need Functional Design Specifications (FDS) and Software Design Specifications (SDS). The vendor must provide GAMP 5 lifecycle documentation. This proves the software was developed, tested, and deployed following strict quality guidelines. It ensures reliable and repeatable automated sequences. We review the source code documentation and the hardware design specifications to ensure long-term maintainability.
Watch for warning signs during vendor evaluation.
Manual transcription of heat numbers introduces high risks of human error and breaks the chain of custody.
Incomplete weld inspector credentials invalidate the weld logs and require complete re-inspection.
A lack of independent Quality Assurance (QA) sign-off on critical testing phases indicates a weak quality culture.
Missing software audit trails will guarantee a failure during your next regulatory inspection.
Generic passivation certificates that do not reference the specific serial number of your vessel.
Selecting the right fabrication partner requires looking beyond basic manufacturing capabilities. You must evaluate their internal validation engineering expertise and automation proficiency. A specialized biopharma manufacturer understands the regulatory landscape and proactively builds compliance into the equipment from the design phase.
Evaluate the vendor's Quality Management System (QMS). ISO 9001 certification is a baseline requirement. Look for ASME U-Stamp accreditation, which proves their capability to build safe pressure vessels. Investigate their historical regulatory audit performance. A manufacturer with a dedicated in-house validation team will drastically reduce your internal workload by delivering pre-approved, highly accurate FAT and SAT protocols. Their QA/QC maturity directly dictates the reliability of your final Turnover Package. We conduct on-site audits of prospective vendors to inspect their material quarantine areas and welding gas purity controls.
Request a complete sample Turnover Package (TOP) from prospective vendors to verify their documentation formatting and traceability standards.
Schedule an on-site facility audit of the manufacturer to inspect their orbital welding stations and QA/QC quarantine areas.
Draft a standardized FAT protocol aligned with your internal validation master plan before finalizing the equipment design specification.
Mandate boroscopy video submissions for 100% of blind welds within your initial procurement contracts.
A: FAT (Factory Acceptance Testing) verifies design, fabrication, and baseline functionality at the manufacturer's site before shipment. SAT (Site Acceptance Testing) occurs at your facility. It verifies utility integration, transit survival, and functionality in the final operating environment. Both phases are mandatory for comprehensive equipment qualification.
A: Traceability proves the materials will not leach into or react with the drug product. It ensures patient safety, prevents rouge formation, and provides the documented evidence required to satisfy FDA and EMA audit requirements. Without it, the vessel cannot be validated for pharmaceutical use.
A: The core elements of the Turnover Package include Mill Test Reports (MTRs), weld logs, boroscopy reports, surface finish reports, passivation certificates, as-built drawings, and software validation documents for automated systems. Every document must link directly to the physical asset's serial number.
A: CIP coverage is validated using riboflavin testing during the FAT. Technicians coat the interior with a fluorescent solution, run a standard rinse cycle, and visually confirm under UV light that spray balls adequately clean all internal surfaces, including shadow areas behind agitator shafts.
A: Validation engineers and ASME BPE standards recommend a Length to Diameter (L/D) ratio of less than 2:1 for all nozzles and branches. This specific geometry prevents stagnant zones, known as dead legs, ensuring complete cleanability and effective sterilization during CIP and SIP cycles.
A: Boroscopy reports provide visual proof of weld integrity in inaccessible areas. They confirm the absence of defects like sugaring, lack of fusion, or micro-crevices. This documentation ensures the internal surface is entirely smooth and free of bacterial harboring points, meeting sanitary welding standards.
