Selecting the wrong fluid handling equipment brings severe consequences to any processing facility. A single incorrect choice can cause disastrous batch contamination, excessive product shear, and massive downtime for manual cleaning. Process engineers know the stakes are incredibly high. Purchasing for hygienic applications requires moving far beyond standard hydraulic parameters. You must rigorously evaluate surface finishes, elastomer compatibility, and overall system cleanability to maintain strict compliance. This article provides process engineers and facility managers with a strict evaluation framework. We will guide you through mapping fluid dynamics, selecting optimal technologies, and verifying critical metallurgical standards. You will learn how to select, size, and seamlessly integrate the right equipment for your specific facility needs, ensuring optimal hygiene and performance across all production cycles.
Fluids behave unpredictably under different conditions. We must map fluid viscosity across varying temperature states completely. Gathering accurate fluid data requires a systematic approach. Follow these precise steps to build your process profile:
Differentiating between Newtonian and non-Newtonian fluids prevents unexpected motor overloads. Newtonian fluids maintain a constant viscosity regardless of forces applied. Water, clear broth, and apple juice fit this exact category. Non-Newtonian fluids change viscosity under applied mechanical stress. Ketchup becomes thinner when pumped rapidly. Honey thickens dramatically at lower temperatures. You must identify these specific shifts before sizing any motor.
Shear sensitivity heavily dictates your final pump selection. We must establish firm operational limits for delicate products. Dairy processing, cellular suspensions, and diced foods require extremely gentle handling. High-shear actions degrade product quality rapidly. They destroy cellular walls and alter delicate emulsion stability entirely.
Flow rate and head pressure needs dictate physical sizing requirements. Calculate your exact duty points carefully. Process engineers factor in systemic pressure drops continuously. Pipe friction, elbows, valves, and inline processing equipment create significant resistance. You must calculate Total Dynamic Head (TDH) accurately to ensure adequate flow.
Different hygienic applications demand very specific mechanical designs. Applying the wrong mechanism destroys efficiency.

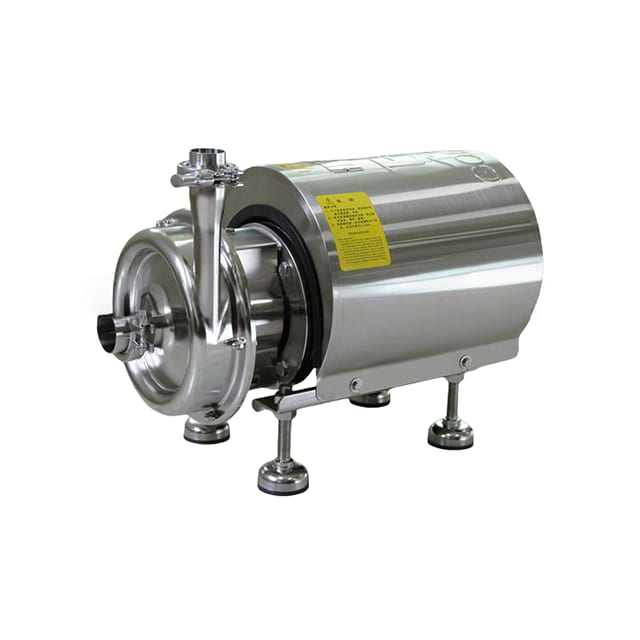

They excel at moving low-viscosity fluids quickly and efficiently. Water, milk, and clear beverages flow easily through them. They provide exceptional high-volume transfer capabilities for large facilities. However, they possess distinct mechanical limitations. They deliver poor performance with highly viscous fluids. Viscosities above 500 cP cause severe efficiency drops and overheating. Furthermore, their high-speed shear action easily damages fragile suspended solids.
This massive category includes rotary lobe, twin screw, and circumferential piston designs. They handle high-viscosity materials perfectly without stalling. They transport shear-sensitive materials safely across long distances. They also offer precise volumetric dosing capabilities for packaging lines. Limitations exist regarding upfront investment, though. They require a significantly higher initial capital expenditure. Their tighter internal clearances demand strict protection. You must keep foreign debris out using hygienic strainers.
They handle particulate-heavy fluids effortlessly without clogging. They also satisfy frequent dry-running requirements safely. Unfortunately, they inherently create a pulsating fluid flow. You often need expensive pulsation dampeners downstream. They also offer lower mechanical efficiency compared to continuous rotary designs.
| Technology Type | Best Suited For | Key Limitations | Shear Level |
|---|---|---|---|
| Centrifugal | Low viscosity, high volume, clear fluids | Poor with high viscosity, damages solids | High |
| Positive Displacement (PD) | High viscosity, shear-sensitive, dosing | High initial cost, sensitive to debris | Low |
| AODD | Heavy particulates, dry running needs | Pulsating flow, lower energy efficiency | Medium |
Wetted parts endure extreme chemical and thermal conditions daily. We mandate 316L stainless steel for all wetted components. It heavily resists localized corrosion effectively. Aggressive cleaning chemicals degrade inferior metals quickly. Sodium hydroxide and nitric acid destroy standard 304 stainless steel. They cause severe surface pitting over time. These microscopic pits harbor dangerous bacteria silently. You must verify metal quality immediately.
Surface finish standards stop bacterial growth completely. Demand a surface roughness (Ra) of 32 µ-in (0.8 µm) or better. Lower Ra values physically reduce microbial adhesion. They prevent stubborn biofilm buildup effectively. For ultra-pure pharmaceutical applications, we recommend electropolishing. This secondary process smooths the metal further. It reaches an impressive Ra 15 cleanly.
Certifications matter significantly more than generic marketing claims. Discard suppliers claiming basic hygienic design without proof. "Hygienic design" means nothing without third-party validation. You must demand verifiable 3-A Sanitary Standards documentation. Look for official EHEDG design guidelines. Require FDA-compliant elastomer documentation. Independent validation guarantees equipment safety entirely. It protects your facility from disastrous audit failures.
Elastomer selection demands strict chemical alignment. O-rings face constant chemical attacks daily. You must align materials strictly to prevent failure.
Mismatched elastomers swell rapidly under chemical stress. They degrade quickly and contaminate your precious product batches.
A pump never operates safely in a vacuum. We evaluate systemic resistance and inline component compatibility constantly. You must assess downstream backpressure accurately. Pushing a highly viscous fluid through the narrow corrugated plates of a heat exchanger alters performance drastically. It creates massive pressure drops instantly. You must ensure your selected pump curve overcomes this friction. Complex filtration skids also generate severe flow resistance.
Clean-in-Place (CIP) functionality ensures complete food safety. Automated cleaning saves enormous facility labor costs. Your equipment must generate sufficient fluid velocity internally. We target cleaning velocities strictly exceeding 1.5 meters per second. This speed creates necessary turbulent flow. Turbulent flow self-cleans internal surfaces perfectly. It mechanically scrubs away sticky product residue. Proper velocity eliminates manual teardown requirements completely.
Drainability prevents dangerous bacterial blooms. Internal geometry dictates cleanability entirely. The primary housing must drain fully by gravity. You must eliminate all dead legs during installation. A dead leg traps process fluid permanently. The sanitary industry uses the strict 2D rule here. A branch length must never exceed twice its main pipe diameter. Pooled water breeds bacteria rapidly between batches. Lingering residue causes devastating cross-contamination.
Mechanical seal configurations dictate factory uptime directly. Seal failures stop production lines instantly. You must analyze configuration risks closely before purchasing. We compare single versus double mechanical seals frequently. Single seals handle basic watery fluids reasonably well. Double flushed seals remain absolutely mandatory for sticky fluids. Abrasive liquids destroy standard single seals quickly. The external flush fluid cools the delicate seal faces actively. It prevents catastrophic mechanical failure and leaks.
Maintenance accessibility impacts operational downtime severely. Measure the exact labor hours needed for routine repairs. Facility mechanics will eventually replace stators, rotors, or seals. Standard legacy designs require complete pipework disconnection. Front-loading seal designs change this dynamic entirely. They allow technicians to replace mechanical seals directly. They never unbolt the heavy main housing. This significantly reduces maintenance labor and speeds up recovery.
Energy efficiency heavily influences long-term facility success. Consider long-term energy consumption carefully. Compare appropriately sized premium-efficiency motors against standard units. Premium motors run cooler and last significantly longer. Avoid the strong temptation of undersized units. They offer short-term capital savings only. Undersized motors overheat quickly under heavy product loads. They fail prematurely, causing highly unexpected line downtime.
Request exact performance curves before signing any purchase order. Demand engineering data matching your specific fluid viscosity. Ignore generic water-based marketing curves completely. High fluid viscosity changes mechanical efficiency instantly. A true engineering partner models your actual process conditions accurately. They account for temperature shifts and shear limitations.
Evaluate supplier documentation rigorously. Traceability protects your entire processing operation. Require Material Test Reports (MTRs) for every critical part. MTRs prove the exact metallurgical composition of the steel. Documented factory acceptance testing (FAT) is also crucial. It guarantees real-world flow performance before delivery. You need solid proof before the expensive equipment ships.
Aftermarket support reliability protects your daily production schedule. A broken food-grade sanitary pump halts production immediately. Investigate your chosen supplier's domestic parts inventory carefully. They must stock critical wear components locally. Ask specifically about spare seals, impellers, and elastomers. Fast access to components prevents catastrophic supply chain delays. When you select a sanitary pump, you enter a long-term engineering partnership. Choose a dedicated supplier offering proven technical support.
A: Industrial pumps prioritize raw performance and fluid transfer speed. They often feature internal crevices where dangerous bacteria easily hide. A sanitary design prioritizes strict hygiene and cleanability. It uses high-grade 316L stainless steel exclusively. It features a completely crevice-free internal geometry for rapid sterilization. It also strictly meets regulatory compliance standards like 3-A or EHEDG guidelines.
A: They handle slightly viscous fluids, but performance drops sharply. Overall mechanical efficiency plummets when fluid viscosity exceeds 500 cP. Pushing highly viscous materials through a fast centrifugal design creates immense product shear. It also increases the severe risk of internal cavitation. You should switch to a positive displacement design for thicker products.
A: Rotary lobe designs offer incredible historical reliability. They handle thick materials well but possess a narrower operational speed range. Twin-screw designs provide excellent dual functionality. They gently process sensitive products at low speeds. They also safely transfer high-speed, low-viscosity CIP fluids. This entirely eliminates the need for a secondary CIP return pump.
