Procuring a commercial-scale biofermentor represents a high-stakes capital expenditure for any facility. Over-engineering these systems wastes valuable project budget needlessly. Under-engineering them directly risks catastrophic batch contamination and lost revenue. Scaling your bioprocess from a simple benchtop setup to pilot or full production introduces major hurdles. You must navigate complex fluid dynamics carefully as liquid volumes increase. Teams also face strict sterility standards and tough facility integration challenges daily. Selecting the exact right equipment demands moving well beyond basic volume metrics. You will learn how to properly evaluate critical metallurgy, thermal control mechanisms, and advanced agitation physics. We will also explore industry-specific compliance standards to ensure your next vessel meets regulatory demands safely. Our guide provides actionable insights for optimizing your bioprocessing infrastructure successfully.
Start your procurement journey by outlining strict strain and culture requirements. Microorganisms dictate specific design choices from the ground up. Bacteria, yeast, mammalian cells, or fungi each have incredibly unique metabolic needs. These biological agents determine the vessel's oxygen, pressure, and shear-stress limitations fundamentally. Fragile mammalian cells need low shear forces to prevent cell wall rupture. Fungi often require robust, high-torque agitation to handle rapidly increasing fluid viscosity during long fermentation runs.
Next, establish clear sizing rules for your new equipment. Working volume differs greatly from the total geometric volume. Typically, you design these vessels for a 70-80% working volume capacity. This vital extra headspace accommodates heavy foaming during active cellular growth phases. It also manages gas hold-up effectively during peak fermentation activity. Failing to calculate this headspace correctly causes dangerous pressure buildup and costly blowout events.
Finally, define your upstream and downstream integration strategy thoroughly. Your fermentor must interface smoothly across the entire production floor. You need seamless, sterile fluid transfer originating from early seed trains. Connecting to media preparation vessels safely is equally critical for continuous biomanufacturing operations. Processing routes often end when harvesting into downstream storage tanks. Seamless integration prevents operational bottlenecks and minimizes dangerous cross-contamination risks entirely.

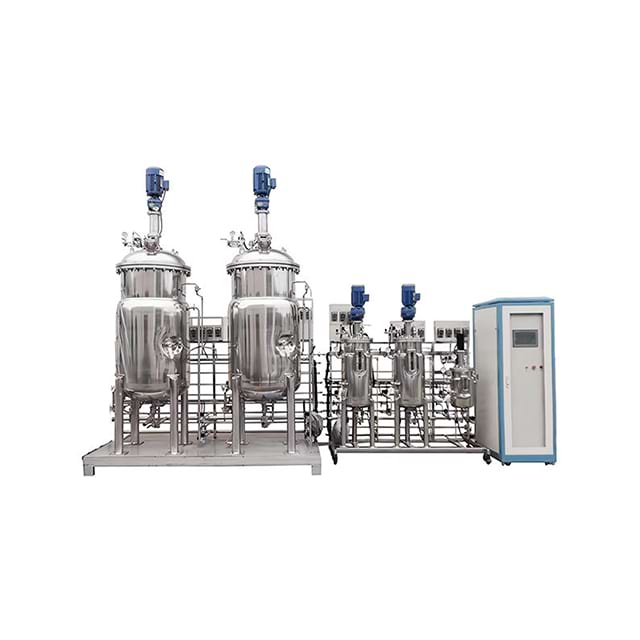

Choosing a stainless steel biofermentation tank guarantees reliable, scalable production capabilities. Metallurgy matters immensely when handling sensitive biological media. We mandate 316L stainless steel for all internal wetted contact parts. The strategic addition of molybdenum gives 316L superior chloride corrosion resistance against harsh cleaning chemicals. You can safely specify 304 stainless steel for the non-contact outer cladding. This dual-alloy engineering approach saves money without compromising internal sterility.
Surface finish and topography dictate true sterility in bioprocessing. Mechanical polishing followed by precise electropolishing remains absolutely essential. You should target an internal Ra value between 0.4 µm and 0.8 µm. This microscopic smoothness eliminates dangerous micro-crevices where stray bacteria hide. Pathogens easily survive and multiply in rougher textures. A highly polished, anodic-dissolved surface essentially guarantees successful, repeatable cleaning cycles.
Consider durability and pressure ratings very carefully. A well-built stainless steel fermentation tank offers immense longevity spanning decades. These robust vessels tolerate high-heat sterilization seamlessly without degrading over time. They easily meet rigorous ASME and PED pressure standards globally. In contrast, single-use bioreactors (SUBs) present severe pressure limitations and environmental waste concerns. SUBs also generate massive recurring consumable costs for plastic bags. Steel vessels provide a permanent, robust, and sustainable solution for heavy industry.
Metabolic cellular activity generates intense exothermic heat continuously. Cooling and heating mechanics must respond rapidly to maintain cell viability. You can evaluate dimple jackets, half-pipe coil jackets, and standard double-wall designs. Dimple jackets handle moderate pressure well and provide excellent turbulence for cooling fluids. Half-pipe coils support high-flow liquid utility media and handle extreme pressure ratings safely.
Flow rate directly influences overall jacket heat transfer performance. High-density chloride-free insulation wrapping the jacket is absolutely necessary. It maintains precise temperature setpoints accurately despite ambient room temperature fluctuations. Proper insulation prevents expensive utility waste during long, multi-day biological batches.
Agitation physics define your mass transfer success completely. Match your chosen impeller types to the specific biological process. Rushton turbines deliver high-shear oxygenation required for robust bacterial growth. Marine propellers offer low-shear, gentle mixing for delicate mammalian cell cultures. Pitched blade turbines offer a great balance of axial flow and moderate shear.
Sparging and baffling optimize the gas-liquid mass transfer rate continuously. Micro-spargers introduce millions of tiny oxygen bubbles directly into the culture media. Internal wall baffles break up circular fluid rotation efficiently. Baffles actively prevent destructive vortexing around the central drive shaft.
Compare top-entry and bottom-entry magnetic mixers carefully. Top-entry drives keep mechanical seals safely above the liquid fill level. Bottom-entry magnetic mixers eliminate top shaft penetrations entirely, freeing up valuable head space. We often recommend bottom magnetic drives for the ultimate sterility requirements in pharmaceutical manufacturing.
Clean-in-Place (CIP) systems demand rigorous validation protocols. You must require comprehensive spray ball coverage mapping from the equipment vendor. Riboflavin testing proves the cleaning effectiveness visually using ultraviolet light. Operators spray a fluorescent solution, run a rinse cycle, and inspect for glowing residue. This testing ensures absolutely zero blind spots exist inside the chamber. It verifies coverage under ports, impellers, and dark shadow zones perfectly.
Sterilize-in-Place (SIP) routines rely on high-pressure clean steam. Outline strict requirements for hygienic diaphragms and zero-dead-leg valves. Use only steam-grade seals made of EPDM or PTFE materials. These specialized materials withstand repeated 121°C steam cycles flawlessly over time. Proper slope design ensures complete condensate drainage after the SIP cycle ends.
Compliance frameworks vary drastically depending on your specific production sector. Navigating these rules requires deep knowledge of regulatory expectations.
For pharma and biologics, regulations remain strict and uncompromising. Highlight the absolute necessity for full material traceability (MTRs) for every steel component. FDA cGMP compliance dictates facility layouts and cleaning validation protocols. ASME BPE design governs piping slopes, weld quality, and vessel geometry tightly. Comprehensive validation documentation proves equipment readiness to regulatory inspectors. This documentation includes Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ).
Food, beverage, and alternative proteins face slightly different regulatory hurdles. Discuss 3-A Sanitary Standards and European EHEDG guidelines with your engineering team. These sectors balance strict food-grade safety against high-volume cost efficiency demands. Profit margins typically remain tighter here compared to pure pharmaceutical production.
Sensor integration links physical tanks directly to your SCADA control systems. Detail your requirements for standardized, fully sanitary ports. Ingold and Tri-Clamp ports house crucial analytical probes reliably. You will monitor pH, dissolved oxygen (DO), temperature, and anti-foam levels constantly. Reliable sensor ports ensure complete compatibility with plant-wide PLC networks.
The following table outlines major specification differences across key biomanufacturing sectors:
| Specification Metric | Pharma & Biologics | Food & Beverage |
|---|---|---|
| Surface Finish Target | Ra < 0.4 µm (Electropolished) | Ra < 0.8 µm (Mechanically Polished) |
| Primary Standard | ASME BPE / FDA cGMP | 3-A Sanitary / EHEDG |
| Validation Needs | Extensive (IQ/OQ/PQ) | Moderate (FAT/SAT) |
| Material Traceability | Full MTRs on all wetted parts | Basic material certs acceptable |
| Weld Inspection | 100% Borescope & Radiography | Visual Inspection & Dye Penetrant |
Facility utility limitations often trap eager procurement teams. Warn your engineering team against specifying massive, oversized tanks blindly. Huge vessels might exceed existing plant capacities instantly. They drain clean steam generators quickly during intense SIP heating phases. Chilled water loops can fail under sudden, massive metabolic heat loads during peak fermentation. Verify your total electrical load limits before ordering high-horsepower agitator motors.
Lead times require careful scheduling and realistic project management. Custom fabrication involves lengthy timelines, often stretching across multiple financial quarters. Emphasize the importance of thorough Factory Acceptance Testing (FAT). Conduct this FAT at the vendor site before any shipment occurs. Follow it with rigorous Site Acceptance Testing (SAT) immediately upon installation at your facility.
Vendor support dictates long-term commercial success greatly. Evaluate manufacturers based on post-sale engineering availability and responsiveness. Ask about the readily available supply of replacement mechanical seals and proprietary parts. Review the warranty terms for the main pressure vessels carefully. A cheaper upfront bid often masks terrible post-installation service.
Shortlisting logic streamlines the complex procurement process. Procurement teams should filter potential vendors first by compliance certifications. Next, assess their actual facility scale capabilities and past installation references. Finally, judge their custom engineering competence deeply during technical interviews.
We encourage readers to compile a detailed document immediately. Write a comprehensive User Requirement Specification (URS) to guide vendors effectively. Detail your process chemistry, utility availability, and scale targets clearly. Do this before initiating any official Request for Quote (RFQ) process.
Follow these critical steps when drafting your formal URS:
A: People often use these terms interchangeably. However, fermentors typically refer to microbial or fungal systems involving bacteria and yeast. These tough cultures require rigorous agitation and high oxygen transfer. Bioreactors generally imply gentler, controlled environments tailored specifically for fragile mammalian or plant cell cultures.
A: Sizing requires calculating the maximum metabolic heat load generated by your specific microorganism strain. You must then add the mechanical heat introduced by the agitator motor. Match this combined heat load against your facility's chilled water supply temperature and available flow rate accurately.
A: Retrofitting presents significant engineering limitations. It proves difficult if the original vessel lacks necessary ASME pressure ratings for high-heat steam sterilization (SIP). Older tanks often lack the required sanitary port configurations needed for advanced DO and pH monitoring probes essential to modern precision fermentation.
