Upgrading process equipment or scaling a production line requires a definitive choice on heating methodology. The wrong choice easily bottlenecks production and inflates operational expenditures. Plant managers face a critical crossroad when designing new thermal processing lines.
While both steam and electric systems achieve targeted thermal profiles, the decision hinges on existing plant infrastructure. You must evaluate precise temperature requirements, mandatory safety compliance, and long-term utility costs. An ad-hoc decision often leads to stranded capital or endless maintenance loops.
This article provides a transparent, engineering-focused framework to evaluate electric options against traditional steam configurations. You will learn how to specify the exact right equipment for your facility. We aim to help you protect your process margins and maximize equipment uptime.
Evaluating your current utility matrix remains the most critical first step. Installing a steam heating tank requires existing boiler capacity. You also need insulated piping, functional steam traps, and dedicated condensate return lines. If your facility requires a brand-new boiler installation, your capital expenditure multiplies exponentially. Boilers demand dedicated physical rooms, exhaust stacks, and specialized water softening equipment.

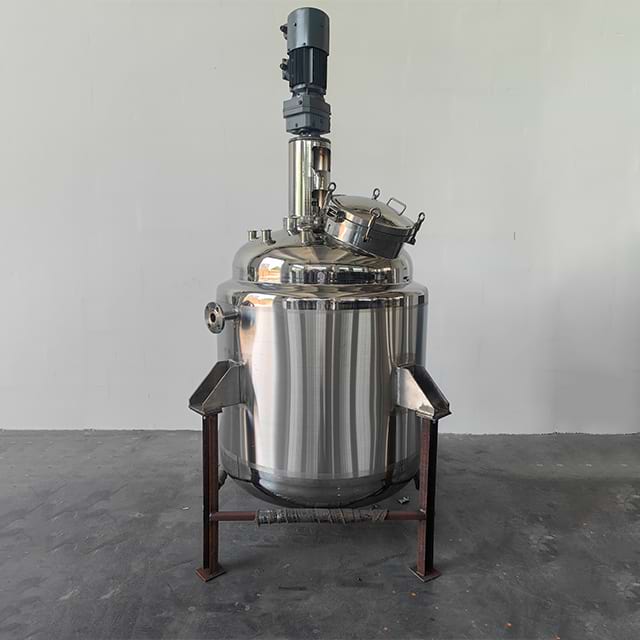

Conversely, a modern electric heating mixing tank offers plug-and-play scalability. It typically requires only appropriate high-voltage industrial wiring. You hook it up to localized breaker panels. You avoid running hundreds of feet of insulated steam piping across the factory floor. This simplicity drastically accelerates installation timelines.
Consider your available plant footprint. Electric systems remain entirely self-contained. They save premium floor space for other profitable operations. Steam systems require massive auxiliary equipment footprints. You must accommodate boilers, water softeners, chemical feed stations, and blowdown separators.
Follow these numbered steps to check your basic assumptions before comparing capital costs:
Steam provides massive latent heat upon phase change condensation. It releases energy extremely quickly into the product surface. This mechanism proves ideal for rapidly bringing large volumes up to temperature. If you process batches exceeding 5,000 liters, steam delivers unmatched heat-up speeds. Heavy industries often rely on this brute-force thermal transfer.
Electric heaters provide highly precise, localized heat input. They exhibit virtually zero lag time once powered off. This capability minimizes the risk of overshooting your target temperature. Precise control serves as a strict requirement for shear-sensitive polymers, delicate cosmetics, and complex food products. Solid-state relays and PID controllers allow engineers to hold temperatures within a fraction of a degree.

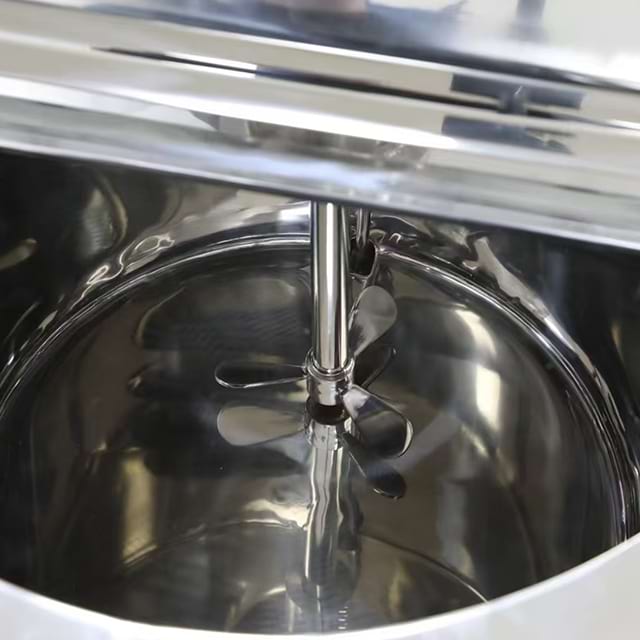

Agitation plays a massive role in thermal uniformity. When using a rotating heating mixing tank, internal agitation combines with localized electric heating to prevent product burn-on. The sweeping action constantly renews the product layer against the hot walls. This prevents localized fouling. It remains a critical performance metric for high-viscosity materials like pastes, gels, and heavy syrups.
Here is a quick best practice to remember. Always match your heating source to your product's thermal degradation threshold. Pushing extremely hot high-pressure steam into a jacket can easily scorch delicate food ingredients before the agitator can blend them.
Performance Matrix
| Heating Methodology | Ramp-Up Speed | Temperature Precision | Best Use Case |
|---|---|---|---|
| Direct Steam Jacket | Very High | Moderate | High-volume, robust liquids |
| Electric Immersion Heaters | Moderate | Very High | Small to medium precise batches |
| Electric Thermal Fluid Jacket | Moderate | Excellent | Viscous, heat-sensitive gels |
Electric heating achieves nearly 100% efficiency at the point of use. Every kilowatt drawn converts directly to heat within the jacket or the transfer fluid. You do not lose energy traveling from a remote utility room to the production floor. This localized efficiency often offsets higher baseline electricity prices.
Steam generation inherently suffers from systemic heat losses. Heat escapes through boiler exhaust stacks. It bleeds out of uninsulated pipe runs. Faulty steam traps constantly waste expensive energy. Even a well-maintained boiler system typically operates at only 75% to 80% overall thermal efficiency. Older steam infrastructures can easily experience 20% to 30% total system loss before the heat ever reaches the mixing vessel.
You need a solid framework for long-term utility modeling. Calculate the localized cost per kilowatt-hour. Compare this figure directly against the cost per BTU of steam generation. You must accurately factor in those assumed system losses for steam.
Common Mistake: Many facilities only compare raw fuel costs. They completely ignore the massive energy losses occurring in their aging steam distribution network. Always measure the energy actually delivered to the jacket.
Steam systems demand relentless, continuous monitoring. You must maintain strict water chemistry to prevent internal scaling. Scale buildup ruins boiler efficiency and causes catastrophic tube failures. Steam traps inevitably fail over time. They often fail open, which wastes massive amounts of energy. Sometimes they fail closed, which completely stops the heating process. Furthermore, pressure vessel inspections mandate planned, unavoidable downtime.
By contrast, an electric heated mixing tank limits your maintenance burden. The primary failure points are simply the heating elements themselves. Contactors and relays occasionally wear out, but they represent cheap, easily replaceable components.
Modern equipment leverages the drywell advantage. Manufacturers often utilize indirect drywell heating designs. This configuration allows technicians to swap burned-out heating elements without ever draining the jacket fluid. You never break the process seal. This design drastically reduces your mean time to repair (MTTR). A job that used to take eight hours and create a massive mess now takes thirty minutes.
Your maintenance team will appreciate the simplicity. They spend less time testing water pH levels. They spend more time optimizing actual production machinery. You effectively trade complex mechanical pipefitting for straightforward electrical troubleshooting.
Chemical processing often involves highly volatile solvents. In these specific environments, steam proves inherently safe. It provides absolutely no ignition source. You can pump steam into the most dangerous Class 1 Div 1 environments without worry.
Using electric elements in hazardous locations requires careful engineering. You must specify certified explosion-proof enclosures. These ATEX or NEMA 7 rated housings prevent internal sparks from igniting external fumes. While entirely feasible, these heavy-duty enclosures increase the initial capital cost of the equipment. You must strictly adhere to local electrical codes when wiring these panels.
Pressure vessel regulations govern traditional steam setups. Multi-jacketed steam tanks operate under high internal pressure. They utilize dimple, half-pipe, or conventional jackets. These vessels must strictly adhere to ASME Section VIII codes or regional equivalents. They require certified welders for any repairs. They also demand regular safety valve testing and government inspections.
Electric thermal fluid jackets sidestep many of these legal hurdles. Hot oil or water systems often operate at or near atmospheric pressure. They simply heat a fluid and circulate it. This approach bypasses stringent pressure vessel regulations entirely. You avoid mandatory state inspections. You reduce your overall liability and regulatory paperwork.
Choosing the right thermal solution requires a balanced evaluation of your current constraints and future goals. Use this shortlisting guide to steer your engineering team toward the correct specification.
Choose steam if:
Choose electric if:
Your immediate actionable next step is simple. Conduct a comprehensive facility energy audit. Then, request detailed lifecycle cost models from your equipment vendors spanning a 5-year operational window. Compare the real-world operational costs side-by-side.
Do not let familiarity bias drive your decision. Just because your plant has always used steam does not mean it remains the most efficient choice for a new product line.
The "best" tank is entirely contextual to your facility's existing infrastructure and your product's thermal sensitivity. There is no universal correct answer. You must weigh the raw speed of steam against the surgical precision of localized electricity.
Evaluating unseen costs protects your process ROI. You must account for boiler maintenance downtime, water treatment chemicals, and actual kilowatt-hour rates. Ignoring these hidden variables ruins even the most carefully planned capital budgets.
We encourage you to consult with a dedicated process engineer immediately. Review your specific batch viscosity profiles, target heating times, and local utility rates before finalizing any equipment specifications. Making a data-driven choice today ensures decades of reliable, profitable production.
A: Yes, but it requires significant modification. The jacket must be adapted to hold a heat transfer fluid like water or thermal oil. Flanged immersion heaters or circulation heaters must be installed and properly sealed. You also need to add expansion tanks and electrical control panels to safely manage the new thermal fluid system.
A: Conventional double-wall jackets are standard for electric thermal fluid heating. They provide excellent volume for immersion heaters. Dimple jackets or half-pipe coils are generally reserved for steam or pumped cooling fluids. Their high-pressure ratings and directed flow paths suit high-velocity utilities better than stagnant electric heating fluids.
A: Rotating heating mixing tanks often feature complex scraper blades or counter-rotating agitators. These mechanisms continuously sweep the heated walls. This is crucial for electric tanks processing thick materials. It ensures heat is evenly distributed and prevents the product from degrading or burning against the direct heating surface.
A: At the plant level, yes. They produce zero point-source emissions. You have no exhaust stacks or greenhouse gases at the factory. However, their true carbon footprint depends entirely on how the local grid generates your electricity. Using a grid powered by renewables makes them vastly cleaner than gas-fired boilers.
