Nail Varnish Machine and Paint Mix Machines for Industrial Use

The industrial production of liquid coatings, encompassing both decorative nail varnish (nail polish) and functional paints, is a sophisticated process that demands precision, consistency, and specialized equipment. While the end products differ in scale and application, their manufacturing shares core technological principles centered on dispersion, grinding, and homogenization. This in-depth guide explores the machinery that forms the backbone of these industries, detailing the processes from raw material handling to final filling, with a focus on the critical mixing and milling stages that define product quality.

The Foundation: Understanding the Mixing and Milling Process

At the heart of both nail varnish and industrial paint production lies the fundamental challenge of creating a stable, uniform, and finely dispersed suspension. The key ingredients—pigments for color and opacity, binders (like nitrocellulose in polish or acrylics/alkyds in paint), solvents, and additives—exist in disparate physical states. The primary goal of the industrial mixing and milling process is to break down pigment agglomerates, wet each particle thoroughly with the binder and solvent, and distribute them evenly to prevent settling, ensure consistent color, and achieve the desired gloss and durability. This is not a simple stirring task; it requires a sequence of engineered steps using specialized equipment. The process typically begins with a pre-mix or rough dispersion stage, where raw materials are combined in a high-speed, high-shear mixer to initially wet the powders and reduce large agglomerates. This is followed by the crucial grinding or milling stage, where the mixture passes through equipment designed to apply intense mechanical force to break down remaining clusters to their primary particle size. Finally, a let-down and finishing stage involves adding remaining solvents and sensitive additives under gentler agitation to achieve the final viscosity and formulation without damaging the achieved dispersion.

Core Equipment for Dispersion and Grinding

The quality of the final product is directly determined by the efficiency of the dispersion and grinding equipment. For both nail polish and paint, achieving a perfectly smooth, lump-free finish with intense color development requires moving beyond simple mixers.

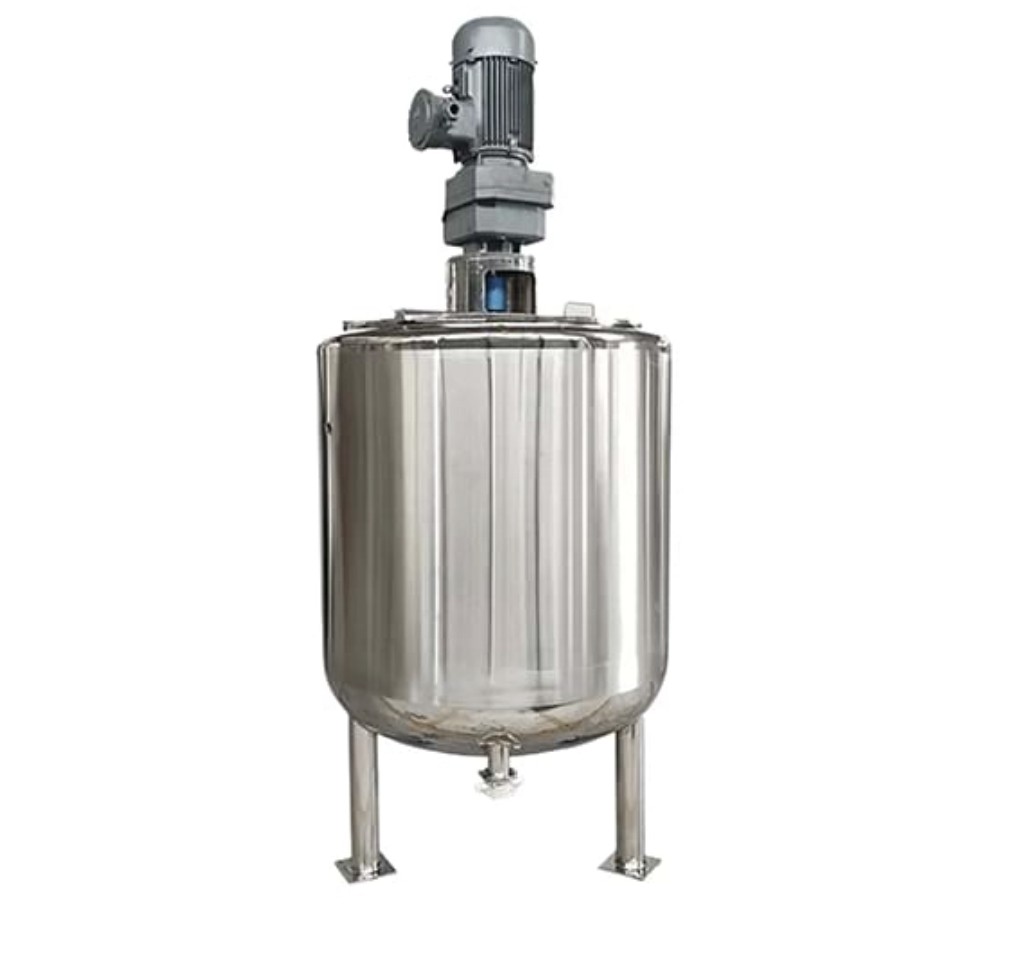

High-Speed Dispersers (HSD): Often the workhorse for the initial pre-mix stage, a high-speed disperser consists of a single, toothed disc impeller mounted on a shaft, rotating at very high speeds. It is lowered into a mixing tank containing the pigments, binders, and a portion of the solvents. The disc creates a powerful vortex, sucking materials from the top and bottom of the tank and subjecting them to intense hydraulic shear. This action effectively wets the pigment particles and breaks up soft agglomerates. However, for the finest finishes and most demanding pigments, an HSD alone is often insufficient, serving primarily as a feeder for more intensive grinding equipment.

Bead Mills (Sand Mills): This is a cornerstone technology for achieving the fine grind required for high-quality nail varnishes and industrial paints. In a bead mill, the pre-mixed paste is pumped through a chamber filled with small, hard grinding media—typically zirconium oxide or glass beads. As the chamber's agitator (a series of discs or pins) rotates at high speed, it imparts energy to the beads, which collide with each other and with the pigment agglomerates trapped between them. This multitude of high-energy, point-to-point impacts provides an extremely efficient grinding action, capable of reducing particles to the micron and sub-micron range. Bead mills can operate in either batch or continuous (recirculation or single-pass) modes and are critical for developing color strength, gloss, and transparency, especially in metallic or pearlescent nail polishes and high-gloss automotive paints.

Three-Roll Mills: A classic and highly effective piece of equipment for high-viscosity pastes, the three-roll mill operates on the principle of shear force created between closely spaced rollers. The paste is fed into the nip between the first (feed) roll and the second (center) roll. As the rolls rotate at different speeds, the material is sheared and transferred to the nip between the center roll and the third (apron) roll, and finally scraped off by a blade. The gap between each pair of rolls is precisely adjustable, often down to microns, allowing for extremely fine dispersion. Three-roll mills are particularly valued for their ability to handle very viscous materials, such as some paste-like base formulations or highly filled systems, and are known for producing excellent gloss and fineness of grind.

Specialized Production Lines: From Nail Varnish to Industrial Paint

While the core dispersion technology overlaps, the full production lines and ancillary equipment are tailored to the specific product.

Nail Varnish (Polish) Production Line: A complete line integrates several key machines beyond the mixer and mill. After the color base is milled to perfection, it proceeds to the tinting and shading station, where precise doses of additional colorants are blended under controlled agitation to hit exact shade specifications. The final, approved batch is then transferred to a filling machine. Modern nail polish fillers are highly precise, often using peristaltic or piston pumps to dispense the exact volume into each bottle without dripping, followed by automatic cap tightening. Agitation may be maintained in the holding tank to prevent settling. The line typically includes automatic bottle unscramblers, cleaners, and cappers, creating a semi- or fully-automated sequence from empty bottle to finished, packaged product.

Industrial Paint Production Line: Scale and formulation variety dictate a more complex setup. Large-volume production utilizes titanium dioxide dispersion and other high-volume bases. The process heavily relies on large-capacity mixing tanks equipped with high-speed dispersers for pre-mix, which then feed multiple bead mills operating in parallel or series. A key stage is the let-down tank, a larger vessel with a slower-speed mixer where the milled base is combined with the remaining resins, solvents, and additives. For water-based paints, this stage requires careful pH and viscosity control. Filtration through bag or cartridge filters is critical to remove any oversized particles or grinding media contamination before the paint is pumped to bulk storage tanks or directly to filling lines for cans, pails, or drums. Advanced facilities employ automated powder handling systems for major pigments and computerized process control for recipe management.

Critical Selection Factors and Modern Advancements

Choosing the right machinery requires a deep analysis of production needs. Product Formulation is paramount: the viscosity, pigment type (organic, inorganic, effect), and desired fineness of grind dictate whether a bead mill, three-roll mill, or a combination is best. Production Volume determines the size (tank volume, mill chamber volume) and configuration (batch vs. continuous) of the equipment. Hygiene and Cleanability are especially critical for nail varnish, where color changeovers are frequent; equipment with CIP (Clean-in-Place) capabilities, polished surfaces, and quick-disconnect parts minimizes downtime. For paints, durability and maintenance of grinding media and mill components under abrasive loads are key concerns.

Modern advancements focus on process intensification and control. Horizontal bead mills with larger media separation systems allow for higher flow rates and finer grinds. Automation and Industry 4.0 integration are becoming standard, with sensors monitoring temperature, pressure, flow rate, and power consumption, allowing for real-time adjustment and consistent, repeatable batch quality. Furthermore, equipment is being designed for greater sustainability, with features that reduce solvent loss (sealed systems), lower energy consumption (high-efficiency motors and designs), and facilitate easier cleaning to reduce water and chemical waste.

Conclusion: The Engine of Quality and Consistency

In conclusion, the industrial paint mix machines and specialized nail varnish production equipment are not merely tools but engineered systems that define the quality, performance, and aesthetic appeal of the final product. From the powerful, vortex-creating action of the high-speed disperser to the micron-level refining achieved in a bead mill or the precise shearing of a three-roll mill, each machine plays a non-negotiable role in transforming raw, disparate materials into a homogeneous, high-performance coating. Investing in the correct technology—matched to formulation specifics, scale, and quality requirements—is the fundamental step for manufacturers aiming to achieve efficiency, innovation, and market-leading consistency in the competitive world of liquid coatings.

Seeking to optimize your coating production with advanced, reliable dispersion and mixing technology? Contact our application engineers for a comprehensive analysis of your process and a tailored equipment recommendation.
