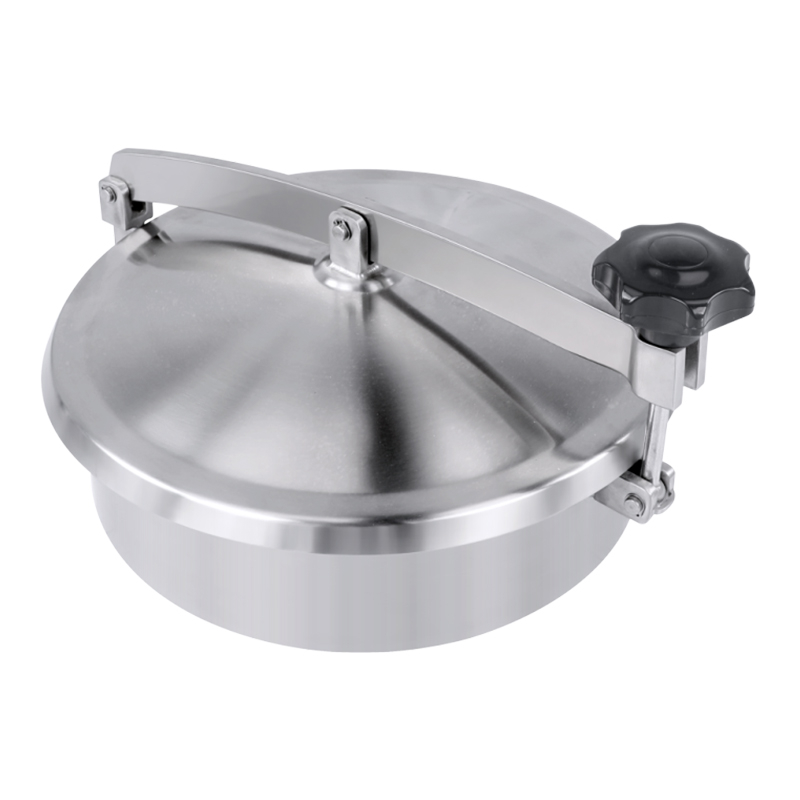

Food Pharma Grade Non Pressure Round Hygienic Manway
Non-pressure design optimized for tanks, vessels, and equipment with internal pressure equal to atmospheric pressure
Constructed from medical-grade SS304/SS316L stainless steel to prevent contamination and ensure product safety
Features a seamless, mirror-polished interior/exterior (Ra ≤ 0.8μm) for easy cleaning and sterilization
Equipped with food-safe EPDM/NBR silicone gaskets that resist high temperatures and chemical corrosion
Available in standard sizes (DN300-DN600) with customizable dimensions to fit specific equipment requirements
Complies with global certifications including FDA, CE, and 3A Sanitary Standards for cross-industry compatibility
| Quantity: | |
|---|---|
Product Overview
In food, beverage, and pharmaceutical processing, hygienic access to tanks and vessels is essential for inspection, cleaning, and maintenance. Our Food & Pharma Grade Round Hygienic Manway is specifically designed as a non-pressure sanitary access solution, providing safe, reliable entry while maintaining strict hygiene standards.
Manufactured from high-quality AISI 304 or AISI 316L stainless steel, this round manway features a smooth, crevice-free construction that minimizes contamination risks. The internal surface finish of Ra 0.5–0.8 μm ensures easy cleaning and effective CIP procedures, while the externally polished or matte-finished surface delivers both durability and a professional appearance. When closed, the hygienic gasket and hand-wheel tightening system create a secure seal suitable for low-pressure and atmospheric applications.
Designed for daily industrial use, the outward-opening cover allows convenient access to tank interiors for routine inspection, cleaning, and maintenance. Its robust yet simple structure makes it a dependable choice for food and pharmaceutical facilities where hygiene, reliability, and ease of operation are critical.
Round Hygienic Manway Features
1. Hygienic Stainless Steel Construction
Material options: AISI 304 (1.4301) or AISI 316L (1.4404)
Internal surface finish: Ra 0.5–0.8 μm, suitable for sanitary applications
External finish options: mirror polish, matt finish, or sand-blasted
Seamless design reduces dirt accumulation and simplifies cleaning
2. Reliable Sealing for Non-Pressure Applications
Maximum working pressure: 0.5 bar
Food-grade gasket materials available: EPDM, NBR, Silicone, FPM
Gaskets comply with FDA 177.2600, ensuring safe contact with food and pharmaceutical products
3. User-Friendly & Safe Design
Outward-opening manhole cover for easy access
Plastic or stainless steel hand wheel for simple and secure tightening
Rounded edges and smooth surfaces help prevent operator injury and equipment damage
4. Flexible Size & Configuration Options
Standard sizes available: DN200 / 250 / 300 / 350 / 400 / 450 / 500 / 600
Height options: 100 mm / 120 mm / 150 mm
Suitable for installation on various tanks, vessels, and processing equipment
5. Food & Pharmaceutical Compliance
All wetted materials conform to relevant FDA food-contact requirements
Designed to support hygienic processing environments and routine CIP cleaning
Applications
Food & Beverage Industry
Storage tanks for water, juice, dairy products, and edible oils
Mixing and blending vessels for sauces, syrups, and liquid ingredients
Inspection and manual cleaning access for hygienic tanks
Pharmaceutical & Chemical Processing
Process and storage tanks requiring sanitary inspection access
Vessels used for non-pressure or low-pressure applications
Equipment where easy cleaning and material compatibility are essential
Outward opening manhole cover
Plastic hand wheel or stainless steel hand wheel
Internal surface：Ra0.8μm-0.5μm
Outside surface: Mirror polish, Matt finish, sand-blasting finished.
Max. pressure：0.5bar
Gasket：EPDM 、NBR、SILICON、FPM conform to FDA177.2600
Height：100、120、150
Material：AISI304(1.4301)/316L(1.4404)
Size: 200/250/300/350/400/450/500/600
-
