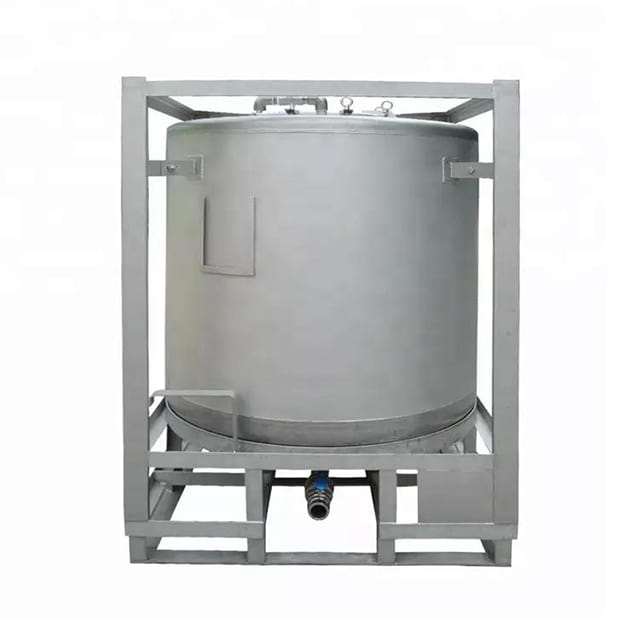

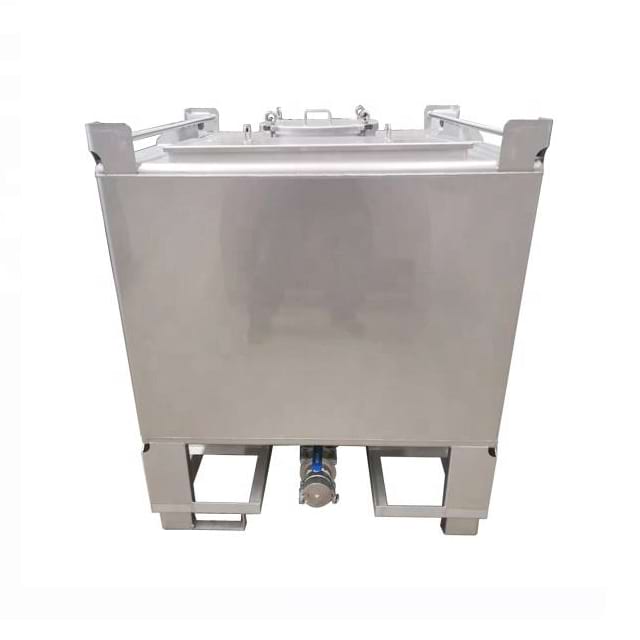

Stainless Steel IBC Tank for Chemical Storage

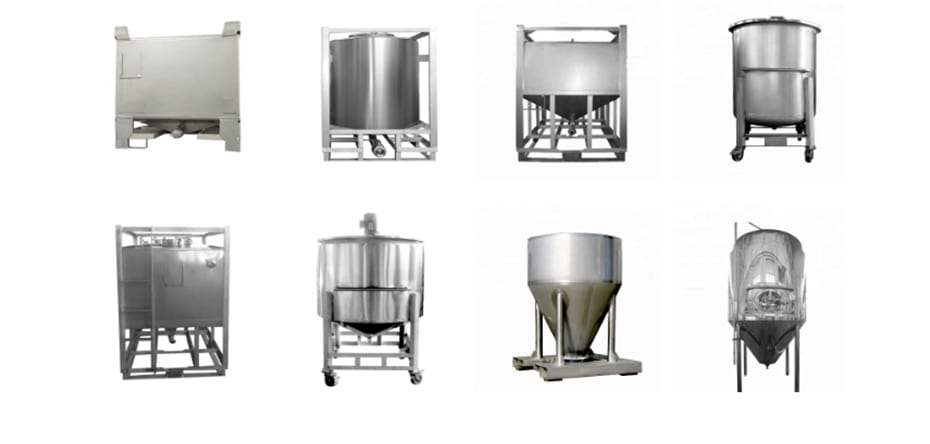

• Shape: Square, Column,Cone ,etc. Customized

• Size: customized

• Capacity: 100L-450000L

• Material: SS304, SS316L, galvanized iron, kinds of alloy

• Type: Single wall, Double wall, Movable with wheels, Insulation with jacket/ coil pipe, Heating with electric heating tube etc.

• Application Industry: Food and Beverage Industry, Pharmaceutical Industry, Chemical Industry, Cosmetics Industry, Brewing and Distilling Industry, Dairy Industry, Agricultural Industry, Water Treatment Industry, Oil and Gas Industry, Manufacturing Industry etc.

• Surface Treatment: Pickling, Alcohol scrub, Mirror polishing Sealing Gasket: NBR/ Silicone/ EPDM/ PTFE etc.

• Regular accessories: DN400 BX sealed manhole, safety valve, exhaust port with ball valve, inlet port with ball valve, sight glass valve, Dustcap etc.

• Connection type: Tri- clamp, thread, flange Warranty: one year

• Package: Wrapping film + bubble wrap/ paper shell board for tank for FCL shipping

Product Overview

The Stainless Steel IBC Tank for Chemical Storage redefines safe bulk chemical handling with its robust design and versatile performance capabilities. Constructed from high-grade 316L stainless steel with a 2B finish for enhanced corrosion resistance, this intermediate bulk container provides secure storage and transportation for a wide range of hazardous and non-hazardous chemicals. Available in standard capacities of 1000L, 1250L, and 1500L, it features a UN/DOT 31A/Y certification for dangerous goods transport, making it suitable for global chemical logistics. The tank's innovative design includes a reinforced cylindrical body with a 4mm thick wall and 6mm bottom plate, capable of withstanding operating pressures up to 0.15MPa and vacuum conditions down to -0.05MPa. Equipped with a closed-top manway, bottom discharge valve, and lifting lugs, it integrates seamlessly into chemical production workflows while meeting EU 2025/351 regulations for material safety and environmental protection.

Product Features

Superior Corrosion Resistance

• 316L stainless steel construction (UNS S31603) with molybdenum addition (2-3%) for enhanced chloride resistance

• Optional Hastelloy C-276 components for highly aggressive chemicals (pH 0-14 compatibility)

• Electropolished internal surfaces (Ra 1.6μm) reducing chemical adhesion and facilitating cleaning

• Stress-relieved welds to prevent corrosion fatigue in cyclic temperature applications

Safe Handling & Transportation

• UN/DOT 31A/Y certification for transport of hazardous chemicals (PG I-III)

• Four-way forklift entry and integrated lifting lugs for multi-modal handling

• Pallet base with skid-resistant design and forklift tunnel reinforcement

• Stackable design (up to 2 units high when full) with interlocking top/bottom features

Versatile Dispensing Options

• 2" sanitary ball valve with PTFE seats for drip-free discharge

• Optional bottom outlet configurations (butterfly valve, diaphragm valve)

• Top-fill connection with flame arrester and pressure/vacuum relief valve

• Sight glass with level indicators (mechanical and optional ultrasonic)

Durable & Compliant Design

• Reinforced tank walls with 4mm thickness (6mm bottom) for impact resistance

• Epoxy-painted external surfaces (RAL 5010 blue) for weather protection

• Grounding lug for static electricity dissipation during filling/discharging

• ISO 9001:2015 quality certified with full material traceability

Applications

Industrial Chemical Storage

• Acid and alkali storage (sulfuric acid up to 70%, sodium hydroxide up to 50%)

• Solvent storage (ethanol, methanol, acetone, toluene)

• Petrochemical intermediate storage

• Inorganic salt solutions and brines

Pharmaceutical Chemicals

• API (Active Pharmaceutical Ingredient) storage

• Excipient and buffer solution storage

• Cleaning agent and sanitizer storage

• Specialty chemical intermediates

Food & Cosmetic Ingredients

• Food-grade oils and fats storage

• Concentrated flavorings and colorants

• Cosmetic base chemicals and surfactants

• Natural extracts and essences

The tank's versatility extends to both liquid and semi-viscous materials with viscosities up to 10,000 cP, with optional heating jackets available for materials requiring temperature maintenance.

FAQ

What chemical compatibility is offered?

The 316L stainless steel construction provides excellent resistance to:

• Organic acids (acetic, citric, lactic)

• Inorganic acids (phosphoric, sulfuric up to 70%)

• Alkaline solutions (sodium hydroxide up to 50%)

• Organic solvents and hydrocarbons

• Saline solutions and chlorides up to 200ppm

For stronger chemicals (hydrofluoric acid, concentrated nitric acid), optional Hastelloy components are available.

What are the dimensional specifications?

Standard dimensions for 1000L model:

• Diameter: 1200mm

• Overall height: 1450mm (including base)

• Base dimensions: 1200x1200mm

• Manway opening: 450mm diameter

• Empty weight: 220kg

1250L and 1500L models have proportional dimensions with heights of 1650mm and 1850mm respectively.

How is the tank cleaned between uses?

The tank features:

• Large 450mm manway for manual cleaning access

• Optional CIP spray ball for automated cleaning

• Sloped bottom (5°) for complete drainage

• Smooth internal surfaces minimizing residue buildup

Cleaning validation protocols are available for pharmaceutical applications.

What certifications are included?

Each tank includes:

• UN/DOT 31A/Y certification for hazardous materials transport

• Material certification (3.1.B test report for 316L stainless steel)

• Pressure test certificate (1.5x working pressure)

• EU 2025/351 compliance documentation for food contact

• ISO 9001:2015 quality assurance certificate
