A Corner of The Extraction And Concentration Workshop of A Pharmaceutical Manufacturing Company
Views: 0 Author: Site Editor Publish Time: 2025-08-12 Origin: Site
Equipment Information

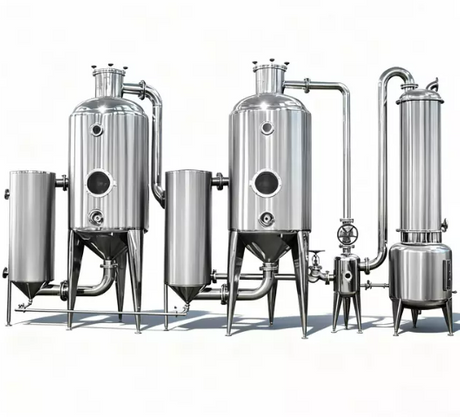

Extraction tank, storage tank, vacuum double-effect concentrator, etc.
Project Description
General Process
1. Mix the raw materials with a certain amount of solvent, heat and simmer to obtain the extract;
2. Transfer the extract to the vacuum double-effect concentrator, where the high vacuum and low boiling point principle efficiently evaporates the solvent to obtain a preliminary concentrated solution of a certain concentration;
3. Transfer the preliminary concentrated solution to the one-step granulation equipment to obtain finished powder particles, which are then sent to other workshops for further processing.
Operating Conditions
Steam, cooling water, vacuum, and power supply.
Additional Notes
This production line equipment is a customised product. The equipment specifications and dimensions can be adjusted according to the customer's production process and available space. Different materials can be selected, including 304/316L/2205/titanium, etc. Additionally, automated control components can be added based on the customer's budget.
-
